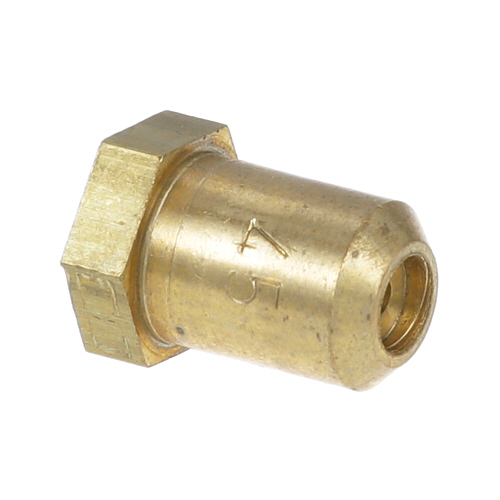

Garland M8-45 Burner Orifice #45

SKU: M8-45 1-M8-45 Brand:
Garland
Availability:
In Stock
(0)
$3.82
Have a Question? +1 (866) 863-0907

Specifications:

  • Burner Valve Hood Orifice 3/8"-27 X #45
  • Southbend Griddle Hdg, Mdg
  • Star Broiler 6000, 6100, Cb/Rcb/Cba/Rcba

Description

The Garland M8-45 Burner Orifice #45 is a gas metering component that is used in commercial cooking systems. It works by controlling the amount of fuel that passes through the gas supply to the burner to control the size of the flames and the amount of heat produced when it is in operation. This opening is fitted directly into the burner of the ranges and ovens that are compatible. It is an essential component of the gas system within the appliance and helps in the proper combustion of the gas by supplying the burner with the right quantity.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.75 in
  • Height: 0.5 in
  • Width: 0.5 in

CECILWARE:

F124A

GARLAND:

223242-45

GLASS MAID:

8-45

GRINDMASTER:

F124A

HOBART:

00-719951-00045 719951-00045 719951-45

IMPERIAL:

1700-45 2072 5119G4-45 5199G4-45 IMP1700-45 IMP5119G4-45 IMP5199G4-45

JADE RANGE:

460-209-000 460209000

SOUTHBEND:

1008745

STAR MFG:

2J-Y8838

VULCAN HART:

00-719951-00045 719951-00045 719951-45

Step1: Shut off the gas supply and allow the appliance to cool completely.

Step2: Access the burner assembly and locate the existing orifice.

Step3: Use a suitable wrench to remove the old orifice carefully.

Step4: Thread the new orifice into place without overtightening.

Step5: Test the burner for proper flame and leak-free operation.

  • What maintenance is required for the Garland M8-45 Orifice?

    Regularly check the orifice for debris, dirt, or corrosion that may block gas flow. Clean gently using appropriate tools to ensure consistent flame performance. Proper maintenance prevents uneven heating and ensures safe operation. Always turn off the gas supply before handling.

  • What are common issues with the Garland M8-45 Orifice?

    • Reduced or inconsistent flame output.
    • Clogging from dust, grease, or residue.
    • Corrosion affecting gas flow.
    • Improper seating causing operational problems.
