Star 2EZ22954 Infinite Switch

SKU: 2EZ22954 1-2EZ22954 Brand:
Star Mfg
Availability:
In Stock
(0)
$77.48 Price reduced from $109.44
Save $31.96
Have a Question? +1 (866) 863-0907

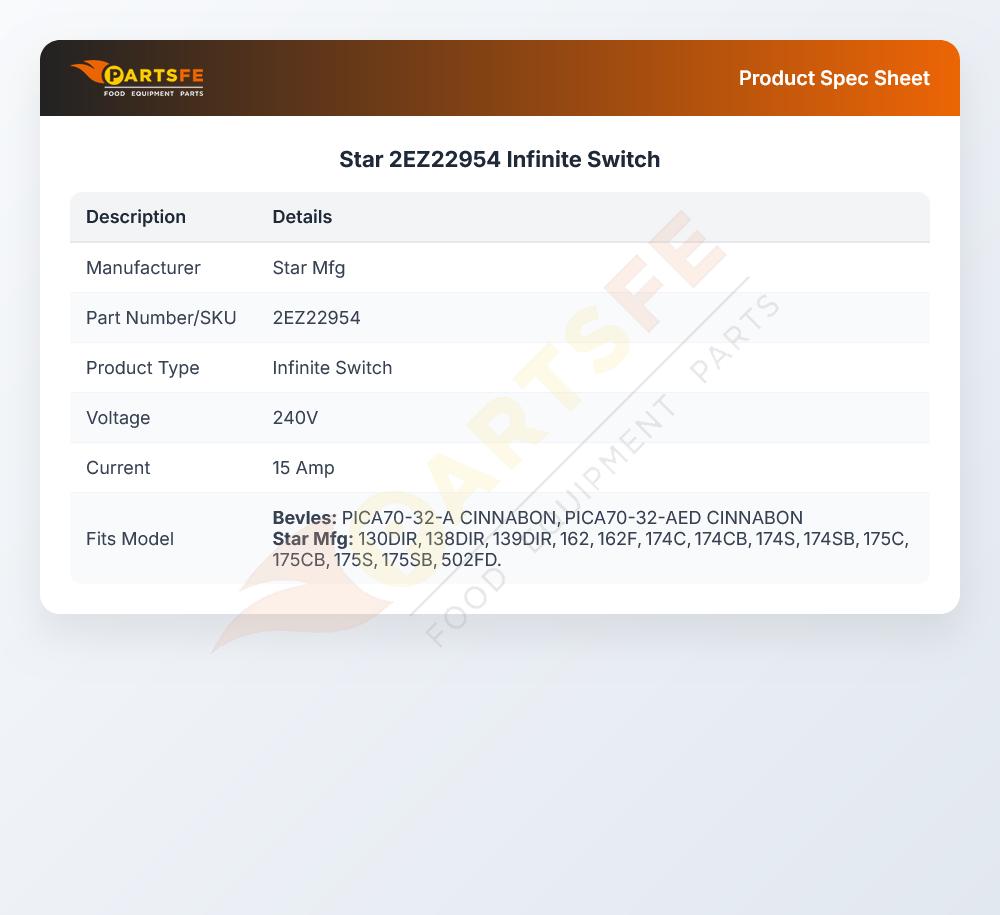

Specifications:

  • Infinite Switch, 240V, 15 Amp, Palnut Mount, Flat Up
  • Merco Dial # 22-1242
  • Star Broiler, Hot Dog Steamer Dial # 22-1260
  • Star Bun & Food Warmer Dial # 22-1349
  • Star Knob [ Off-Hi-6-2-Lo] # 22-1300
  • Eagle Metal Masters Warmer 7Qdi, 7Qt, 11Qdi, 11Qt,
  • Bm1220Fw,Lcw-120, Lcw-2-120, Tm1220Fw.
  • Series: 1200(Cwd,Fwd,Fwe), 1200Swd Fw (Prior To 1/90).
  • Hobart Model?
  • Merco Warmer All Overhead Type Warmers.
  • Star Broiler Hot Dog Broiler: 174, 175. (Not Cba, Sba).
  • Warmer 130Dir, 138Dir, 139Dir.
  • 11C-B, 174, 175, 502D, 502Ds, 502Fa, 502Fd, 502Fz, 502Z,
  • 5124Cb, 5124Cd, 5124Cz, 5136Cb, 5136Cd, 5136Cz, 7C-B

Description

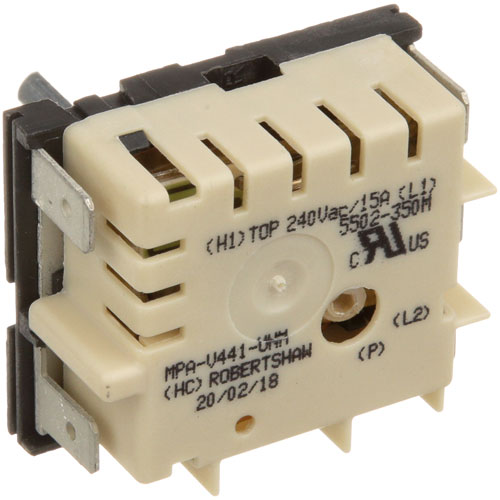

The Star Mfg 2EZ22954 Infinite Switch is a part that regulates the flow of electricity to heating elements by changing the level of resistance to enable the production of heat to be gradually increased or decreased. It works on a rotary system whereby the current is varied according to the position of the dial, allowing smooth control. It is intended to be installed behind the panels on the stoves or range controls and directly into the slot in which the switch is supposed to be placed and is wired directly to the terminals of the elements.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 1.7 in
  • Height: 2.5 in
  • Width: 1.7 in

BEVLES:

782224

CECILWARE:

L040A L040F L245A L245F

DELFIELD:

DELSEP90024 SEP90024

GRINDMASTER:

344-00055 L040A L040F L245A L245F

STAR MFG:

2E-Z21563 2E-Z22954 2J-6403 2J6403 6403

STERO:

STA2E-Z21563 STA2E-Z22954 STA2J-6403 STA2J6403 STA6403

U-LINE:

5501-350 INF240-76

Step1: Turn off power at breaker and unplug appliance to avoid shock.

Step2: Remove control knob and access rear panel screws.

Step3: Disconnect wires from old infinite switch, noting positions.

Step4: Mount new switch in same orientation.

Step5: Reconnect wires securely per original wiring diagram.

Step6: Reassemble panel, restore power, and test all heat settings carefully.

Step7: If abnormal heating or sparking occurs, disconnect power immediately and recheck connections.

  • What maintenance is required for the Star 2EZ22954 Infinite Switch?

    Regularly inspect electrical connections for tightness and signs of heat damage. Keep terminals clean and free of grease buildup to ensure stable temperature control.

  • What are common issues with the Star 2EZ22954 Infinite Switch?

    • Erratic heat output due to worn internal contacts.
    • Intermittent switching or failure to respond to dial changes.
    • Overheating from loose electrical connections.
    • Arcing at terminals.
