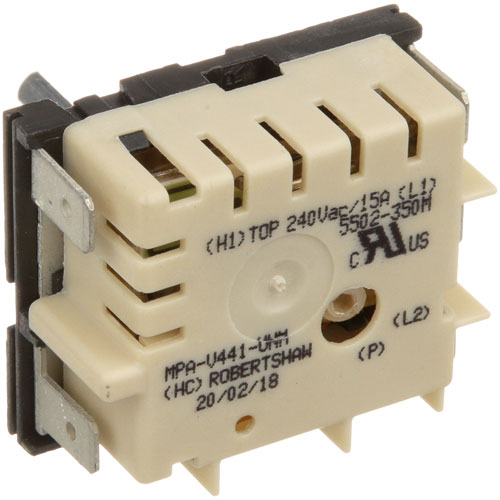

Star Mfg 2E-Z21563 Range Infinite Switch

SKU: 2E-Z21563 1-2E-Z21563 Brand:
Star Mfg
Availability:
In Stock
(0)
$77.48 Price reduced from $109.44
Save $31.96
Have a Question? +1 (866) 863-0907

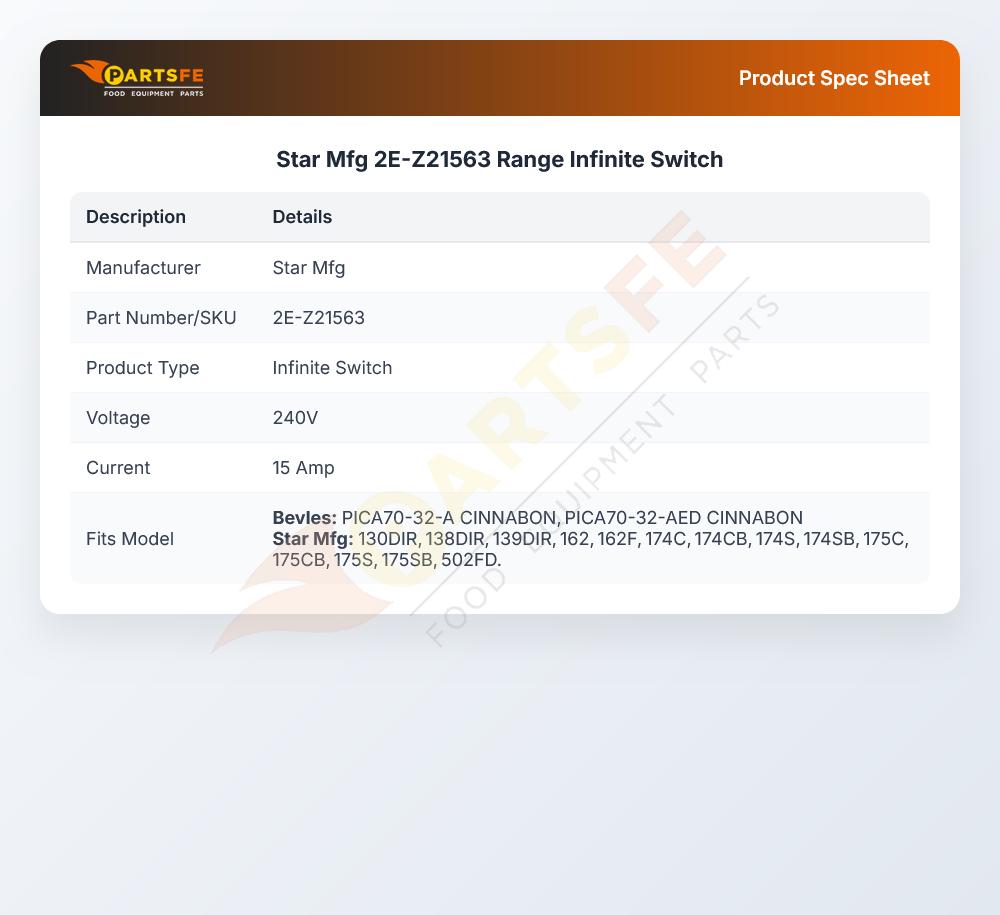

Specifications:

  • Infinite Switch, 240V, 15 Amp, Palnut Mount, Flat Up
  • Merco Dial # 22-1242
  • Star Broiler, Hot Dog Steamer Dial # 22-1260
  • Star Bun & Food Warmer Dial # 22-1349
  • Star Knob [ Off-Hi-6-2-Lo] # 22-1300
  • Eagle Metal Masters Warmer 7Qdi, 7Qt, 11Qdi, 11Qt,
  • Bm1220Fw,Lcw-120, Lcw-2-120, Tm1220Fw.
  • Series: 1200(Cwd,Fwd,Fwe), 1200Swd Fw (Prior To 1/90).
  • Hobart Model?
  • Merco Warmer All Overhead Type Warmers.
  • Star Broiler Hot Dog Broiler: 174, 175. (Not Cba, Sba).
  • Warmer 130Dir, 138Dir, 139Dir.
  • 11C-B, 174, 175, 502D, 502Ds, 502Fa, 502Fd, 502Fz, 502Z,
  • 5124Cb, 5124Cd, 5124Cz, 5136Cb, 5136Cd, 5136Cz, 7C-B

Description

The Star Mfg 2E-Z21563 Range Infinite Switch is a control that is applied in electric ranges to control heating element. It regulates the amount of heat sent to the cooktop by changing the amount of electrical current sent to the burner to enable the acuurate control of temperature during cooking. It is mounted behind the control panel of the range and used as an interface between the user and the heating element and allows easy transition between settings. Being a vital part of the range, it is stable, which promotes the work of the appliance and enables other systems, including timers and safety measures, to operate properly.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 1.7 in
  • Height: 2.5 in
  • Width: 1.7 in

BEVLES:

782224

CECILWARE:

L040A L040F L245A L245F

DELFIELD:

DELSEP90024 SEP90024

GRINDMASTER:

344-00055 L040A L040F L245A L245F

STAR MFG:

2E-Z22954 2EZ22954 2J-6403 2J6403 6403

STERO:

STA2E-Z21563 STA2E-Z22954 STA2J-6403 STA2J6403 STA6403

U-LINE:

5501-350 INF240-76

Step1: Disconnect range power at breaker, and verify no voltage.

Step2: Remove control panel knob and securing screws to access switch housing.

Step3: Note and label wire connections carefully before removal to ensure correct reassembly.

Step4: Detach old switch and mount new unit in same orientation.

Step5: Reconnect wires per labeling securely and check tight terminals.

Step6: Reassemble panel, restore power, and test heat settings carefully for proper operation.

  • What maintenance is required for the Star Mfg 2E-Z21563 Infinite Switch?

    Regularly inspect the switch terminals and wiring connections for signs of overheating, corrosion, or loose fittings. Keep the control area free from grease and moisture buildup to ensure accurate heat regulation. Verify smooth operation and disconnect power before performing any servicing.

  • What are common issues with the Star Mfg 2E-Z21563 Infinite Switch?

    • Electrical failure or intermittent heating due to worn contacts.
    • Overheating causing inconsistent temperature control.
    • Switch not responding or stuck positions.
    • Loose wiring connections leading to power loss.
    • Arcing or burnt contacts causing erratic operation.
