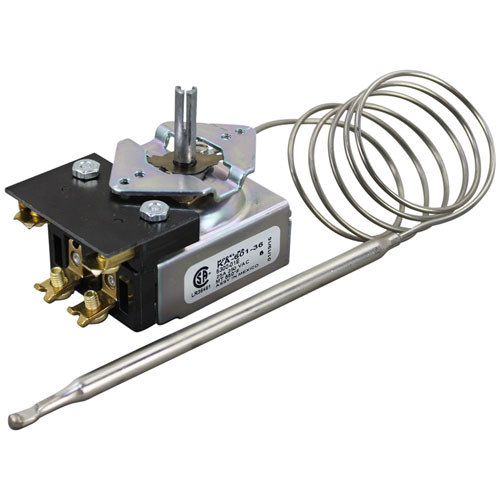

APW 2T-56527 Toaster Thermostat 4 Terminal 36" Cap 100-550°F

This is a temperature control part used in commercial toasters and warming equipment. It helps keep the heat at the right level during cooking. It works within a range of 100°F to 550°F and uses a 36-inch capillary tube with a sensing bulb (1/4" x 5-9/16") to check the temperature inside the equipment. The four-terminal setup allows strong and steady electrical connections, helping the thermostat respond quickly to temperature changes in busy kitchens. The thermostat is important for keeping the heat steady and preventing food from being overcooked or undercooked. If the thermostat stops working properly, the temperature may go up and down, which can affect food quality and equipment performance. Replacing a faulty thermostat helps bring back proper heat control, making sure the equipment works reliably in toasters, steam tables, and warmers. It can be used in different types of equipment, making it a useful part for many foodservice needs.

Equipment Compatibility:
Commonly installed for APW Toaster Thermostat applications include commercial toasters, food warmers, steam tables, and kettle cookers/warmers that need accurate temperature control. This Toaster Thermostat 2T-56527 is compatible with equipment from brands like APW Wyott, Bastian Blessing, Metal Masters, Eagle, and others, where steady temperature control is needed for proper operation.

Brand Compatibility:
Replaces thermostat parts used in equipment from brands like APW Wyott, Bastian Blessing, Metal Masters, and others. Full cross-reference details are provided separately.

Product Specifications:
Product Type: Thermostat
Manufacturer: APW
SKU: 2T-56527
Temperature Range: 100°F to 550°F
Capillary Length: 36 inches
Bulb Size: 1/4" x 5-9/16"
Terminal Configuration: 4 terminals (Type KA)

Key Features:

• Offers temperature control from 100°F to 550°F, helping manage heat for different cooking and warming tasks.
• Includes a 36-inch capillary and sensing bulb (1/4" x 5-9/16") for accurate temperature reading inside equipment.
• Uses a four-terminal design to provide secure and stable electrical connections.
• Works well with commercial toasters, warmers, and steam tables for even heating.
• Helps fix problems caused by a faulty thermostat, improving temperature consistency.
• Compatible with many APW and similar equipment systems for flexible use.

“After replacing the thermostat, the temperature control is much more stable.”

Step1: Before installation, disconnect the power and allow the toaster to cool to prevent injury.

Step2: Access the control panel to locate the thermostat assembly.

Step3: Carefully disconnect all wiring and remove the capillary bulb from its position.

Step4: Take out the old thermostat unit.

Step5: Install the new thermostat, routing the capillary tube properly.

Step6: Reconnect wiring securely.

Step7: Reassemble the panel and restore power.

Step8: Test temperature control for proper operation and ensure stable operations.

• What maintenance is required for the APW 2T-56527 Thermostat?

  Periodically check the thermostat for dust or residue on the sensing bulb and contacts. Ensure wiring connections are secure and free of corrosion. Calibration checks support maintaining accurate temperature control. Avoid exposing the unit to moisture during cleaning.

• What are common issues with the APW 2T-56527 Thermostat?

  • Inaccurate temperature readings.
  • Failure to activate heating elements.
  • Intermittent or stuck switching.
  • Loose or corroded electrical connections affecting performance.
