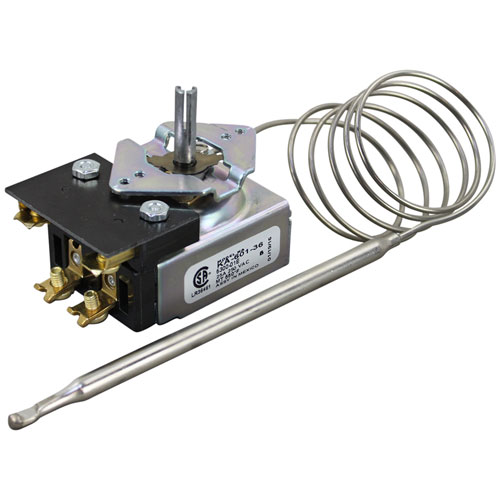

APW 56527 Toaster Thermostat 4 Terminal 36" CAP 100°-550°F
Specifications:
- Type Ka,4 Terminal- Temp 100-550, Cap 36", Bulb 1/4" X
- 5-9/16", Mt. 1
- Apw Dial # 22-1338 550-100
- Dial # 22-1219 0-10-1 For Series Tm
- Apw Toaster M-91, M-95-(2,3).
- Warmer Cwk-1 Kettle Cooker/Warmer, Hfw(1,1D,12,12D,23,23D).
- Bm-30D. Series: Bm-80 & Bw & Sm-50 & Sw & Tm-43D &
- Tm-90 & Tm-90D & Tw Needing 36" Cap.
- Bastian Blessing
- Warmer/Steam Table Vapormatic: 754, 755, 756.
- Eagle/Metal Masters Ob/Cb Cabinets
- Warmer 7Qdit, 11Qdit, 1220Cwdt & 1220Cwt (Prior To 1/90),
- Bm1200Fwt, Ht, Tm1220Fwt.
Description
Dimensions:
- Weight: 0.45 lbs
- Length: 6.5 in
- Height: 2.5 in
- Width: 2 in
Electrical Switching:
Controls the toaster's heating circuit through temperature-responsive electrical contacts. As the sensed temperature approaches the selected setting, the thermostat changes its contact state to control power supplied to the heating elements. This repeated switching action allows the thermostat to regulate heat input throughout normal toaster operation and helps prevent continuous heating or insufficient heat.
Temperature Control Range:
Provides an adjustable temperature control range of 100°F–550°F for applications requiring different operating temperatures. The selected setting establishes the temperature point at which the thermostat responds to changing heat conditions. Within this range, the thermostat repeatedly regulates the heating circuit as the sensed temperature rises and falls, supporting controlled and consistent toaster operation across different cooking requirements.
Replacement Guidelines:
Replace the Toaster Thermostat if it is damaged, worn, unresponsive, or no longer provides accurate temperature control. The part number 56527, 4 Terminal configuration, 100°F–550°F temperature range, and 36" capillary should be verified before replacement to ensure the correct thermostat is selected. Replace the thermostat if deterioration affects temperature sensing, control response, temperature regulation, or normal toaster operation.
Common Failure Symptoms:
- Inconsistent heating performance.
- Overheating during operation.
- Failure to reach the selected temperature.
- Heating elements remaining continuously energized.
- Frequent temperature fluctuations.
- Damaged or kinked sensing capillary.
Equipment Compatibility:
The APW 56527 Toaster Thermostat is intended for equipment that specifies part number. Verify part number 56527 against the existing thermostat and confirm the applicable toaster or warmer model using the equipment parts diagram, owner's manual, or manufacturer's documentation
Technical Specifications:
Manufacturer: APW
Part Number: 56527
Product Name: Hot Food Well Thermostat
Temperature Range: 100°F–550°F
Capillary Length: 36"
Appliance Type: Commercial Toaster
Configuration: KA
Step1: Unplug the toaster to prevent electrical shock.
Step2: Remove the toaster cover to access the old thermostat.
Step3: Disconnect the four terminals carefully, noting wire positions.
Step4: Unscrew and remove the old thermostat from its mount.
Step5: Install the new thermostat and reconnect all wires securely.
Step6: Reassemble the cover, plug in, and test the temperature control.
-
What maintenance is required for the APW 56527 Thermostat?
Inspect thermostat and wiring connections regularly for damage or corrosion. Test temperature settings against an accurate thermometer. Ensure capillary tube is correctly positioned, free from kinks, and clean any debris to maintain consistent and accurate toasting temperatures.
-
What are the common issues with the APW 56527 Thermostat?
- Failure to cycle heating elements properly
- Thermostat failing to connect or disconnect
- Loose or corroded terminal connections
- Uneven heating during operation.
-
What are common issues with the APW 56527 Thermostat?
- Inaccurate temperature control.
- Thermostat failing to trigger.
- Delayed heating response.
- Uneven toasting across slots.
-
What is the APW 56527 hot food well thermostat used for?
The APW 56527 regulates temperature in a compatible hot food well by controlling the heating system in response to temperature changes.
-
What role does the APW 56527 thermostat play in the heating circuit?
The thermostat acts as the temperature-responsive control point within the heating circuit, directing heating operation according to the sensed well temperature.
-
What does the 4-terminal configuration indicate on the APW 56527?
The 4-terminal configuration identifies the thermostat's electrical connection arrangement and helps buyers match the component to the required equipment configuration.
-
What should buyers verify before purchasing the APW 56527 thermostat?
Buyers should verify the hot food well application, thermostat configuration, and equipment parts information to ensure the selected component matches the intended unit.
-
Does the APW 56527 hot food well thermostat require regular maintenance?
Periodic inspection can help identify damaged terminals, wiring issues, or abnormal temperature control that may indicate the thermostat requires replacement.
Customer Reviews
Write a Review
-
Toasting Control
Improved control over toasting process. Bread and snacks cook at correct heat level.
-
Perfect Match
Perfect match, toaster functions like new again!
-
High Quality
Accurate readings, fast temperature changes
-
Very Satisfied
Reliable thermostat, consistent toast quality
-
Great quality
This thermostat is exceptionally accurate and durable. The wide temperature range meets all of my cooking needs. Definitely a worthwhile investment!
