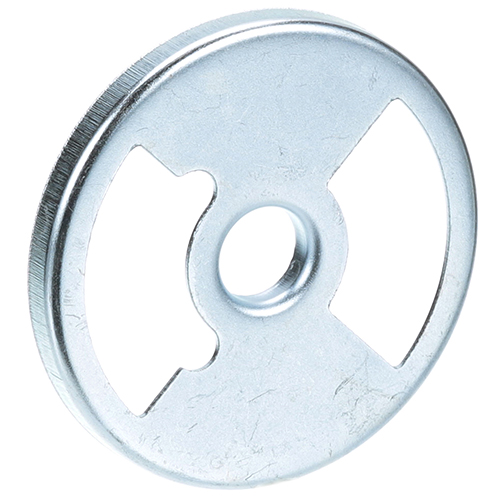

Jade Range 300126000 Oven Single Air Mixer Plate 2 Slots 2-3/16" OD 2.16" DIA Cast Iron

SKU: 300126000 1-300126000 Brand:
Jade Range
Availability:
In Stock
(1)
$7.70
Have a Question? +1 (866) 863-0907

Specifications:

  • Air Mixing Plate, Single Plate, 2 Slots,
  • .468" Orifice Hole, 2-3/16" Od
  • Fits 2.16" Dia Cast Iron Burner,
  • American Range Griddle Armg, Artg,
  • Range Ar126
  • Carter-Hoffmann
  • Dynamic Cooking Systems Broiler
  • Garland Broiler
  • Imperial Broiler Gb, Eba, Icb
  • Hotplates Ihpa, Range Ir W/O Lift Off Burner Heads.
  • Jade Broiler Jtkc, Kc
  • Rankin-Delux Hot Plate Suhp
  • Us Range Broiler/Cheesemelter C-Hds-A, Gxc
  • Wolf Broiler A, Ae, Ak, Irb-36, Rb-36,
  • Grill 18 X 24, 18 X 36, So-20B

Description

The Jade Range 300126000 Single Air Mixer Plate 2.16" DIA is a two-air mixing slots cast iron work that measures 2-3/16" outside diameter. It is intended to be operated in compatible gas ovens, and it is used in blending incoming air with fuel before combustion. The plate is placed in the burner assembly and is used to ensure the equilibrium in the distribution of flames and constant heating conditions. It assists in keeping the burner running at all times and has a particular role in ensuring the right operation of combustion in the appliance system.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2.5 in
  • Height: 0.25 in
  • Width: 2.5 in

AMERICAN RANGE:

-10464 -A14037 10464 A14037

BAKERS PRIDE:

-R3019X

DYNAMIC COOKING SYSTEMS:

-12003-2 12003-2

GARLAND:

-223005 -CK223005 223005 CK223005

HOBART:

00-719265 19265 719265

IMPERIAL:

-1007

JADE RANGE:

-30-126 -300-126-000 -300126000 -3012600000 30-126 300-126-000 3012600000

RANDELL:

RDHP-11 SUHP-05

RANKIN DELUX:

-RDHP-11 -SUHP-05 RDHP-11 SUHP-05

VULCAN HART:

-00-719265 -19265 -719265 00-719265 19265 719265

Step1: Turn off gas supply and allow burner to cool completely for safety.

Step2: Remove existing plate and clean mounting surface of debris or grease.

Step3: Align new air mixing plate over burner slots ensuring correct orientation.

Step4: Secure plate using existing fasteners, tighten evenly.

Step5: Restore gas supply and test ignition, checking flame stability and adjust air mix if needed.

Step6: Ensure no gas leaks are present before operation.

  • What maintenance is required for the Jade Range 300126000 Air Mixing Plate?

    Keep the air mixing plate clean and free from grease buildup to ensure proper airflow and combustion efficiency. Inspect regularly for corrosion or clogging. Tighten fittings securely and avoid abrasive cleaning tools that may damage surfaces.

  • What are common issues with the Jade Range 300126000 Air Mixing Plate?

    • Clogging of orifice holes reducing air-fuel mixture efficiency.
    • Uneven flame due to blocked slots or buildup.
    • Cast iron corrosion from moisture exposure.
    • Warping or cracking under extreme heat cycles conditions.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Fits Well
    Hanleigh —

    Reliable part, ensures even baking
