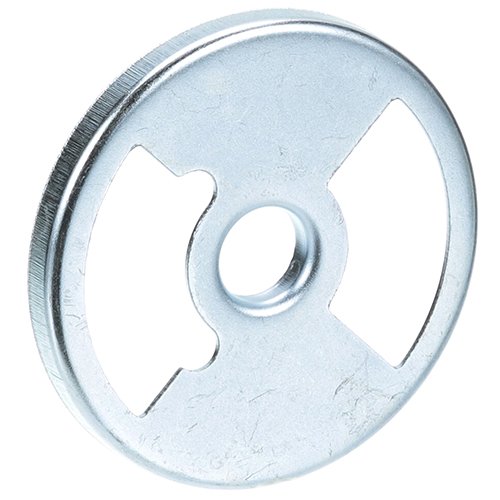

Jade Range 3012600000 Oven Single Air Mixer Plate 2 Slots 2-3/16" OD 2.16" DIA Cast Iron

SKU: 3012600000 1-3012600000 Brand:
Jade Range
Availability:
In Stock
(0)
$7.70
Have a Question? +1 (866) 863-0907

Specifications:

  • Air Mixing Plate, Single Plate, 2 Slots,
  • .468" Orifice Hole, 2-3/16" Od
  • Fits 2.16" Dia Cast Iron Burner,
  • American Range Griddle Armg, Artg,
  • Range Ar126
  • Carter-Hoffmann
  • Dynamic Cooking Systems Broiler
  • Garland Broiler
  • Imperial Broiler Gb, Eba, Icb
  • Hotplates Ihpa, Range Ir W/O Lift Off Burner Heads.
  • Jade Broiler Jtkc, Kc
  • Rankin-Delux Hot Plate Suhp
  • Us Range Broiler/Cheesemelter C-Hds-A, Gxc
  • Wolf Broiler A, Ae, Ak, Irb-36, Rb-36,
  • Grill 18 X 24, 18 X 36, So-20B

Description

The Jade Range 3012600000 Oven Single Plate Air Shutter is a two-slot cast iron component that has an outer diameter of 2-3/16" and 2.16" DIA. It also controls the air in the oven burner and controls the ratio of air and gas to ensure the combustion is proper. The air shutter is placed on the burner assembly to make the flame stable and consistent in its operation. This component is commonly fitted in commercial and domestic ovens to support them in maintaining effective burner operation, which ensures the safe operation and uniform distribution.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2.5 in
  • Height: 0.25 in
  • Width: 2.5 in

AMERICAN RANGE:

-10464 -A14037 10464 A14037

BAKERS PRIDE:

-R3019X

DYNAMIC COOKING SYSTEMS:

-12003-2 12003-2

GARLAND:

-223005 -CK223005 223005 CK223005

HOBART:

00-719265 19265 719265

IMPERIAL:

-1007

JADE RANGE:

-30-126 -300-126-000 -300126000 -3012600000 30-126 300-126-000 300126000

RANDELL:

RDHP-11 SUHP-05

RANKIN DELUX:

-RDHP-11 -SUHP-05 RDHP-11 SUHP-05

VULCAN HART:

-00-719265 -19265 -719265 00-719265 19265 719265

Step1: Turn off gas supply and allow the burner assembly to cool completely before servicing for safety.

Step2: Remove the burner components to access the venturi and air mixer area.

Step3: Take out the old air mixing plate and clean the burner base and venturi opening.

Step4: Position the new plate over the venturi, aligning slots and orifice hole correctly.

Step5: Secure with mounting screw, reassemble burner parts, and test flame for stable combustion.

  • What maintenance is required for the Jade Range 3012600000 Air Mixing Plate?

    Regularly inspect the air mixing plate for grease buildup, debris, or blockages around the slots and orifice hole. Clean it using a non-abrasive brush to maintain proper airflow and combustion efficiency. Ensure it is securely positioned during reinstallation. Always turn off gas supply before servicing.

  • What are common issues with the Jade Range 3012600000 Air Mixing Plate?

    • Blocked slots or orifice hole restricting airflow.
    • Uneven or weak flame due to improper air-gas mixing.
    • Warping or cracking from high heat exposure.
    • Corrosion or buildup affecting performance consistency.
