Delfield 3234617S Hinge

SKU: 3234617S 1-3234617S Brand:
Delfield
Availability:
In Stock
(0)
$54.98 Price reduced from $98.17
Save $43.19
Have a Question? +1 (866) 863-0907

Specifications:

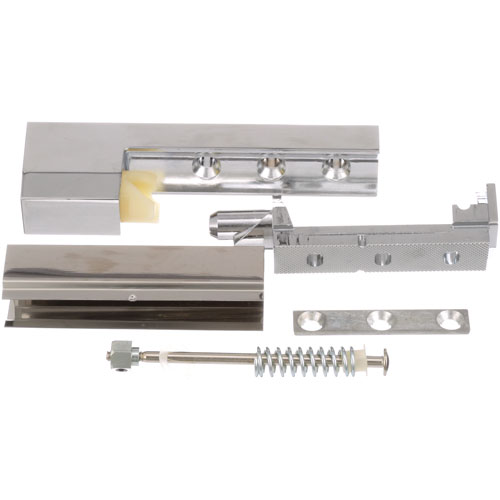

  • Spring Hinge Assembly
  • Edgemount Cam Lift Hinge, Chrome
  • 1-1/4" Offset
  • 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4"
  • Screw Centers 1-1/16"
  • Outside Mount Hole Centers 2-1/8"
  • Screws Not Included, Use #12 Or M5 Flat Head Screws.
  • Chg Series R50-2851,
  • Series 2850
  • Traulsen

Description

The Delfield 3234617S Hinge is applied to assist in supporting door movement and alignment during commercial cooking appliances. It is attached between the door and the cabinet frame and can be opened and closed under control and held in the same position. The hinge supports weight of the door, and makes sure that it is properly aligned with the gasket in order to create a proper seal when closing. It allows the door to move smoothly and avoids sagging and misalignment that may lead to air leaks during operation.

Dimensions:

  • Weight: 1.05 lbs
  • Length: 2.38 in
  • Height: 5.75 in
  • Width: 1.88 in

CHG:

CHGR50-2851 R50-2851

DELFIELD:

3234617 3234617-S 3234765 DEL3234617 DEL3234617-S DEL3234617S DEL3234765

KAIRAK:

263708 344-29021-03 SER-29021-03

STANDARD KEIL:

2851-1213-1110

TRAULSEN:

263708 344-29021-03 SER-29021-03

Step1: Support door and disconnect power to equipment.

Step2: Remove old hinge and clean mounting surface.

Step3: Align new hinge on edgemount position and mark holes.

Step4: Pre-drill pilot holes if required and secure with screws.

Step5: Tighten, check cam lift movement, and test door alignment.

  • What maintenance is required for the Delfield 3234617S Hinge?

    Clean the hinge regularly to remove grease buildup and debris that can restrict cam action. Lubricate pivot points with food-safe lubricant to ensure smooth operation. Inspect mounting screws for tightness and alignment to prevent door misalignment and stress.

  • What are common issues with the Delfield 3234617S Hinge?

    • Cam wear causing loose door alignment or sagging.
    • Binding or stiffness from grease buildup or corrosion.
    • Loose mounting hardware leading to shifting or noise.
    • Reduced pivot action causing uneven door closure.
