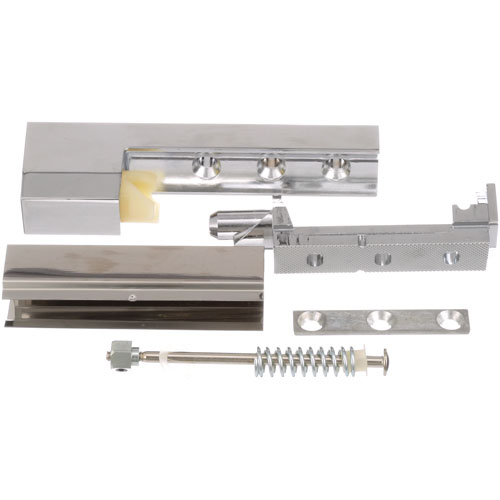

Delfield 3234765 Hinge With Spring Chrome

SKU: 3234765 1-3234765 Brand:
Delfield
Availability:
In Stock
(0)
$54.98 Price reduced from $98.17
Save $43.19
Have a Question? +1 (866) 863-0907

Specifications:

  • Spring Hinge Assembly
  • Edgemount Cam Lift Hinge, Chrome
  • 1-1/4" Offset
  • 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4"
  • Screw Centers 1-1/16"
  • Outside Mount Hole Centers 2-1/8"
  • Screws Not Included, Use #12 Or M5 Flat Head Screws.
  • Chg Series R50-2851,
  • Series 2850
  • Traulsen

Description

The Delfield 3234765 Hinge With Spring Chrome is a hinge that allows the door to move with a pivoting cam lift design that assists in raising the door a bit when opening and closing it. This hinge is attached to the edge of compatible refrigeration or foodservice equipment doors, and is used to join the door and the unit structure. It works as the mechanical joint that allows the movement of the door to move in a controlled and balanced manner.

Dimensions:

  • Weight: 1.05 lbs
  • Length: 2.38 in
  • Height: 5.75 in
  • Width: 1.88 in

CHG:

CHGR50-2851 R50-2851

DELFIELD:

3234617 3234617-S 3234617S DEL3234617 DEL3234617-S DEL3234617S DEL3234765

KAIRAK:

263708 344-29021-03 SER-29021-03

STANDARD KEIL:

2851-1213-1110

TRAULSEN:

263708 344-29021-03 SER-29021-03

Step1: Ensure equipment is powered off and door is properly supported to prevent injury wear gloves

Step2: Remove existing hinge and clean mounting surface

Step3: Align hinge with mounting holes and install screws securely

Step4: Verify cam lift orientation and test door movement

Step5: Tighten all hardware and confirm smooth operation; avoid pinching hazards.

  • What maintenance is required for the Delfield 3234765 Cam Lift Hinge?

    Keep hinge clean and free of grease buildup to ensure smooth cam lift action. Apply light food-safe lubricant to moving parts regularly. Inspect for looseness and tighten mounting screws to maintain proper door alignment.

  • What are common issues with the Delfield 3234765 Cam Lift Hinge?

    • Cam lift damage causing uneven door movement.
    • Loose mounting screws leading to door sagging.
    • Corrosion or debris buildup restricting hinge operation.
    • Misalignment causing improper sealing and air leakage.
    • Excessive friction causing stiff operation.
