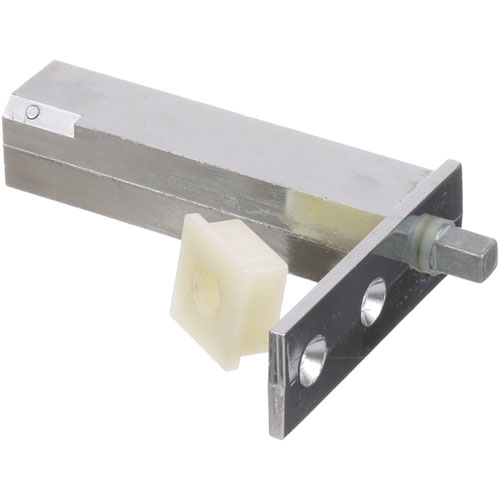

Delfield 3237516 Concealed Cartridge Door Hinge Assembly W/Extended Pin

SKU: 3237516 1-3237516 Brand:
Delfield
Availability:
In Stock
(0)
$14.44 Price reduced from $59.00
Save $44.56
Have a Question? +1 (866) 863-0907

Specifications:

  • Concealed Hinge, W/Extended Pin, No Stop.
  • Reversible Cartridge
  • Delfield 4427N, 4427N-6, 4427N-9M, 4432N, 4432N-12M, 4448N,
  • 4448N-12, 4448N-18M, 4448N-8, 4460N, 4460N-12, 4460N-12M,
  • 4460N-18M, 4460N-24M, 4460N-8, 4462N-18M, 4464N, 4464N-12,
  • 4464N-12M, 4464N-16, 4464N-24M, 4464N-30M, 4464N-8, 4472N,
  • 4472N-12, 4472N-18M, 4472N-24M, 4560N, 6025Xl-S, 6025Xl-Sh,
  • 6051Xl-S, 6051Xl-Sh, 6076Xl-S, 6076Xl-Sh, 6125Xl-S,
  • 6125Xl-Sh, 6151Xl-S, 6176Xl-S, 6176Xl-Sh, D4427N, D4432N,
  • D4448N, D4448N-18M, D4460N, D4464N, D4472N, St4427N,
  • St4432N, St4448N, St4460N, St4464N, St4472, St4472N,
  • St4560N, Std4427N, Std4432N, Std4448N, Std4460N, Std4464N,
  • Std4472N, Uc4048, Uc4148, Uc4427N, Uc4432N, Uc4448N,
  • Uc4460N, Uc4464N, Uc4472, Uc4472N, Uc4560N, Ucd4427N,
  • Ucd4432N, Ucd4448N, Ucd4460N, Ucd4464N, Ucd4472N

Description

The Delfield 3237516 Concealed Hinge with Extended Pin is installed between the cabinet frame and the door to enable the gate to pivot without the hardware of the hinge being visible. The long pin provides it the required length and positioning in the entrance assembly. This is a lock that fits into compatible foodservice units at the edge of the opening and is placed in the joint between the cabinet and the panel. It serves as the mechanical linkage that allow the window to be opened and closed in a controlled manner.

Dimensions:

  • Weight: 0.5 lbs
  • Length: 4.63 in
  • Height: 1 in
  • Width: 3 in

DELFIELD:

000BFW0030 3230010 3234225 3237509 3237516-S 3237516S DEL3230010 DEL3234225 DEL3237509 DEL3237516 DEL3237516-S DEL3237516S

Step1: Disconnect power and remove the door for safe access.

Step2: Align hinge on cabinet frame and mark mounting points.

Step3: Pre-drill holes carefully to avoid damaging cabinet material.

Step4: Secure hinge using screws and ensure tight fit.

Step5: Attach door, insert extended pin, and check alignment.

Step6: Test swing motion; adjust if necessary for smooth operation.

Step7: Wear gloves and support door weight during installation always.

  • What maintenance is required for the Delfield 3237516 Hinge Extended Pin?

    Keep hinge clean and free of grease buildup. Inspect the extended pin for wear or misalignment regularly. Tighten mounting screws periodically to maintain alignment. Lubricate moving parts lightly to ensure smooth door operation and reduce friction damage.

  • What are common issues with the Delfield 3237516 Hinge Extended Pin?

    • Pin wear causing door misalignment.
    • Hinge loosening under frequent use.
    • Binding or stiffness from debris buildup.
    • Excessive noise during door movement.
    • Pin loosening or detachment over time.
    • Uneven door closing alignment shift.
