Delfield 3237516-S Concealed Cartridge Door Hinge Assembly W/Extended Pin

SKU: 3237516-S 1-3237516-S Brand:
Delfield
Availability:
In Stock
(0)
$14.44 Price reduced from $59.00
Save $44.56
Have a Question? +1 (866) 863-0907

Specifications:

  • Concealed Hinge, W/Extended Pin, No Stop.
  • Reversible Cartridge
  • Delfield 4427N, 4427N-6, 4427N-9M, 4432N, 4432N-12M, 4448N,
  • 4448N-12, 4448N-18M, 4448N-8, 4460N, 4460N-12, 4460N-12M,
  • 4460N-18M, 4460N-24M, 4460N-8, 4462N-18M, 4464N, 4464N-12,
  • 4464N-12M, 4464N-16, 4464N-24M, 4464N-30M, 4464N-8, 4472N,
  • 4472N-12, 4472N-18M, 4472N-24M, 4560N, 6025Xl-S, 6025Xl-Sh,
  • 6051Xl-S, 6051Xl-Sh, 6076Xl-S, 6076Xl-Sh, 6125Xl-S,
  • 6125Xl-Sh, 6151Xl-S, 6176Xl-S, 6176Xl-Sh, D4427N, D4432N,
  • D4448N, D4448N-18M, D4460N, D4464N, D4472N, St4427N,
  • St4432N, St4448N, St4460N, St4464N, St4472, St4472N,
  • St4560N, Std4427N, Std4432N, Std4448N, Std4460N, Std4464N,
  • Std4472N, Uc4048, Uc4148, Uc4427N, Uc4432N, Uc4448N,
  • Uc4460N, Uc4464N, Uc4472, Uc4472N, Uc4560N, Ucd4427N,
  • Ucd4432N, Ucd4448N, Ucd4460N, Ucd4464N, Ucd4472N

Description

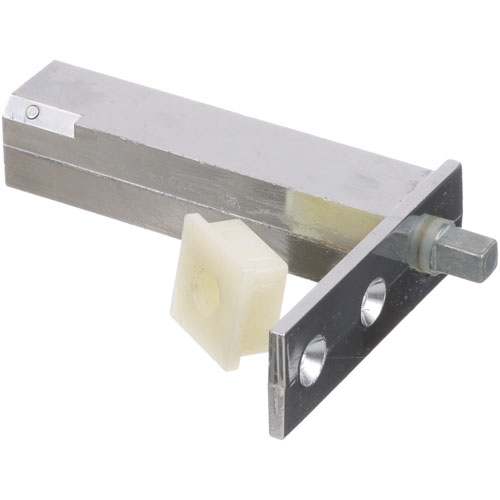

The Delfield 3237516-S Concealed Cartridge Door Hinge Assembly With Extended Pin works with the support of the internal spring mechanism that is placed in a cylindrical housing to ensure the movement of the gate. The part is fitted into the gate frame and edge and cannot be seen when the unit is closed. This is a commercial cooling appliance designed to fit in commercial chilling units that require a flush exterior form. Integration is the process of ensuring the cartridge is locked into pre-drilled holes so as to ensure the seal is consistent and the structure is well balanced.

Dimensions:

  • Weight: 0.5 lbs
  • Length: 4.63 in
  • Height: 1 in
  • Width: 3 in

DELFIELD:

000BFW0030 3230010 3234225 3237509 3237516 3237516S DEL3230010 DEL3234225 DEL3237509 DEL3237516 DEL3237516-S DEL3237516S

Step1: Turn off appliance power and support the door to prevent drop before starting.

Step2: Remove existing hinge hardware carefully using correct driver.

Step3: Position concealed hinge on door and cabinet frame alignment points.

Step4: Insert extended pin then fasten screws securely without over-tightening.

Step5: Tighten all fittings, check smooth door movement and adjust.

Step6: Wear gloves and ensure door is supported throughout installation for safety.

  • What maintenance is required for the Delfield 3237516-S Concealed Hinge With Extended Pin?

    Regularly inspect the hinge for loosened screws, wear, and misalignment. Apply food-grade lubricant to moving parts to ensure smooth operation. Keep the hinge clean from grease and debris buildup. Tighten mounting hardware periodically to maintain proper door alignment and operation.

  • What are common issues with the Delfield 3237516-S Concealed Hinge With Extended Pin?

    • loose hinge pins causing door to sag.
    • misalignment leading to improper sealing.
    • squeaking or stiff movement during operation.
    • corrosion in high-moisture conditions.
    • worn pivot points causing instability.
    • noise under load conditions.
