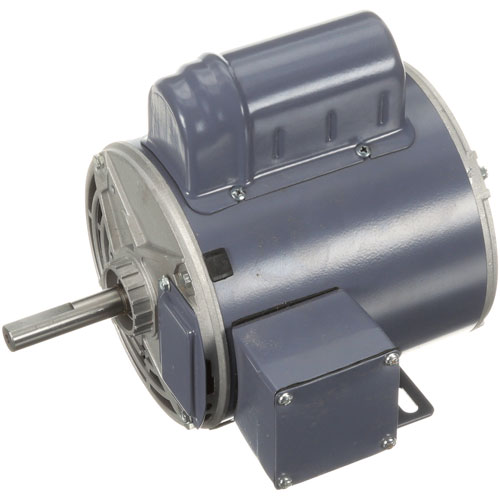

Hobart 3585161 2-Speed Motor 1/3HP 1725/1140 RPM 5.6/2.2 AMP 115V 1PH

SKU: 3585161 1-3585161 Brand:
Hobart
Availability:
In Stock
(0)
$424.35 Price reduced from $665.13
Save $240.78
Have a Question? +1 (866) 863-0907

Specifications:

  • 2 Speed Motor,
  • [ 115V, ] [ 1/3Hp ] [1P ] [1725/1140 RPM ] [5.6/2.2Amp ]
  • [Cw Rotation Looking From The Rear Of The Motor ]
  • [ 5/8" X 2-3/4" Shaft ]
  • Hobart & Vulcan Blower Wheels:
  • Flat Back, 9-7/8" Dia. 1-5/8"W, # 26-1468 Or
  • Concave Back. 9-7/8" Dia. 1-5/8"W, # 26-2287
  • Either Should Work.
  • Wolf Blower Wheel Concave Back, 9-7/8" Dia. 2-5/8"W,
  • # 26-1469
  • Hobart Oven Hgc40
  • Vulcan Oven Sg4(C,D), Sg6(C,D), Gco(4D,6D,4S,44S),
  • Gdo(4S,44S) Vc4G(S,D), Vc6G(S,D)
  • Wolf Wkgd

Description

The Hobart 3585161 2-Speed Motor 1/3HP operates by converting electrical energy into mechanical rotation, to drive compatible foodservice equipment at two selectable speeds. The motor runs at 1725 or 1140 RPM, depending on the operating requirement while drawing 5.6 or 2.2 amps on a 115V single-phase power supply. It operates by putting internal, windings on the shaft to attain a controlled shaft rotation enabling a choice of higher and lower speed production. It is connected to the drive assembly of the equipment it is compatible with and connected to mounting points with electrical connections routed into the control circuit.

Dimensions:

  • Weight: 24.3 lbs
  • Length: 15.95 in
  • Height: 10.4 in
  • Width: 11 in

HOBART:

00-355000-00001 00-358516-00001 355000-00001 355000-1 358516-00001 358516-1

VULCAN HART:

00-355000-00001 00-358516-00001 355000-00001 355000-1 358516-00001 358516-1 VH358516-1
