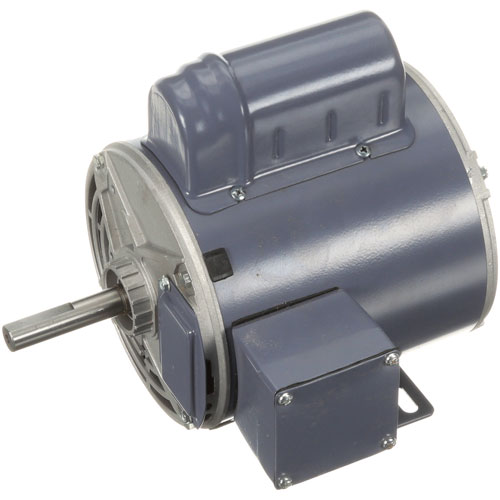

Vulcan Hart 00-358516-00001 Oven 1/3HP 2-Speed Motor 1-P 1725/1140 RPM 5.6/2.2AMP 115V
Specifications:
- 2 Speed Motor,
- [ 115V, ] [ 1/3Hp ] [1P ] [1725/1140 RPM ] [5.6/2.2Amp ]
- [Cw Rotation Looking From The Rear Of The Motor ]
- [ 5/8" X 2-3/4" Shaft ]
- Hobart & Vulcan Blower Wheels:
- Flat Back, 9-7/8" Dia. 1-5/8"W, # 26-1468 Or
- Concave Back. 9-7/8" Dia. 1-5/8"W, # 26-2287
- Either Should Work.
- Wolf Blower Wheel Concave Back, 9-7/8" Dia. 2-5/8"W,
- # 26-1469
- Hobart Oven Hgc40
- Vulcan Oven Sg4(C,D), Sg6(C,D), Gco(4D,6D,4S,44S),
- Gdo(4S,44S) Vc4G(S,D), Vc6G(S,D)
- Wolf Wkgd
Description
Dimensions:
- Weight: 24.3 lbs
- Length: 15.95 in
- Height: 10.4 in
- Width: 11 in
Convection Air Movement:
Drives the blower fan to circulate heated air throughout the oven cavity during convection cooking. The motor converts electrical energy into rotational motion, allowing the blower fan to move heated air evenly around the cooking chamber. This continuous airflow helps maintain consistent heat distribution, reduces localized hot and cool areas, and supports uniform cooking performance throughout the operating cycle.
Replacement Guidelines:
Replace the convection oven blower motor kit when wear, physical damage, deterioration, or electrical failure affects its ability to maintain the intended air circulation. The part number 00-358516-00001 should be verified before replacement to ensure the correct motor kit is selected. Replace the component when its condition affects airflow, motor response, or its intended function within the oven circulation system.
Common Failure Symptoms:
- Blower does not operate during the convection cycle.
- Air circulation inside the oven is reduced or absent.
- Blower operation becomes inconsistent.
- Motor produces unusual operating noise.
- Heat distribution within the oven becomes uneven.
Equipment Compatibility:
The Vulcan Hart 00-358516-00001 Convection Oven Blower Motor Kit 2-Speed 115V 1PH 50/60Hz is designed for compatible Vulcan Hart convection ovens. Verify the equipment model number, manufacturer part number, voltage rating, and blower motor specifications before purchasing to ensure the correct application.
Technical Specifications:
Manufacturer: Vulcan Hart
Part Number: 00-358516-00001
Product Name: Blower Motor Kit
Appliance Type: Commercial Convection Oven
Motor Type: 2-Speed
Voltage: 115V
Phase: 1PH
Frequency: 50/60Hz
Step1: Turn off breaker and unplug oven for safety.
Step2: Remove access panel to expose the motor assembly.
Step3: Disconnect wiring and loosen blower wheel from motor shaft.
Step4: Remove mounting bolts and take out the old motor.
Step5: Install the new motor, secure bolts, and reconnect wiring.
Step6: Reassemble panels, restore power, and verify proper motor operation.
-
Are the payment options secured?
Yes we provide 100% secure and safe payments.
-
Is the motor 00-358516-00001 suitable for heavy-duty use?
The suitability for heavy-duty use depends on the specifications of your equipment and its intended applications. Consult the product manual and Vulcan Hart's guidelines to determine its suitability.
-
What is the Vulcan Hart motor 00-358516-00001 used for?
The Vulcan Hart motor 00-358516-00001 is used in various commercial kitchen equipment, such as ovens, ranges, or mixers. It plays a crucial role in powering specific functions of the equipment.
-
What maintenance is required for the Vulcan Hart 00-358516-00001 Motor?
Regularly clean the motor exterior and vents to prevent dust buildup, which can cause overheating. Lubricate bearings per manufacturer guidelines to ensure smooth operation. Inspect wiring and connections for damage, and always disconnect power before maintenance for safety. Check for unusual vibrations as early signs of motor issues.
-
What are the common issues with the Vulcan Hart 00-358516-00001 Motor?
- Motor fails to start or stalls
- Unusual humming or vibration
- Reduced speed or inconsistent operation
- Overheating during extended use.
-
What type of component is the Vulcan Hart 00-358516-00001?
It is a convection oven blower motor kit designed for compatible Vulcan Hart oven configurations.
-
What voltage is specified for this blower motor kit?
The Vulcan Hart 00-358516-00001 blower motor kit is specified for 120V operation, identifying the electrical input required for its designated configuration.
-
What does the blower motor kit drive?
The motor kit supplies rotational motion to the connected convection oven blower assembly, allowing the blower to operate and circulate air through the oven according to its designated airflow arrangement.
-
How does the motor kit support convection oven operation?
It operates the blower assembly, enabling air to circulate through the oven cavity according to the equipment's airflow arrangement.
-
What should be checked when identifying this blower motor kit?
The part number, oven model, motor kit configuration, voltage, and blower assembly requirements should be checked against the applicable equipment information.
