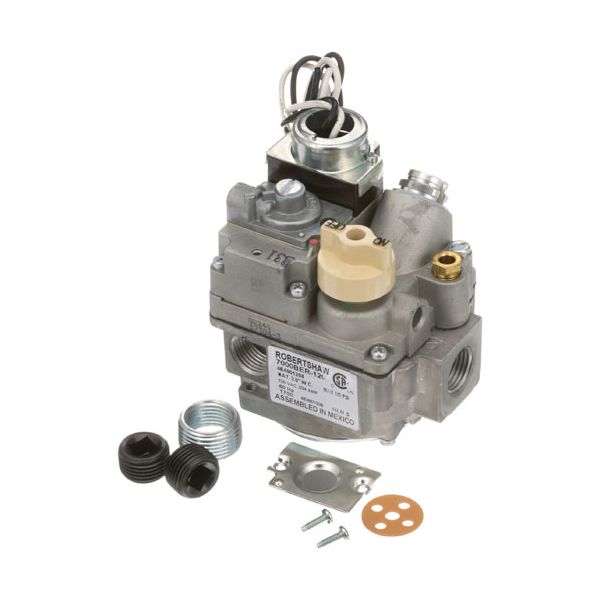

Hobart 40126-11 Safety Control Valve NG 1/2" FPT IN X 3/4" FPT Out 120V
Special Price $216.60 Regular Price $333.75
In stock
SKU
40126-11
Manufacturer:
The Hobart 40126-11 Safety Control Valve NG 1/2" FPT IN X 3/4" FPT Out 120V regulates the supply of natural gas by controlling its passage to the burner assembly during equipment operation. It works through interaction with the appliance's pilot system, maintaining gas flow while the required operating conditions are reached. If the pilot signal is interrupted, it stops the movement of gas through the line. Its connection allows use with designated gas piping arrangements used in compatible equipment. It is positioned within the gas control section of a commercial cooking system to support ignition processes, active heating cycles, and gas shutoff procedures throughout operation.
Dimensions
- Length: 5.75 In
- Width: 4.75 In
- Height: 3.5 In
- Weight: 2.282 lbs
Product Notes
- Nat Gas Safety, 1/2" Fpt In, 3/4" & 1/2" Out. W/ (2) 1/2"
- Side Outs W/ Plugs, 3/4" X 1/2" Reducer Bushings,
- 1/4" Cct Pilot Out, Uses Thermocouple.
- For Nat To Lp Gas Conversion Kit Use # 51-1470
- Model 7000 Ber-120, 120 Vac Actuator, Mfg# 700-452
- Dean Fryer 1824/2424G, 1824G, 2424G, D20, D50,
- D50G, D50Gdd, D60, D60Gs, D80, Fpd65, Fphd65, Tb14
- Henny Penny Fryer 600, Og- 301,302,303
- Market Forge Oven 2500, 2700
- Gas Tilt Skillet 1500 1700,
- Southbend Kettle Kslg W/Standing Pilot. Oven X,Xs
- Vulcan Tilt Skillets Model E-30-C, E-30-O, E-40-C, E-40-O,
- G-30-C,G-30-O, G-40-C, G-40-O
