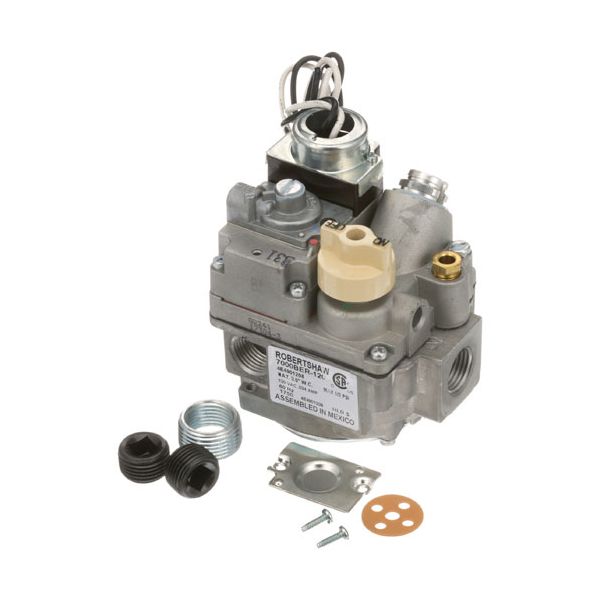

Hobart 40343-A02 Safety Control Valve NG 1/2" FPT IN X 3/4" FPT Out 120V
Special Price $216.60 Regular Price $333.75
In stock
SKU
40343-A02
Manufacturer:
The Hobart 40343-A02 Safety Control Valve NG 1/2" FPT IN X 3/4" FPT Out 120V controls the timing and direction of natural gas movement with commercial systems. It operates by coordinating with the units' protection and pilot parts to determine when gas should be supplied to the burner system. If the operating signal is discontinued, it closes to halt gas transmission through the connected circuit. Its side outlet arrangement supports integration with designated internal gas channels. It is mounted in the gas management section of commercial cooking equipment, where it provides burner activation, operating adjustments, and shutdown procedures.
Dimensions
- Length: 5.75 In
- Width: 4.75 In
- Height: 3.5 In
- Weight: 2.282 lbs
Product Notes
- Nat Gas Safety, 1/2" Fpt In, 3/4" & 1/2" Out. W/ (2) 1/2"
- Side Outs W/ Plugs, 3/4" X 1/2" Reducer Bushings,
- 1/4" Cct Pilot Out, Uses Thermocouple.
- For Nat To Lp Gas Conversion Kit Use # 51-1470
- Model 7000 Ber-120, 120 Vac Actuator, Mfg# 700-452
- Dean Fryer 1824/2424G, 1824G, 2424G, D20, D50,
- D50G, D50Gdd, D60, D60Gs, D80, Fpd65, Fphd65, Tb14
- Henny Penny Fryer 600, Og- 301,302,303
- Market Forge Oven 2500, 2700
- Gas Tilt Skillet 1500 1700,
- Southbend Kettle Kslg W/Standing Pilot. Oven X,Xs
- Vulcan Tilt Skillets Model E-30-C, E-30-O, E-40-C, E-40-O,
- G-30-C,G-30-O, G-40-C, G-40-O
