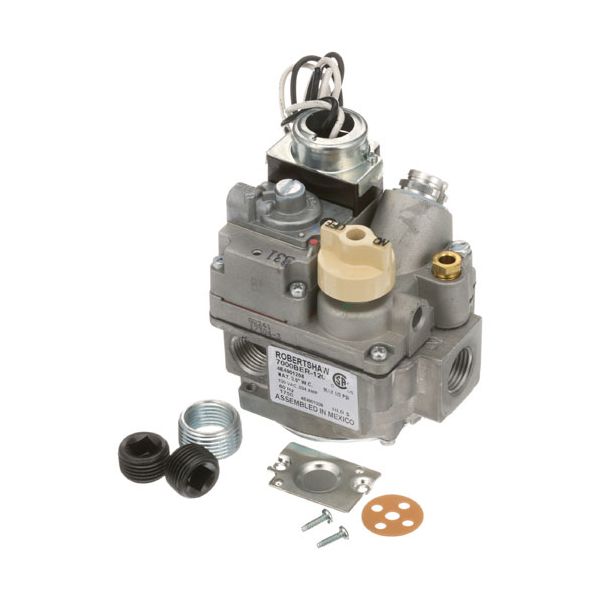

Blodgett 43019 Safety Control Valve NG 1/2" FPT IN X 3/4" FPT Out 120V
Special Price $216.60 Regular Price $333.75
In stock
SKU
43019
Manufacturer:
The Blodgett 43019 Safety Control Valve NG 1/2" FPT IN X 3/4" FPT Out 120V controls gas flow using an electrically actuated mechanism that adjusts to the cooking operation cycle. When activated with a signal, the valve permits natural gas to travel toward the burner assembly to support heating operations. Once the signal is removed, it returns to a closed position to discontinue gas movement. The side outlet arrangement provides an additional gas routing point within the internal piping system. It is inserted in compatible equipment as part of the gas control system controlling burner operation.
Dimensions
- Length: 5.75 In
- Width: 4.75 In
- Height: 3.5 In
- Weight: 2.282 lbs
Product Notes
- Nat Gas Safety, 1/2" Fpt In, 3/4" & 1/2" Out. W/ (2) 1/2"
- Side Outs W/ Plugs, 3/4" X 1/2" Reducer Bushings,
- 1/4" Cct Pilot Out, Uses Thermocouple.
- For Nat To Lp Gas Conversion Kit Use # 51-1470
- Model 7000 Ber-120, 120 Vac Actuator, Mfg# 700-452
- Dean Fryer 1824/2424G, 1824G, 2424G, D20, D50,
- D50G, D50Gdd, D60, D60Gs, D80, Fpd65, Fphd65, Tb14
- Henny Penny Fryer 600, Og- 301,302,303
- Market Forge Oven 2500, 2700
- Gas Tilt Skillet 1500 1700,
- Southbend Kettle Kslg W/Standing Pilot. Oven X,Xs
- Vulcan Tilt Skillets Model E-30-C, E-30-O, E-40-C, E-40-O,
- G-30-C,G-30-O, G-40-C, G-40-O
