Jade Range 460-251-000 Ignition Control Box 24V

SKU: 460-251-000 1-460-251-000 Brand:
Jade Range
Availability:
In Stock
(0)
$151.11 Price reduced from $320.15
Save $169.04
Have a Question? +1 (866) 863-0907

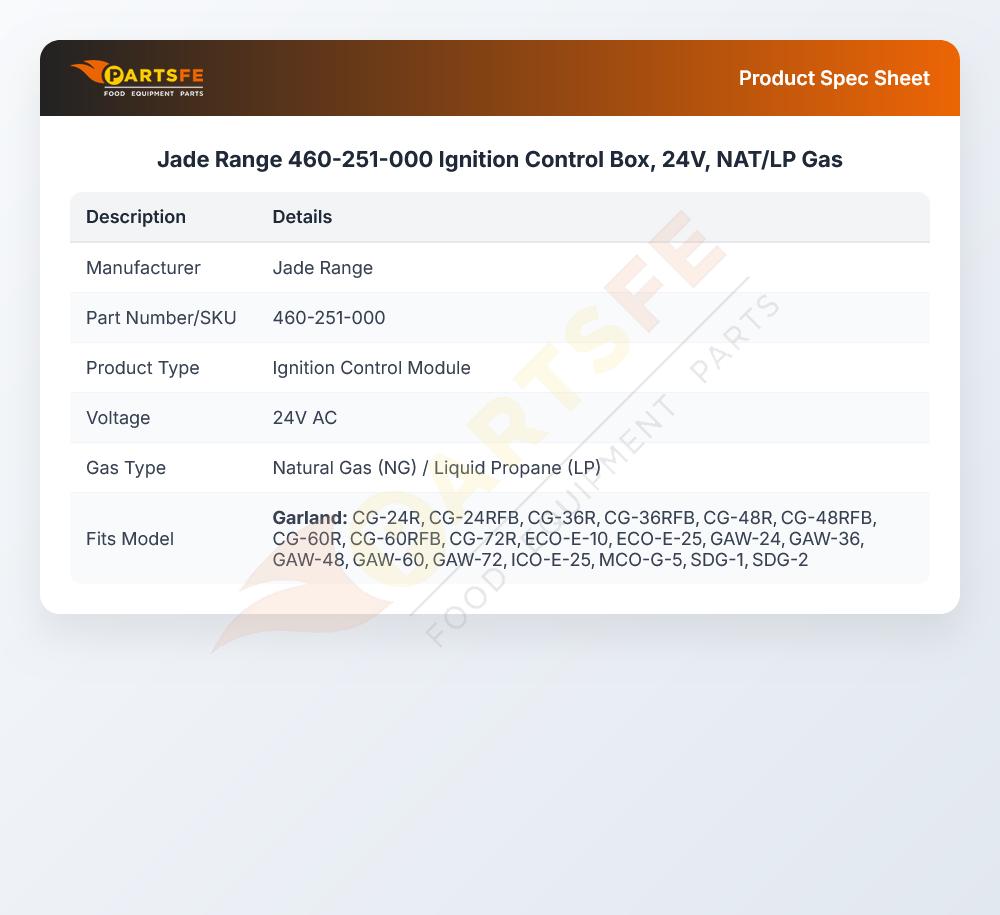

Specifications:

  • Black Baso Ignition Control Box.
  • Ign Module 24V, Nat/Lp Gas, ( Replaces Old # G770Mga-2 ),
  • 0 Sec Prepurge, 50 Sec Trial, No Retry, Inter-Purge 15 Sec.
  • Old Spark Post Ignition Cable Use # 38-1339
  • Includes Adaptor, Round Post To 1/4" Female Tab Term,
  • # 85-1071.
  • Garland Oven All Convection Ovens With Lp Gas & Electronic
  • Ignition. R280, Master Series, Cg-24R, Cg-36R, Cg-48R,
  • Cg-60R, Cg-72R, Eco-E-10, Eco-E-25, Gaw-24, Gaw-36, Gaw-48,
  • Gaw-60, Gaw-72, Ico-E-10, Ico-E-25, Mco-G-5 (Except
  • Foreign Units).
  • Us Range Oven Sdg-1, Sdg-2 Lp Units

Description

The Jade Range 460-251-000 Ignition Control Box 24V is an electrical ignition control used with compatible commercial gas cooking equipment. It is installed within the equipment control assembly where it manages the electrical sequence required for burner ignition. The control box receives signals from the operating controls and activates the connected ignition circuit according to the ignition sequence. It works with the gas valve, ignition parts, and safety controls to coordinate burner startup. The control box provides the electrical switching required to initiate the process and supports controlled burner operation within the designated gas system.

Dimensions:

  • Weight: 0.62 lbs
  • Length: 3.13 in
  • Height: 7 in
  • Width: 5.13 in

GARLAND:

1516300 1781901 2152700 4528856 4529434 4602647

JADE RANGE:

460251000 4625100000
