Jade Range 4625100000 Oven NAT/LP Gas Ignition Control Box 24V

SKU: 4625100000 1-4625100000 Brand:
Jade Range
Availability:
In Stock
(1)
$151.11 Price reduced from $320.15
Save $169.04
Have a Question? +1 (866) 863-0907

Specifications:

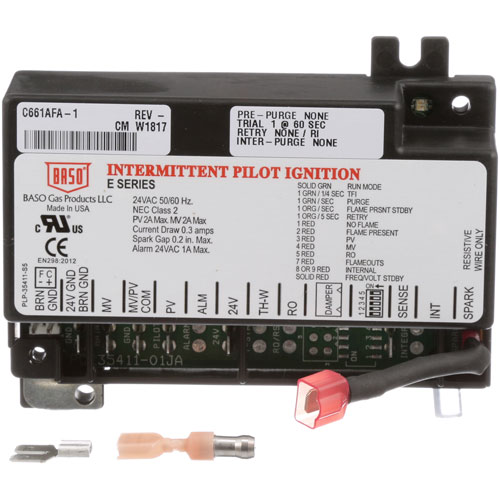

  • Black Baso Ignition Control Box.
  • Ign Module 24V, Nat/Lp Gas, ( Replaces Old # G770Mga-2 ),
  • 0 Sec Prepurge, 50 Sec Trial, No Retry, Inter-Purge 15 Sec.
  • Old Spark Post Ignition Cable Use # 38-1339
  • Includes Adaptor, Round Post To 1/4" Female Tab Term,
  • # 85-1071.

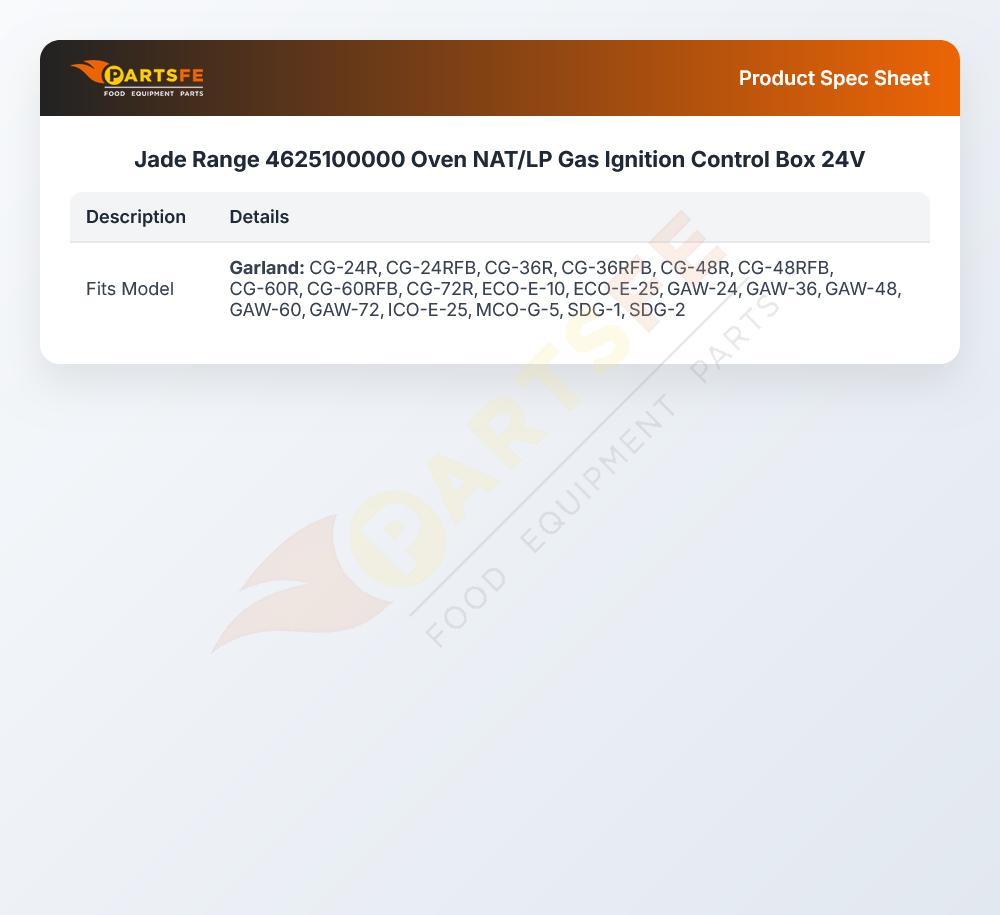

  • Garland Oven All Convection Ovens With Lp Gas & Electronic
  • Ignition. R280, Master Series, Cg-24R, Cg-36R, Cg-48R,
  • Cg-60R, Cg-72R, Eco-E-10, Eco-E-25, Gaw-24, Gaw-36, Gaw-48,
  • Gaw-60, Gaw-72, Ico-E-10, Ico-E-25, Mco-G-5 (Except
  • Foreign Units).
  • Us Range Oven Sdg-1, Sdg-2 Lp Units

Description

The Jade Range 4625100000 NAT/LP Gas Ignition Control Box is an component that is suitable for 24V natural or propane gas ovens. It replaced the previous model G770MGA-2, with 0 second prepurge, 50 second trial time, no retry, and 15 second inter-purge. Designed for US Range ovens and Garland, it aids the following models: Master Series, ECO-E-10, and MCO-G-5. The unit also comes with an adaptor to make it fit perfectly to the existing system. This ignition control box improves safety, performance and convenience making it a must for accurate and consistent oven ignition.

Dimensions:

  • Weight: 0.62 lbs
  • Length: 3.13 in
  • Height: 7 in
  • Width: 5.13 in

GARLAND:

1516300 1781901 2152700 4528856 4529434 4602647

JADE RANGE:

460-251-000 460251000

Step1: Turn off the oven and disconnect electrical and gas supplies before servicing.

Step2: Allow the unit to cool completely, then remove the access panel to reach the ignition control box.

Step3: Label and disconnect all wiring connections from the old ignition module.

Step4: Remove the mounting hardware and install the new control box securely in the same position.

Step5: Reconnect all wires and ignition leads according to the original configuration.

Step6: Restore gas and power, then test the ignition cycle for proper burner startup and flame control.

  • What maintenance is required for the Jade Range 4625100000 Gas Ignition Control Box?

    Inspect oven wiring connections and ignition terminals regularly for corrosion or looseness. Keep the control box clean and dry to prevent moisture damage. Ensure proper voltage supply and test ignition response.

  • What are common issues with the Jade Range 4625100000 Gas Ignition Control Box?

    • No ignition spark or intermittent ignition failure due to faulty relay or board damage.
    • Moisture intrusion causing short circuits.
    • Voltage irregularities leading to inconsistent startup.
    • Overheating or complete control lockout from component failure.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Compact Module
    Langworth —

    Fixed ignition issue, oven works perfectly
