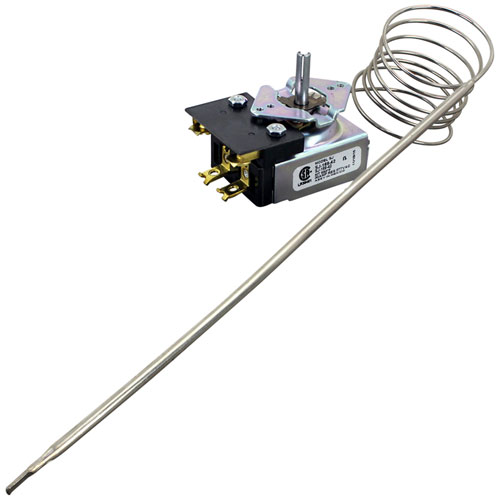

Vulcan Hart 5300-02C Vertical Mount W/ Auxiliary Switch 3/16" X 11-5/8"

SKU: 5300-02C 1-5300-02C Brand:
Vulcan Hart
Availability:
In Stock
(0)
$116.28 Price reduced from $210.27
Save $93.99
Have a Question? +1 (866) 863-0907

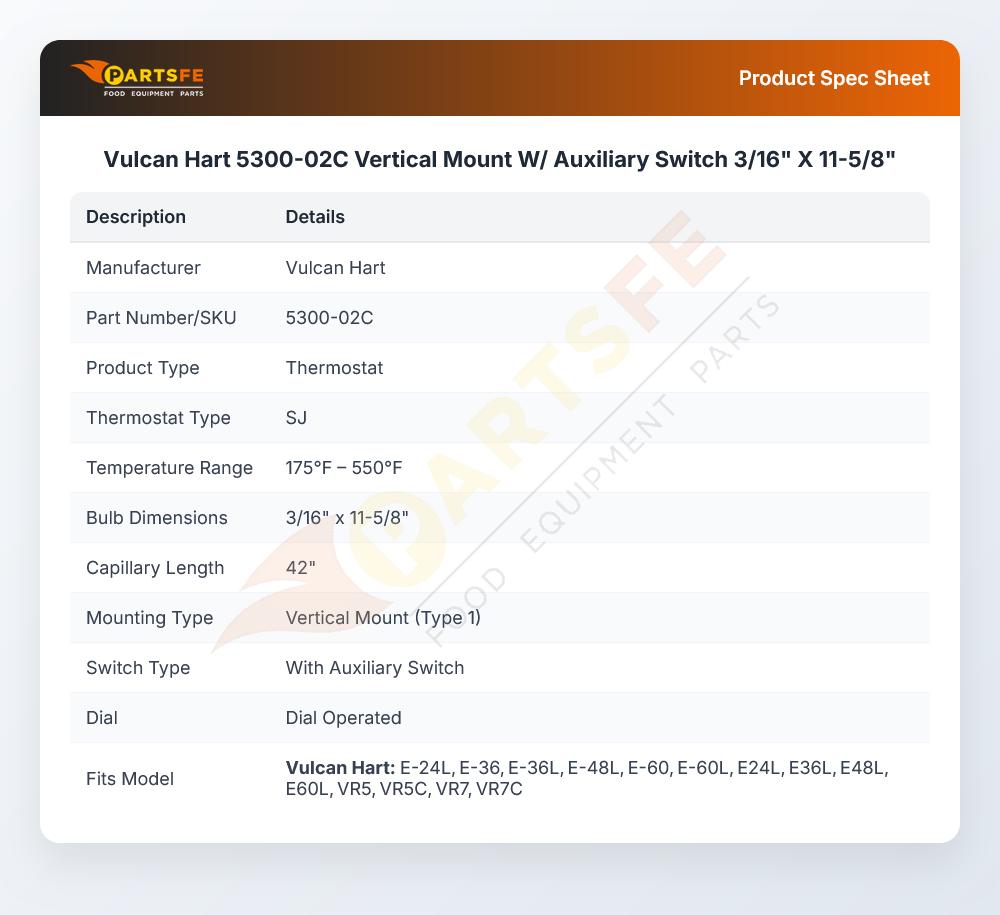

Specifications:

  • [ Type - Sj ] [ Temp 175-550 ] [ Bulb 3/16" X 11-5/8" ]
  • [ Cap 42" ] Type 1 Vert Mount, W/ Aux Switch.
  • Dial To Use = #22-1270 (T'Stat Shaft Flat Down) Or
  • # 22-1441 (Tstat Shaft Flat Up)
  • Oem Previously Used Type K Style. New Ranges May Use Sj
  • Type. Sj Will Work With Old Ranges.
  • Montague Oven Vectaire: 2Ek8, 2Ek15A, Ek8, Ek15A.
  • Rair Oven Series Vl ( Newer Model 2000 Use Digital T/Stat)
  • Vulcan Oven Series: E24, 36, 48, 60 W/L/Lc/Lcc Suffix,9030.
  • Vo004, Vo008 Old Style
  • Griddle Series: E24, 36, 48, 60 W/L/Lc/Lcc Suffix.

Description

The Vulcan Hart 5300-02C Vertical Mount Thermostat with an auxiliary switch is a temperature control part for commercial ovens and griddles through precise heat regulation. This part between 175-550°F temperature range using a 3/16" x 11-5/8" sensing bulb connected to a 42" capillary for precise temperature control. This Type SJ thermostat works with both older and newer range models while providing smooth replacement and high operational results. This part optimizes cooking speed while providing steady heating to work with Montague Vectaire Rair Oven Series VL and Vulcan Oven & Griddle Series. The dial compatibility features enable users to install the system according to their shaft orientation requirements.

Dimensions:

  • Weight: 0.6 lbs
  • Length: 12.5 in
  • Height: 2.5 in
  • Width: 2.25 in

HOBART:

00-411506-00002 00-411506-00006 111506-6 24146-1 411506-00002 411506-00006 411506-2 411506-6 420498

U-LINE:

5300-023 K44-42 K44-60

VULCAN HART:

00-411506-00002 00-411506-00006 00-411506-00014 111506-6 24146-1 411506-00002 411506-00006 411506-14 411506-2 411506-6 420498 VH111506-6 VH24146-1 VH411506-14 VH411506-6 VH5300-02C

Step1: Turn off main power supply and verify circuit is fully de-energized before starting.

Step2: Remove existing mount and clean installation surface free of debris and dust.

Step3: Position vertical mount and align 3/16" hardware holes carefully with bracket points.

Step4: Secure mount with fasteners and tighten evenly to manufacturer specifications.

Step5: Connect auxiliary switch wiring per schematic, ensure insulation and secure terminals.

Step6: Restore power and test switch operation and stability under load conditions.

  • What maintenance is required for the Vulcan Hart 5300-02C Auxiliary Switch?

    Inspect the switch assembly regularly for secure mounting and clean electrical contacts. Ensure wiring connections remain tight and free from corrosion or heat damage. Power down equipment before servicing and test switch operation periodically to confirm accurate performance and safe activation.

  • What are common issues with the Vulcan Hart 5300-02C Auxiliary Switch?

    • Faulty or worn auxiliary switch causing inconsistent signal output.
    • Loose mounting leading to misalignment actuation.
    • Electrical contact corrosion causing intermittent connectivity failures.
    • Wiring damage resulting in loss of function or short circuits.
    • Mechanical sticking or delayed switch response during operation.
