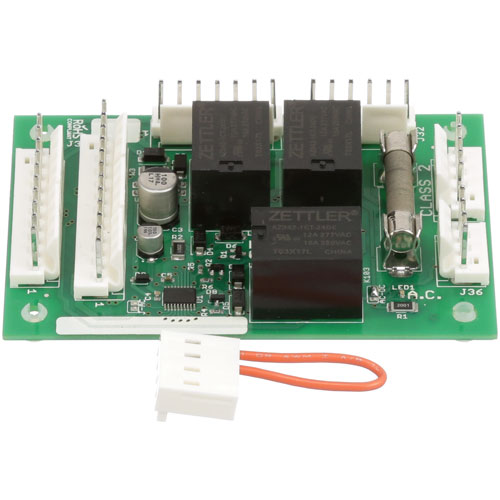

Pitco 60144001-C Fryer Relay Board 24V Class 2 SG

SKU: 60144001-C 1-60144001-C Brand:
Pitco
Availability:
In Stock
(0)
$123.96 Price reduced from $191.00
Save $67.04
Have a Question? +1 (866) 863-0907

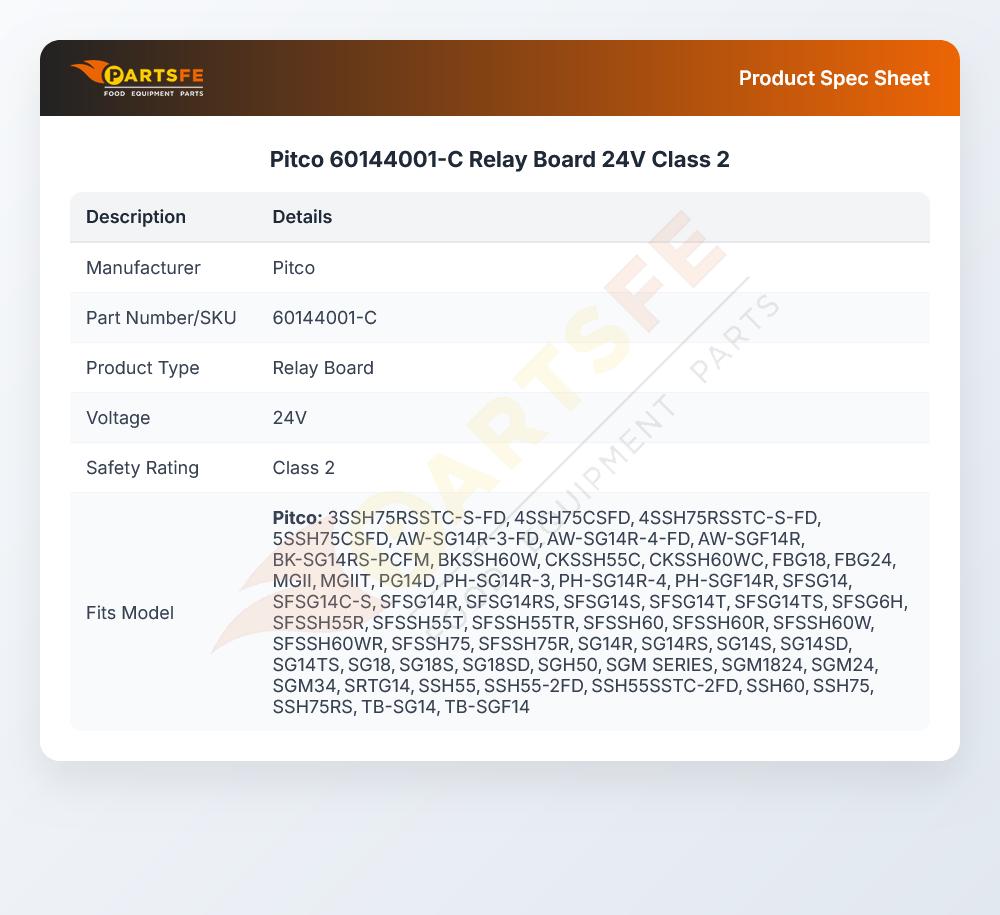

Specifications:

  • Relay Board 24V Class 2
  • Fits Pitco Models~
  • 3Ssh75Rsstc-S-Fd, 3Ssh75Rsstc-S/Fd, 4Ssh75Rsstc-S-Fd,
  • 4Ssh75Rsstc-S/Fd

Description

The Pitco 60144001-C Fryer Relay Board 24V Class 2 SG operates on the concept of control signals of low voltage received by the board and switching internal relays to electrical loads. These relays communicate between the control components and the powered components when they are operating. This is mounted on the inside of the control compartment, either behind the control panel or inside the electrical housing. The assembly arranges scheduled and conditional responses to heating. It is an alternative control board that is intended for the correct electrical switching in compatible configurations.

Dimensions:

  • Weight: 0.15 lbs
  • Length: 5 in
  • Height: 1 in
  • Width: 3 in

MAGIKITCH'N:

60144001-CL

PITCO:

60144001-CL 60144001C

Step1: Disconnect power and confirm 24V supply is off before servicing.

Step2: Open control panel and note wiring positions of existing relay board.

Step3: Remove old board carefully, avoiding strain on connectors.

Step4: Mount new Pitco relay board securely and reconnect terminals per diagram.

Step5: Restore power and test operation for proper switching.

Step6: Verify correct voltage and inspect for overheating during initial run, monitor for stability.

  • What maintenance is required for the Pitco 60144001-C Relay Board?

    Inspect the relay board periodically for dust buildup, corrosion, or burnt components. Ensure all electrical connections are tight and free from moisture. Check for signs of overheating or damaged solder points during operation. Proper ventilation and stable voltage supply support maintain accurate performance and prevent premature failure.

  • What are common issues with the Pitco 60144001-C Relay Board?

    • Relay failure causing intermittent or no switching response.
    • Burnt or damaged components from voltage spikes or overload.
    • Loose or corroded connections leading to erratic operation.
    • Control signal failure resulting in unresponsive system behavior.
