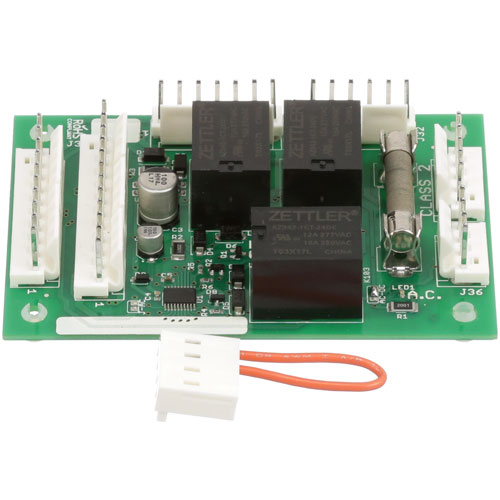

Pitco 60144001-CL Fryer Relay Board Class-2 24V
Specifications:
- Relay Board 24V Class 2
- Fits Pitco Models~
- 3Ssh75Rsstc-S-Fd, 3Ssh75Rsstc-S/Fd, 4Ssh75Rsstc-S-Fd,
- 4Ssh75Rsstc-S/Fd
Description
Dimensions:
- Weight: 0.15 lbs
- Length: 5 in
- Height: 1 in
- Width: 3 in
This relay board kit is used in commercial fryers to help control electrical signals inside the equipment. It works with 24V power and helps switch signals between important fryer parts like burners, ignition, and safety systems. It also works with the wire harness and connector assembly to make sure all signals are sent correctly, and the fryer runs smoothly during heating cycles. This part is commonly used in busy commercial kitchens where fryers run all day. If the relay board starts to fail, the fryer may heat unevenly, respond slowly, or stop working properly. Replacing it helps restore correct electrical control and keeps the fryer working reliably every day.
Equipment Compatibility:
Used in commercial fryer control and electrical systems, Pitco relay board applications include fryer control units and burner ignition systems used in professional kitchens. This Relay Board Kit 60144001-CL is compatible with equipment from brands like Pitco and Magikitch’n, where stable 24V control signals and proper burner coordination are needed for safe fryer operation.
Brand Compatibility:
This relay board replaces similar parts used in commercial fryers from brands like Pitco, Magikitch’n, and more. It is made to match standard setups for proper fit and operation. Full cross-reference details can be checked separately for exact matching.

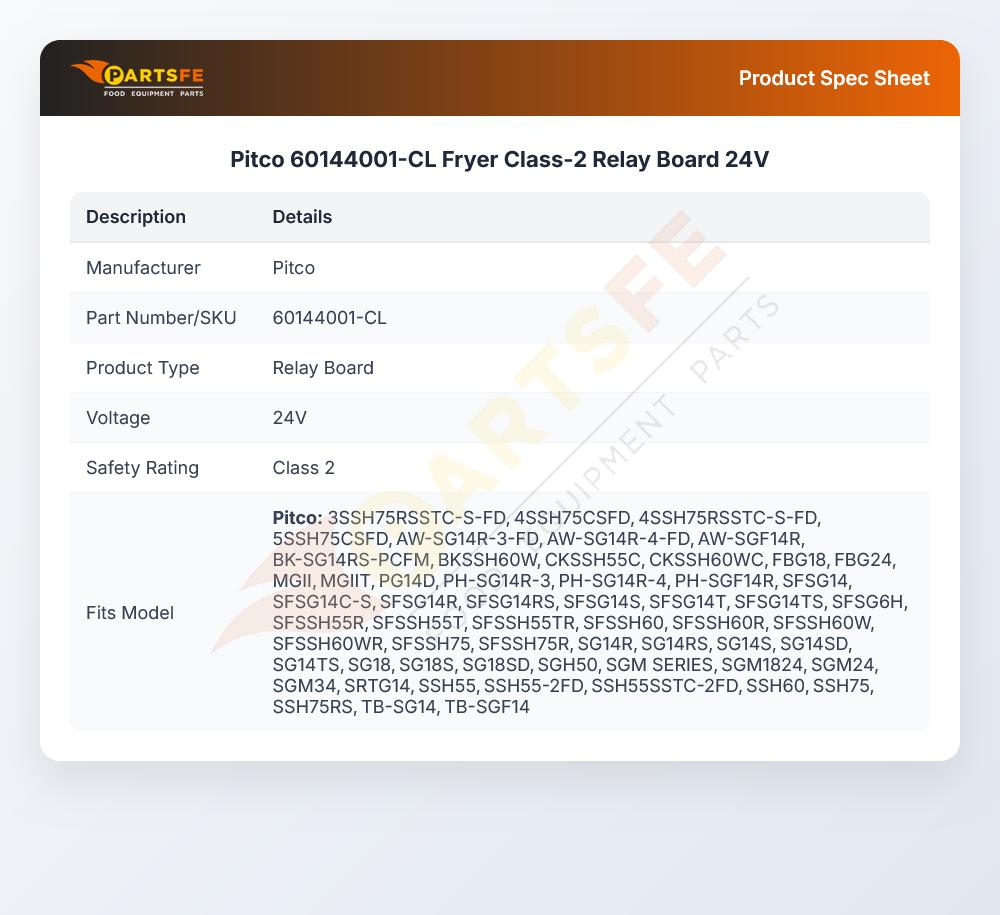

Product Specifications:
Product Type: Fryer Class-2 Relay Board Kit
Manufacturer: Pitco
SKU: 60144001-CL
Voltage: 24V
Includes: Relay board, wire harness, and connector assembly
Key Features:
- Provides stable 24V switching for fryer control parts, helping burners and ignition systems work correctly.
- The built-in wire harness and connectors help keep electrical connections strong and reliable.
- Reduces the chance of signal problems during continuous commercial use.
- Helps maintain smooth and steady fryer operation.
- Supports safe and consistent fryer performance in busy kitchens.
- Easy replacement part for fixing fryer control issues.
- Restores proper function when the original relay board stops working correctly.
- Operator feedback:
- “After installing the relay board, the fryer responded more consistently and ignition became much more reliable.”
MAGIKITCH'N:
PITCO:
Step1: Disconnect power to the fryer to prevent electrical shock.
Step2: Remove the control panel to access the relay board.
Step3: Label and disconnect all wire connections.
Step4: Remove mounting screws and take out the old board.
Step5: Install the new board and reconnect all wiring properly.
Step6: Restore power and test fryer controls.
-
What maintenance is required for the Pitco 60144001-CL Relay Board?
Regularly inspect the relay board for signs of corrosion, burnt contacts, or loose connections. Clean dust and grease carefully using a soft brush or compressed air. Ensure power is off before handling to prevent shock. Routine checks prevent failures and prolong fryer performance.
-
What are the common issues with the Pitco 60144001-CL Relay Board?
- Relays failing to engage or disengage properly
- Overheating of contacts causing intermittent operation
- Burnt or pitted relay contacts
- Faulty voltage input leading to inconsistent fryer cycles.
Customer Reviews
Write a Review
-
Voltage Stability
The old board was causing random shutdowns. After replacement signal flow is stable in the fryer.
-
Quick Fix
Sturdy board with precise control
-
Excellent product
The Pitco relay board was simple to install and has been operating perfectly. Great value for the price.
-
Works Seamlessly
Relay board switches heating elements accurately, fryer works perfectly.
