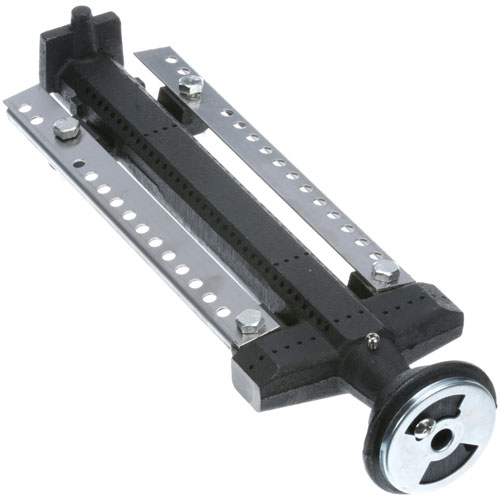

Hobart 712001-000A2 Burner Cast Iron 13-1/4" X 4-1/4"

SKU: 712001-000A2 1-712001-000A2 Brand:
Hobart
Availability:
In Stock
(0)
$107.20 Price reduced from $165.18
Save $57.98
Have a Question? +1 (866) 863-0907

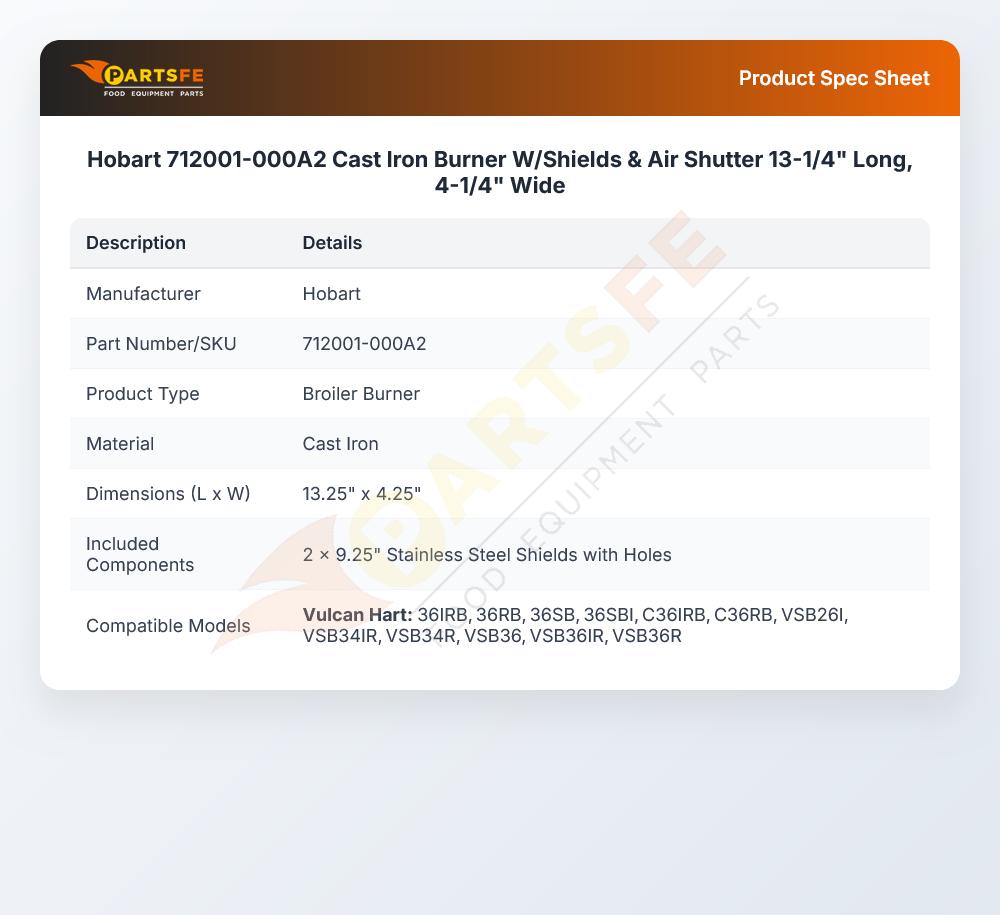

Specifications:

  • Cast Iron Burner W/ Shields & Air Shutter
  • 13-1/4" Long X 4-1/4" Wide,
  • 2 Ea 9-1/4" Ss Shields With Holes,
  • Ss Shield Right # 26-3262
  • Ss Sheild Left # 26-3274
  • Radiant Pin # 26-3287
  • Air Shutter # 26-1569
  • Vulcan Broiler
  • Wolf Broiler Rb-36

Description

The Hobart 712001-000A2 Burner Cast Iron 13-1/4" X 4-1/4" operates by directing gas to the inside chamber and to the surface ports where it burns. This element controls the fuel flow to ensure the pattern of flame is constant and required to process thermally. The unit is installed in the heating part of the compatible commercial cooking appliances. This part is made of heavy-duty cast iron and is precisely 13-1/4 inches long by 4-1/4 inches wide to fit with fixings in place. Atmospheric design uses venturi force to combine air with incoming gas, then ignition.

Dimensions:

  • Weight: 5.88 lbs
  • Length: 13.25 in
  • Height: 4 in
  • Width: 4 in

HOBART:

00-712001-0000A 00-712001-000A2 2324A 712001-A2 712001A2

VULCAN HART:

-00-712001-0000A -00-712001-000A2 -2324A -712001-000A2 -712001-A2 -712001A2 00-712001-0000A 00-712001-000A2 2324A 712001-A2 712001A2

Step1: Turn off gas supply and disconnect power before starting.

Step2: Remove old burner assembly and clean mounting area.

Step3: Position new burner, align with fittings and secure mounting screws.

Step4: Reattach gas line, air shutter, and shields ensuring tight seals.

Step5: Restore gas supply, check for leaks with soapy water.

  • What maintenance is required for the Hobart 712001-000A2 Burner?

    Inspect the burner regularly for grease, carbon deposits, and debris that can obstruct proper flame distribution. Clean burner ports carefully to maintain consistent ignition and heating performance. Check for signs of corrosion, cracks, or damage to the burner surface. Always shut off the gas supply and allow the equipment to cool before performing maintenance.

  • What are the common issues with the Hobart 712001-000A2 Burner?

    • Uneven flame from clogged ports.
    • Poor combustion due to air shutter misalignment.
    • Weak or delayed ignition.
    • Unstable flame during operation.
