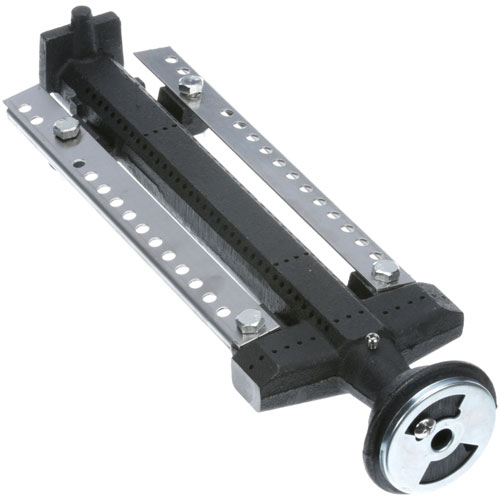

Vulcan Hart 00-712001-0000A Salamander Broiler Burner Assembly CGA

Combustion Process:
Distributes gas through the burner ports for controlled ignition and combustion. The burner surface allows the fuel-air mixture to produce a stable flame across the assembly, generating the heat required for overhead cooking. Consistent combustion helps maintain uniform thermal exposure and predictable cooking performance.

Flame Distribution:
Distributes gas across the burner openings to establish an even flame pattern. Properly functioning ports help maintain consistent heat coverage, while blocked or damaged openings can affect flame uniformity and thermal output.

Replacement Guidelines:
Replacement of the Salamander Broiler Burner Assembly if it is cracked, damaged, deformed, corroded, burned, or no longer produces the required heat output. The part number 00-712001-0000A, 13-3/8" × 4-3/8" dimensions, and CGA configuration should be verified before replacement to ensure the correct burner assembly is selected.

Common Failure Symptoms:

• Burner flame pattern becomes uneven or inconsistent.
• Heating output from the broiler is reduced or irregular.
• Burner ports show visible deterioration or damage.
• Broiling heat is uneven across the cooking area.
• Burner assembly shows physical distortion or deterioration.

Equipment Compatibility:
The Vulcan Hart 00-712001-0000A Burner Assembly is intended for equipment applications requiring this specific burner configuration. Confirm the equipment model, part number, and CGA specification before purchase.

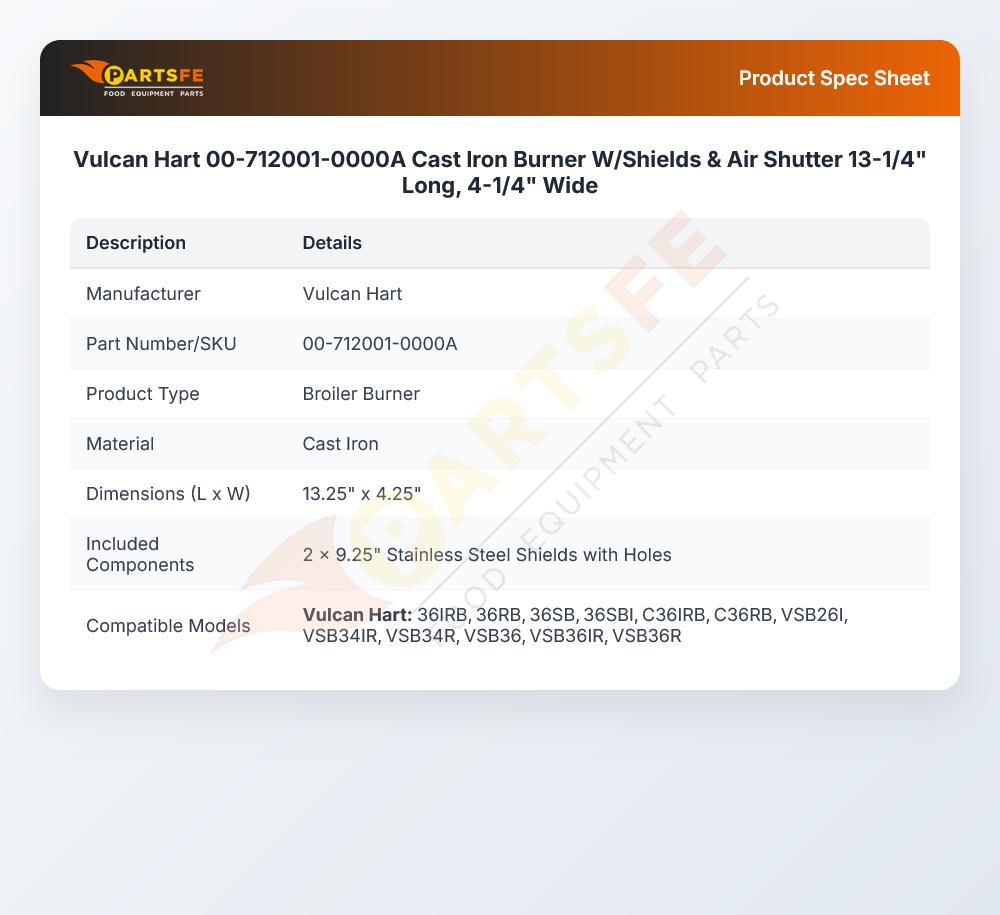

Technical Specifications:
Brand: Vulcan Hart
Part Number: 00-712001-0000A
Product Name: Burner Assembly
Appliance Type: Commercial Salamander Broiler

Step1: Turn off all gas and power supplies before starting installation.

Step2: Remove the old burner and shields from the appliance.

Step3: Align the new cast iron burner with the mounting slots.

Step4: Secure the burner using the existing fasteners.

Step5: Attach the shields and adjust the air shutter for proper flame.

Step6: Test for leaks and ensure even flame distribution before full use.

Step7: Wear gloves to avoid injury from sharp edges.

• What maintenance is required for the Vulcan Hart 00-712001-0000A Cast Iron Burner?

  Regularly clean the burner to remove grease, debris, and carbon buildup that can block gas flow. Inspect the shields and burner ports for damage or clogging. Ensure proper alignment during reinstallation. Always allow the unit to cool before handling to prevent burns or injury.

• What are common issues with the Vulcan Hart 00-712001-0000A Cast Iron Burner?

  • Uneven flame distribution or weak flame output.
  • Burner ports are clogging, leading to inconsistent ignition.
  • Warping or cracking of cast iron under high heat.
  • Improper gas flow is causing delayed or incomplete combustion.

• What is the Vulcan Hart 00-712001-0000A salamander broiler burner assembly used for?

  The Vulcan Hart 00-712001-0000A is used as the burner assembly in a compatible salamander broiler, providing the heat source for the cooking area.

• Where does the burner assembly fit into a salamander broiler?

  The burner assembly forms part of the broiler's heating section and is positioned to provide heat toward the cooking area during operation.

• What does "CGA" identify on the Vulcan Hart 00-712001-0000A?

  "CGA" identifies the configuration designation associated with this burner assembly and helps distinguish it from other burner configurations.

• What should buyers verify before selecting the Vulcan Hart 00-712001-0000A?

  Buyers should verify the specific salamander broiler model, burner configuration, and equipment parts information to confirm that this assembly matches the intended unit.

• Does the Vulcan Hart 00-712001-0000A burner assembly need regular maintenance?

  Regular inspection and cleaning should be performed according to the maintenance requirements for the compatible salamander broiler, particularly to address burner-area buildup or visible contamination.
