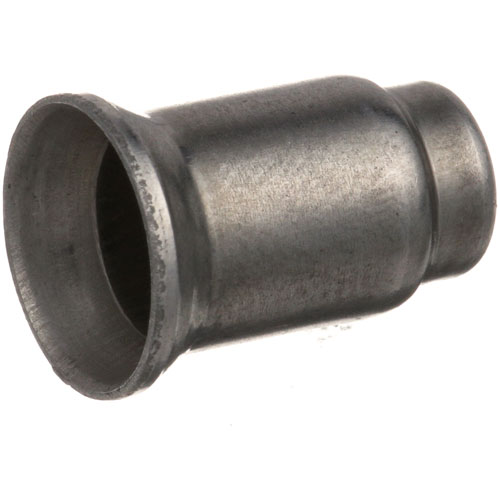

Hobart 720041 Natural Gas Pilot Orifice 0.018"

SKU: 720041 1-720041 Brand:
Hobart
Availability:
In Stock
(0)
$9.62
Have a Question? +1 (866) 863-0907

Specifications:

  • Nat Pilot Orifice .018" X 1/4"
  • .372" Dia X .530" Long
  • ***Sometimes Used In Lp Applications***
  • Cecilware Fryer Lp Orifice For Model Gf10
  • Frymaster Fryer
  • Garland Fryer
  • Henny Penny Fryer 600, Og- 301,302,303
  • Imperial Oven Icv, Icvd (Lp)
  • Montague 3418, 3618, Sb34, Sb36
  • Vulcan Fryer Gpc, Gr
  • Oven 60L, 60Lc
  • Wolf Fryer Wtf-35, Wtf-42

Description

The Hobart 720041 Natural Gas Pilot Orifice 0.018" works by controlling the amount of fuel that flows to the initial burner assembly. This component is a fixed aperture to provide a constant flow rate to keep the flame burning to continue the ignition sequence of the main flame. This is mounted in the direct connection between the initial gas line and the supply tubing and the combustion head. It is used as a direct swap component to keep the initial factory requirements of the system.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.5 in
  • Height: 0.5 in
  • Width: 0.25 in

AMERICAN RANGE:

11001 11106 A11115 A11118

BAKERS PRIDE:

M1244X

BLODGETT:

20589

COMSTOCK CASTLE:

ORN18

DEAN:

810-0126 8100126

DYNAMIC COOKING SYSTEMS:

13028-18

FRYMASTER:

810-0126 8100126 FM810-0126 FM8100126

GARLAND:

1028202 1028206 1293000 227049-18 F810-0126 GL1028202 GL1028206 GL1293000 GLF810-0126

HENNY PENNY:

29820

HOBART:

00-417146-00001 00-711339-0000N 00-721086-00001 11339N 20041 21086-1 417146-00001 417146-1 711339-0000N 711339-N 721086-00001 721086-1

IMPERIAL:

1017 1058 2031-2 IMP1058

JADE RANGE:

46-179 460-179-000 460179000 4617900000

LANG:

2A-80401-01 80401-01 80401-11

MONTAGUE:

131 2190-3 2193-8 MON2193-8

PITCO:

P6071666 PTP6071666

SOUTHBEND:

1171523

STAR MFG:

2A-80401-01 2A-80401-11

U-LINE:

10-021

VULCAN HART:

00-417146-00001 00-711339-0000N 00-721086-00001 11339N 20041 21086-1 417146-00001 417146-1 711339-0000N 711339-N 721086-00001 721086-1

Step1: Turn off gas supply and electrical power to the appliance before starting.

Step2: Remove burner assembly and locate the existing pilot orifice carefully.

Step3: Unscrew old pilot orifice and install new pilot orifice ensuring proper tight seating.

Step4: Reassemble burner, reconnect gas line, and check for leaks using soapy water.

Step5: Restore power, test ignition, and verify stable flame operation for safety.

  • What maintenance is required for the Hobart 720041 Pilot Orifice?

    Clean the pilot orifice regularly to remove carbon deposits and debris that can restrict gas flow. Inspect for blockages and ensure correct alignment. Use appropriate tools to avoid damaging the small opening.

  • What are the common issues with the Hobart 720041 Pilot Orifice?

    • Clogging from carbon buildup inside the pilot orifice.
    • Weak or inconsistent pilot flame performance.
    • Gas flow restriction reduces ignition reliability.
    • Misaligned or damaged, orifice threads cause leaks or weak fit.
    • Improper ignition or flame-out during operation.
