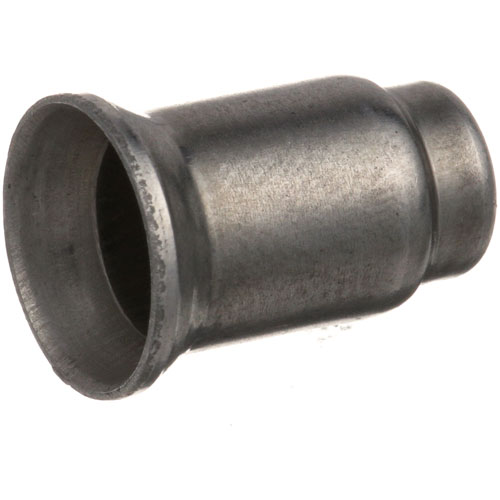

American Range A11118 Fryer Natural Gas Pilot Orifice 0.018"

SKU: A11118 1-A11118 Brand:
American Range
Availability:
In Stock
(0)
$9.62
Have a Question? +1 (866) 863-0907

Specifications:

  • Nat Pilot Orifice .018" X 1/4"
  • .372" Dia X .530" Long
  • ***Sometimes Used In Lp Applications***
  • Cecilware Fryer Lp Orifice For Model Gf10
  • Frymaster Fryer
  • Garland Fryer
  • Henny Penny Fryer 600, Og- 301,302,303
  • Imperial Oven Icv, Icvd (Lp)
  • Montague 3418, 3618, Sb34, Sb36
  • Vulcan Fryer Gpc, Gr
  • Oven 60L, 60Lc
  • Wolf Fryer Wtf-35, Wtf-42

Description

The American Range A11118 Fryer Natural Gas Pilot Orifice 0.018" works with the concept of controlling the exact amount of fuel flow into the pilot burner assembly to ensure the same standing flame. This part is used to measure pressure of the liquid by a precisely bored 0.018-inch hole to keep the pilot light burning until the main heater ignites. The opening will be situated in the tubing line, and it will be clamped between the supply gas connection and the initial combustion head.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.5 in
  • Height: 0.5 in
  • Width: 0.25 in

AMERICAN RANGE:

11001 11106 A11115

BAKERS PRIDE:

M1244X

BLODGETT:

20589

COMSTOCK CASTLE:

ORN18

DEAN:

810-0126 8100126

DYNAMIC COOKING SYSTEMS:

13028-18

FRYMASTER:

810-0126 8100126 FM810-0126 FM8100126

GARLAND:

1028202 1028206 1293000 227049-18 F810-0126 GL1028202 GL1028206 GL1293000 GLF810-0126

HENNY PENNY:

29820

HOBART:

00-417146-00001 00-711339-0000N 00-721086-00001 11339N 20041 21086-1 417146-00001 417146-1 711339-0000N 711339-N 720041 721086-00001 721086-1

IMPERIAL:

1017 1058 2031-2 IMP1058

JADE RANGE:

46-179 460-179-000 460179000 4617900000

LANG:

2A-80401-01 80401-01 80401-11

MONTAGUE:

131 2190-3 2193-8 MON2193-8

PITCO:

P6071666 PTP6071666

SOUTHBEND:

1171523

STAR MFG:

2A-80401-01 2A-80401-11

U-LINE:

10-021

VULCAN HART:

00-417146-00001 00-711339-0000N 00-721086-00001 11339N 20041 21086-1 417146-00001 417146-1 711339-0000N 711339-N 720041 721086-00001 721086-1

Step1: Turn off gas supply and allow appliance to cool completely before service.

Step2: Remove burner assembly access panel carefully.

Step3: Unscrew existing pilot orifice carefully gently.

Step4: Install new orifice, ensure correct threading alignment.

Step5: Tighten securely without over-torquing or damaging threads.

Step6: Reassemble burner components and access panel firmly.

Step7: Restore gas supply, test pilot flame, and check for leaks using soapy water solution.

  • What maintenance is required for the American Range A11118 Pilot Orifice?

    Regularly inspect the pilot orifice for blockages caused by grease or debris and clean it using compressed air or a fine wire. Ensure proper gas flow and alignment during reinstallation. Regular maintenance can maintain consistent ignition and prevents unsafe gas buildup.

  • What are common issues with the American Range A11118 Pilot Orifice?

    • Clogging due to grease, dirt, or carbon buildup restricting gas flow.
    • Weak or inconsistent pilot flame affecting ignition.
    • Gas leakage from improper fitting or worn connections.
    • Misalignment causing uneven or unstable flame performance.
