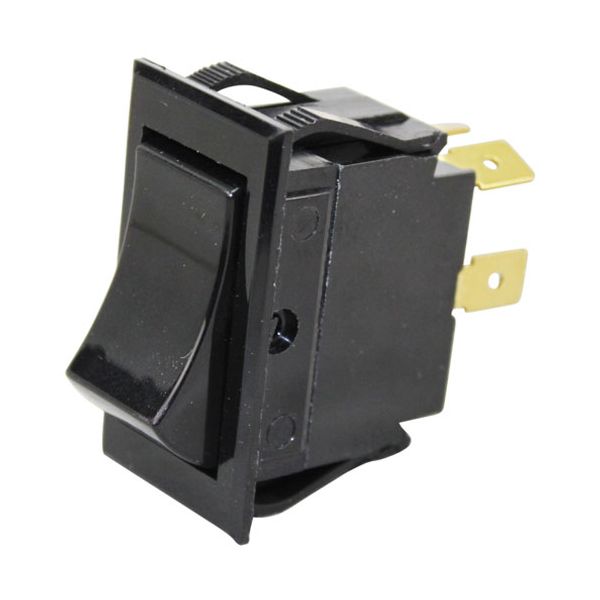

Cres Cor 808-116-K Rocker Switch 7/8 X 1-1/2 DPST
Special Price $21.43 Regular Price $23.38
Out of stock
SKU
808-116-K
Manufacturer:
The Cres Cor 808-116-K Rocker Switch 7/8 inch x 1-1/2 inch DPST has two electrical circuits that are active simultaneously, and which are opened or closed by internal contacts when the rocker is pressed. As the rocker moves, it may either conduct or cut the current through both poles, giving coordinated on/off control with a single switch. It is attached to the control panel of compatible equipment and is installed via a cutout with wiring terminals. The double-pole/single-throw design allows control of two or more circuits to be made at once in food service or industrial applications, allowing effective electrical control.
Dimensions
- Length: 1.75 In
- Width: 2 In
- Height: 1 In
- Weight: 0.1 lbs
Product Notes
- [ Rocker ] [ Fits Hole 7/8" X 1-1/2" ] [ On/Off ] [ Dpst ]
- [Terminals 4Ea (1/4" Tabs) ] [ 125/277V 20Amp]
- [ Color Black]
- Bloomfield
- Coffee 8707, 8710, 8711, 8712, 8713, 8714, 8715, 8716,
- 8717, 8718, 8751, 8752, 8753, 8754, 8755, 8756,
- 8757, 8758, 9104.
- Crescor Warmer Phu-18-747-(35,36). Series: 120-Cr, 121-Cr,
- H-339-(124,127,128,188,188-Pt, 1813,Ua-8), H137.
- 129-005 Cabinet, 0617.
- Southbend Griddle Sg,
- Oven Marathon Gold, Saffire, Dilverstar
- Wells Mod Wv-Fg
