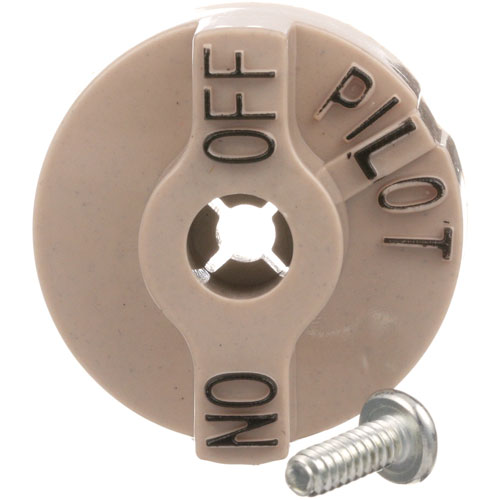

Frymaster 8100109 Gas Valve Knob W/Screw 1-1/4" DIA OFF-PILOT-ON

SKU: 8100109 1-8100109 Brand:
Frymaster
Availability:
In Stock
(0)
$1.40
Have a Question? +1 (866) 863-0907

Specifications:

  • Dial & Screw For 700 Series Gas Pilot Safety Valves
  • [ 1-1/4 Dia ] [ Off-Pilot-On] [Mounts With Screw ]
  • Rsw Mfg # 1751-012

Description

The Frymaster 8100109 Gas Valve Knob is a 1-1/4" diameter control valve that is used to control gas burners in commercial appliances with high accuracy. It has well-labelled OFF, PILOT, and ON settings that enable the burner and pilot to be operated directly. The knob is fixed on the valve stem using a screw that keeps it always in the same position when it is used again and again. It is usually placed on the front panel of the appliance and serves as the main control point of interaction with the pilot light and regulation of the flame intensity.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 1.25 in
  • Height: 0.75 in
  • Width: 1.25 in

AMERICAN RANGE:

A32053

ANETS:

P3202-92 P6071267 P9302-92

BAKERS PRIDE:

AS-S1453A S1453A

DEAN:

810-0433 8100433

FRYMASTER:

11432 810-0109 810-0433 8100433 FM810-0433 FM8100109 FM8100433

GARLAND:

1292703 2516-1 F810-0109 G02518-1 GL1292703 GL2516-1 GLF810-0109 GLG02518-1

HENNY PENNY:

16267

HOBART:

00-412081-00001 00-413433-00001 00-713824 13824 412081-1 413433-00001 413433-1 713824

IMPERIAL:

28328 IMP28328

KEATING:

004803 4803 H00356H KEA4803 KEAH00356H

MAGIKITCH'N:

P6071170 P6071267

MIDDLEBY MARSHALL:

P9302-92

PITCO:

P6071170 P6071267 P9302-92 PTP6071170 PTP6071267

ROYAL RANGE:

3117

SOUTHBEND:

1053907

U-LINE:

1751-012

VULCAN HART:

00-412081-00001 00-413433-00001 00-713824 13824 412081-1 413433-00001 413433-1 713824

Step1: Turn off the gas supply and allow the unit to cool completely before servicing.

Step2: Pull the damaged valve knob straight off the gas valve stem or remove retaining screw if installed.

Step3: Inspect the valve stem for grease buildup, cracks, or damage before installing the new knob.

Step4: Align the flat side of the new knob with the valve stem and press firmly into place.

Step5: Secure retaining screw if applicable and confirm smooth operation.

Step6: Restore gas supply and test knob movement for safe, proper control.

  • What maintenance is required for the Frymaster 8100109 Valve Knob?

    Clean the knob regularly to remove grease and food debris. Ensure the mounting screw remains tight to prevent wobbling. Inspect alignment in positions to ensure safe operation and smooth gas control.

  • What are common issues with the Frymaster 8100109 Valve Knob?

    • Worn lettering or position indicators are fading.
    • Stripped mounting screw threads.
    • Stiff or hard-to-turn rotation.
    • Cracking or heat damage to plastic.
    • Loose fit on valve stem.
    • Knob slipping on the shaft.
