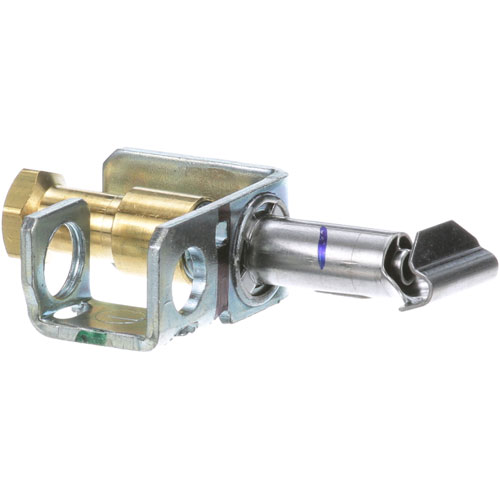

Dean 8100154 Pilot Kit Natural Gas 1/4" CCT

SKU: 8100154 1-8100154 Brand:
Dean
Availability:
In Stock
(1)
$41.38 Price reduced from $53.75
Save $12.37
Have a Question? +1 (866) 863-0907

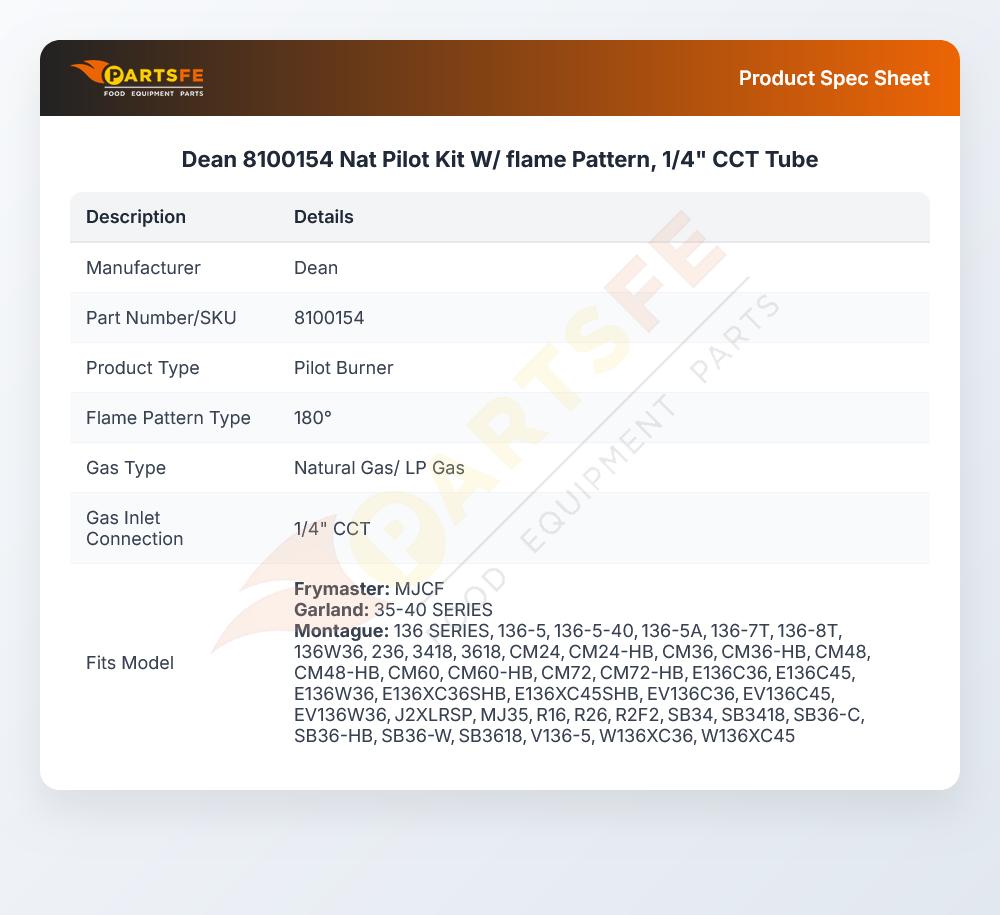

Specifications:

  • Nat Pilot, Factory # 3Ch-6, 1830-010, Tube Size 1/4"Cct,
  • Flame Pattern Standard,
  • Includes # 26-1555 Orifice For Nat.
  • For Lp Use # 26-1554 Orifice For Lp.
  • Frymaster Fryer J3Fc, J65X, Jcfx Mac
  • 50,51,150,151,250,251,350,351),
  • Mj41E, Mj45E (England & Germany), Mjcf, Mjcfe.Series: Mje.
  • Garland Fryer 35-40, 35-50, 70-40, 35-28, Before 10/86
  • Montague Fryer J2Xlrsp, R2F2, Mj35.
  • Oven 28Cbsf Chinese Bbq.
  • Range Series: 136, Montague Ii R, V136, 3418, 3618

Description

The Dean 8100154 Pilot Kit 1/4" CCT is used to start the main burner with a continuous natural gas pilot flame which lights when heat is required by the control system. The gas is forced through the 1/4" CCT tube to the pilot orifice, where it combines with air to ensure a consistent flame pattern to consistently start the primary burners. This pilot kit is attached to the gas supply line and is mounted close to the main burner assembly combustion chamber of compatible equipment using brackets.

Dimensions:

  • Weight: 0.3 lbs
  • Length: 0.75 in
  • Height: 2.88 in
  • Width: 1.63 in

DEAN:

810-0154

FRYMASTER:

810-0154 8100155 FM810-0154 FM8100154

GARLAND:

1293098 1293099 F810-0154N GL1293099 GLF810-0154N

MONTAGUE:

01017-0 1017-0 1018-9 1019-7 1020-0 3394-4 36353-7 4333-8 7-8 B-34B B34B CB-3A CB3A GB12C MON1017-0 MON36353-7 MON4333-8 MONB34B MONCB3A MONR34 MONSAL37A R-34 R34 SAL37A

U-LINE:

1830-010

Step1: Turn off gas supply and power to the fryer for safety.

Step2: Remove burner access panel.

Step3: Disconnect existing pilot assembly and tubing connections.

Step4: Install new tube and secure pilot kit in mounting position.

Step5: Align flame pattern toward burner assembly.

Step6: Tighten all fittings to avoid gas leaks.

Step7: Restore gas, check for leaks, and test ignition.

  • What maintenance is required for the Dean 8100154 Pilot Kit?

    Inspect the pilot assembly regularly for soot buildup and ensure the flame pattern remains stable and blue. Clean the orifice and tube to prevent clogging from grease or debris. Check tubing connections for leaks or looseness. Verify consistent ignition performance during routine appliance servicing.

  • What are common issues with the Dean 8100154 Pilot Kit?

    • Weak or unstable pilot flame caused by clogged orifice or gas restriction.
    • Delayed ignition or failure to light due to dirty components.
    • Flame lifting or irregular pattern indicating airflow imbalance.
    • Gas leaks or poor sealing at tube connection points.
