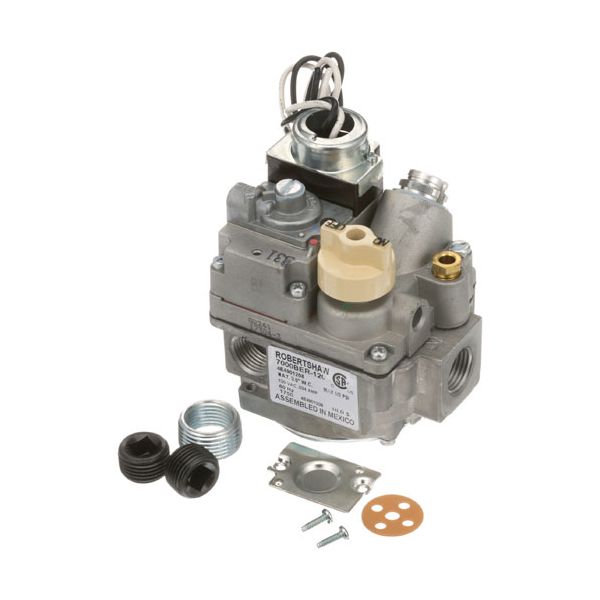

Hobart 840126-00011 Safety Control Valve NG 1/2" FPT IN X 3/4" FPT Out 120V
Special Price $216.60 Regular Price $333.75
In stock
SKU
840126-00011
Manufacturer:
The Hobart 840126-00011 Safety Control Valve NG 1/2" FPT IN X 3/4" FPT Out 120V regulates gas movement by interacting with pilot-related parts that determine if fuel must be supplied to the burner assembly. It maintains an open gas channel while optimum operating conditions are present and restricts flow when the pilot signal is interrupted. The side outlet connection enables gas transfer to designated internal sections of the appliance. It is positioned within the gas control unit of compatible commercial equipment, where it operates in ignition sequences, burner supply procedures, and gas interruption activities during equipment operation.
Dimensions
- Length: 5.75 In
- Width: 4.75 In
- Height: 3.5 In
- Weight: 2.282 lbs
Product Notes
- Nat Gas Safety, 1/2" Fpt In, 3/4" & 1/2" Out. W/ (2) 1/2"
- Side Outs W/ Plugs, 3/4" X 1/2" Reducer Bushings,
- 1/4" Cct Pilot Out, Uses Thermocouple.
- For Nat To Lp Gas Conversion Kit Use # 51-1470
- Model 7000 Ber-120, 120 Vac Actuator, Mfg# 700-452
- Dean Fryer 1824/2424G, 1824G, 2424G, D20, D50,
- D50G, D50Gdd, D60, D60Gs, D80, Fpd65, Fphd65, Tb14
- Henny Penny Fryer 600, Og- 301,302,303
- Market Forge Oven 2500, 2700
- Gas Tilt Skillet 1500 1700,
- Southbend Kettle Kslg W/Standing Pilot. Oven X,Xs
- Vulcan Tilt Skillets Model E-30-C, E-30-O, E-40-C, E-40-O,
- G-30-C,G-30-O, G-40-C, G-40-O
