Southbend 3103902 Combi Oven Blower Wheel RA-36/RH36
Special Price $154.10 Regular Price $290.21
In stock
SKU
3103902
Manufacturer:

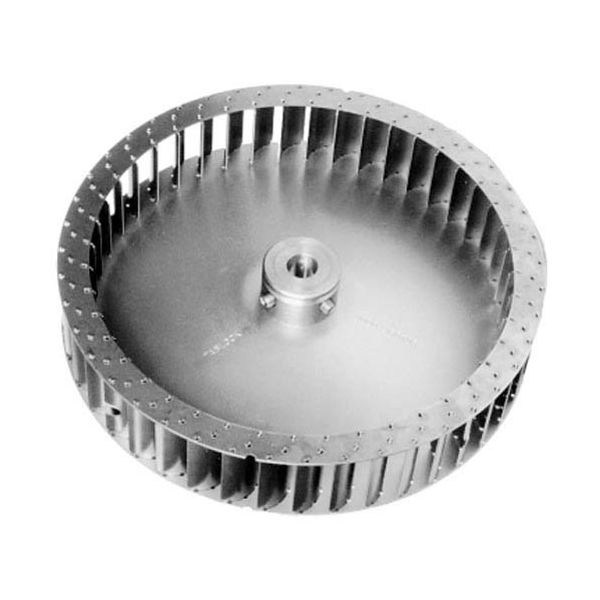

The Southbend 3103902 Combi Oven Blower Wheel moves air through the internal circulation path by rotating around its center shaft. The curved blades capture surrounding air and propel it outward as the wheel turns creating continuous movement through the heated chamber. The RA-36/RH36 designation identifies the equipment configuration associated with the assembly. The central hub connects to the rotating shaft, while the balanced radial layout keeps the wheel centered during movement. Air circulation distributes heat through the chamber during cooking stages, maintaining movement across the enclosed space.
Dimensions
- Length: 9.8 In
- Width: 9.8 In
- Height: 2 In
- Weight: 1.95 lbs
Product Notes
- Blower Wheel,
- 9-7/8" Diameter~
- Shaft Bore =5/8", 2-1/8" Wide,
- Flat Back, Changed To Concave Back.
- Ccw, Smooth Hub, Changed To Puller Hub.
- 2 Set Screws. Added Key Way & Key.
- Hobart Oven Cn & Most Other Convection Ovens.
- Vulcan Oven
- Southbend Mh36, Rh36
- Toastmaster Oven
