Montague CB3A Pilot Kit Natural Gas 1/4" CCT
Special Price $41.38 Regular Price $53.75
In stock
SKU
CB3A
Manufacturer:

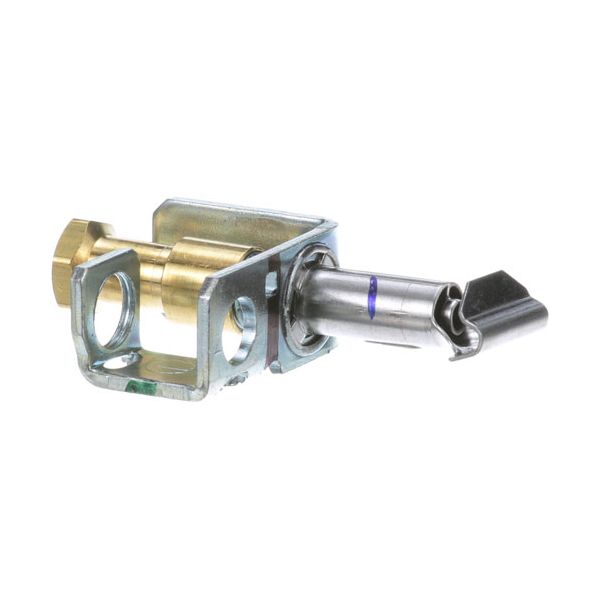

The Montague CB3A Pilot Kit Natural Gas is a part that is a continuous flame passing through a 1/4" CCT tube and is used to ignite the main burners when the control system needs heat. The gas flows through the tube to the pilot orifice where it mixes with air and creates a stable flame pattern to assist in igniting main source of combustion. The pilot assembly is connected to main burner or combustion area of compatible equipment and is connected by brackets and connected to the gas supply line and ignition system.
Dimensions
- Length: 0.75 In
- Width: 1.625 In
- Height: 2.875 In
- Weight: 0.3 lbs
Product Notes
- Nat Pilot, Factory # 3Ch-6, 1830-010, Tube Size 1/4"Cct,
- Flame Pattern Standard,
- Includes # 26-1555 Orifice For Nat.
- For Lp Use # 26-1554 Orifice For Lp.
- Frymaster Fryer J3Fc, J65X, Jcfx Mac
- 50,51,150,151,250,251,350,351),
- Mj41E, Mj45E (England & Germany), Mjcf, Mjcfe.Series: Mje.
- Garland Fryer 35-40, 35-50, 70-40, 35-28, Before 10/86
- Montague Fryer J2Xlrsp, R2F2, Mj35.
- Oven 28Cbsf Chinese Bbq.
- Range Series: 136, Montague Ii R, V136, 3418, 3618
