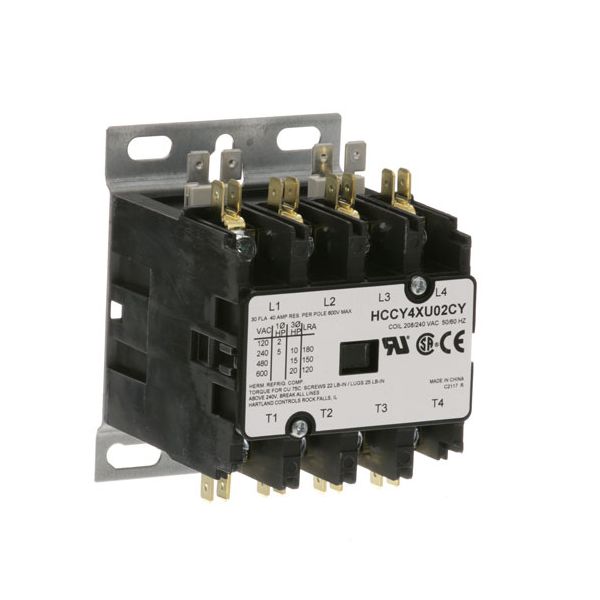

main product photo

Jackson 5945-109-01-69 Dishwasher 4-Pole Contactor 208/240V 30AMP

Be the first to review this product
Special Price $75.33 Regular Price $122.18
In stock
SKU
5945-109-01-69
Add to Wish List
Electrical & Hardware, Contactors,
Manufacturer:
The Jackson 5945-109-01-69 Dishwasher Contactor 4-Pole 208/240V is a high-capacity switch that is used to adjust the amount of electrical power flowing to the motor, heating elements, and other essential elements of the dishwasher. The contactor is mounted in the electrical system of the appliance to provide the stable functioning of several circuits to ensure the safe and effective cleaning processes. This contractor is also commonly used in the kitchens of restaurants and cafeterias.

Dimensions

  • Length: 3.125 In
  • Width: 4 In
  • Height: 3 In
  • Weight: 1.8 lbs
https://partsfe.com/media/catalog/product/j/a/jackson-5945-109-01-69-dishwasher-4-pole-contactor-208-240v-30amp-71096-2.jpg

Product Notes

  • Hartland Contactor
  • 4 Pole
  • 208/240 Volt
  • 30 Amp Inductive, 40 Amp Resistive
  • Groen Steamer
  • Vulcan Fryer, Kettle, Oven Et
CHAMPION:
GENERAL ELECTRIC:
STAR MFG:
Reviews
Write Your Own Review
You're reviewing:Jackson 5945-109-01-69 Dishwasher 4-Pole Contactor 208/240V 30AMP
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jackson 5945-109-01-69 Contactor ?

Turn off power and inspect the contactor regularly for pitted or welded contacts. Tighten loose electrical connections and ensure proper voltage supply to prevent overheating. Clean dust buildup and check for signs of arcing to maintain reliable switching performance.

What are common issues with the Jackson 5945-109-01-69 Contactor ?

  • Contact pitting or erosion causing poor switching.
  • Coil burnout or failure preventing actuation.
  • Overheating due to excessive load or voltage imbalance.
  • Loose terminals leading to intermittent operation.
  • Welded contacts causing continuous circuit closure.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off dishwasher main power and verify zero voltage.

Step2: Remove access panel and disconnect old contactor wiring labeling connections.

Step3: Mount new contactor securely in panel.

Step4: Reconnect wiring to matching terminals per diagram.

Step5: Restore power and test dishwasher operation.
