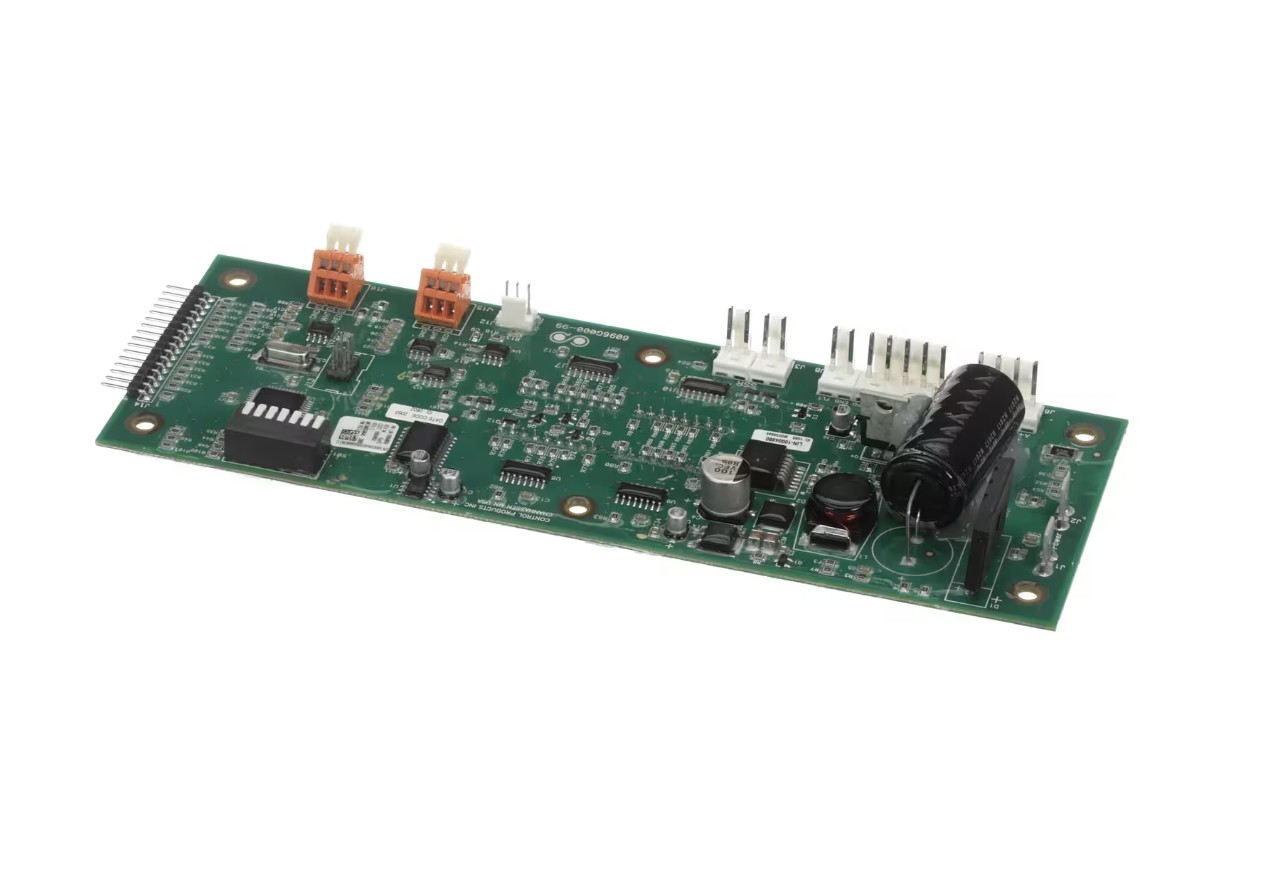

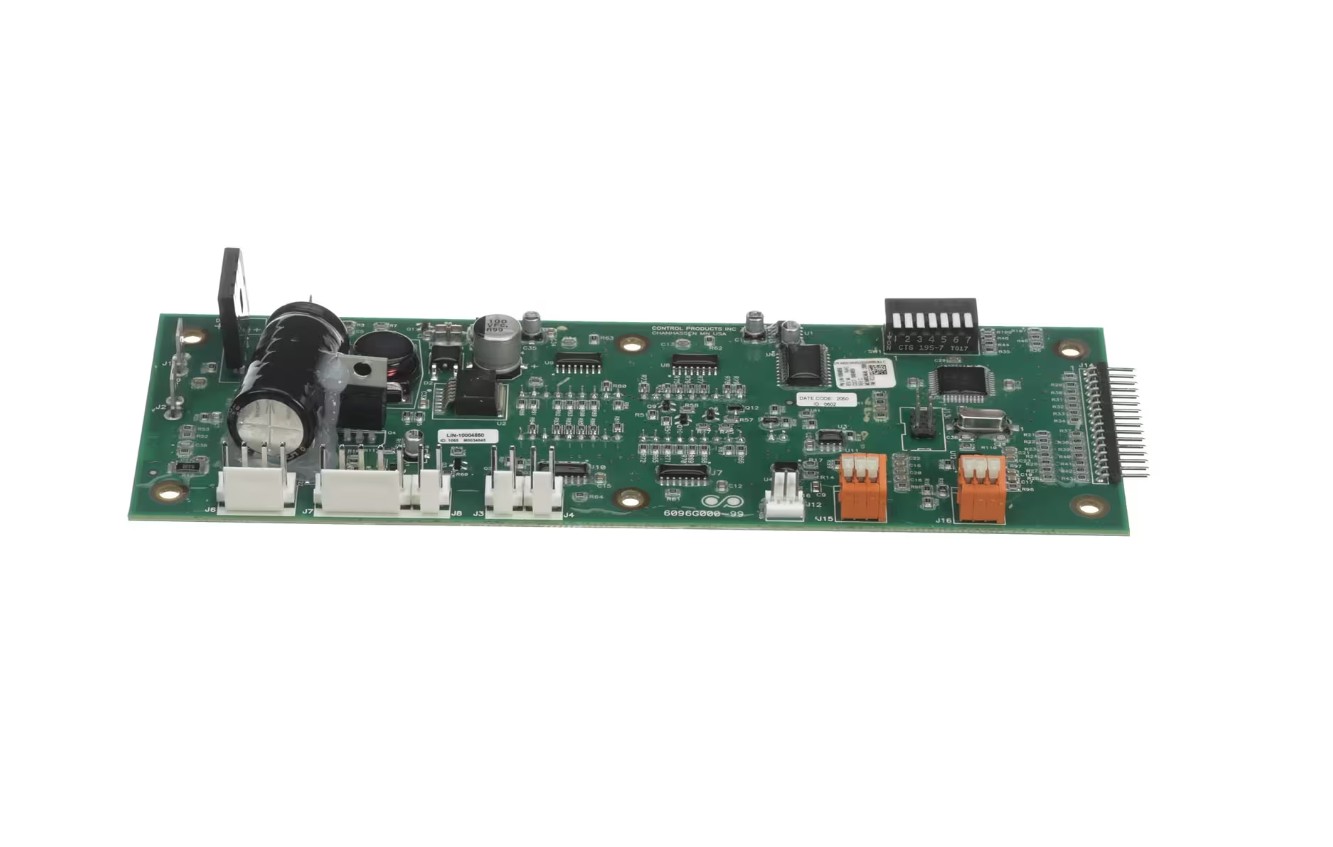

Lincoln 371109 Oven Control Board

SKU: 371109 1-371109 Brand: Availability:
In Stock
(3)

$998.90 Price reduced from $1,104.00
Save $105.10


Have a Question? +1 (866) 863-0907

Description

The Lincoln 371109 Oven Control Board is an electronic regulator component used in commercial systems to manage and coordinate appliance operations. It control operates such as temperature control, heating cycles, air flow timing, and communication between internal electrical components. This board is commonly placed in food service kitchens and high-volume preparation areas where consistent appliance optimal level is required during routine cooking operations. As part of the appliance control system, it assists operators in maintaining stable cooking conditions while supporting proper response from heating elements, motors, and related assemblies within the appliance.

Dimensions:

  • Weight: 1 lbs
  • Length: 7 in
  • Height: 4 in
  • Width: 5 in

An oven control board that manages electronic functions within compatible commercial oven systems by processing signals between user controls and connected oven components. The Lincoln 371109 coordinates operational sequences required for heating cycles and system responses, supporting proper equipment control during cooking operations. Commonly installed inside compatible Lincoln commercial ovens, the board interfaces with the unit’s electrical system to manage communication between control inputs and operating functions.

Equipment Compatibility:
Compatible with selected Lincoln 2500 SERIES ovens, including models 2501, 2502-000, 2504-000, 2512-000, and 2514-000.

Product Specifications:
SKU: 371109
Manufacturer: Lincoln
Product Type: Oven Control Board
Compatible Models: 2501, 2502-000, 2504-000, 2512-000, 2514-000

Key Features:

  • Processes signals between user controls and connected oven components.
  • Coordinates operational sequences required for heating cycles and system responses.
  • Interfaces with the oven electrical system to manage communication between control inputs and connected components.
  • Functions as an electronic control board for managing oven operations.

The oven was having trouble with its control functions, and replacing the faulty control board helped restore normal oven operation.

Step1: Turn off the power to the oven at the breaker to prevent electric shock.

Step2: Remove the access panel to expose the existing control board.

Step3: Disconnect all wiring harnesses and note their positions.

Step4: Unscrew and remove the old control board.

Step5: Install the new control board and secure it with screws.

Step6: Reconnect all wiring exactly as before.

Step7: Replace the board, restore power, and test the system for proper operation.

  • What maintenance is required for the Lincoln 371109 Control Board?

    Keep the control board clean and free from dust or debris using compressed air or a soft brush. Inspect for loose connections or burnt components. Ensure proper grounding and avoid exposure to moisture to maintain secure, accurate oven operation.

  • What are the common issues with the Lincoln 371109 Control Board?

    • Failure to power on or respond to inputs.
    • Erratic or inconsistent control signals.
    • Burnt or damaged circuitry from electrical surges.
    • Short circuits causing tripped breakers or system shutdown.
