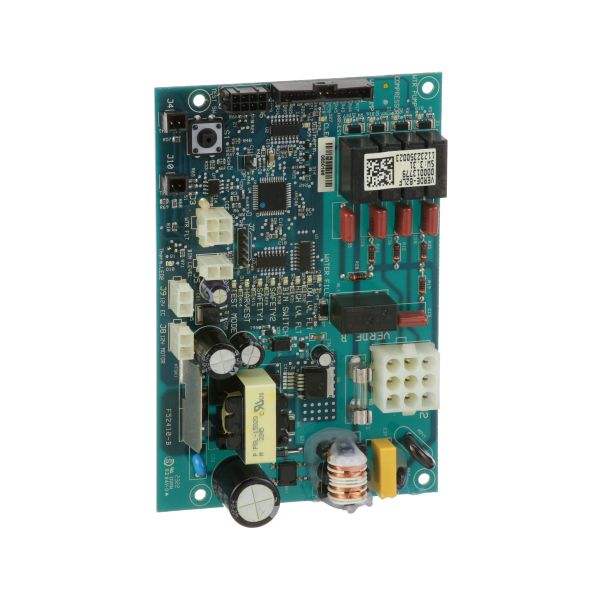

Manitowoc 040005242 Ice Machine Control Board

Product Overview:
Manages electronic signals and coordinates machine functions during ice production. The Manitowoc 040005242 Ice Machine Control Board is an OEM electronic control component for Manitowoc commercial ice machines. Designed for 115V applications, it processes signals from connected components to support the machine’s programmed operating sequence.

Electronic Signal Processing:
The Control Board receives electrical signals from connected components and processes them according to the machine's control logic. This allows the electronic system to determine and coordinate the appropriate responses throughout the ice-making cycle.

Harness Connectivity:
The electrical connections between the control board and designated machine components. Reliable connectivity allows control signals and electrical communication to move between the board and connected systems during normal equipment operation.

Replacement Guidelines:
Replace the Manitowoc 040005242 Control Board when the existing board no longer processes signals or coordinates machine functions reliably. Intermittent operation, unexpected machine behavior, or multiple electronic functions failing at the same time can indicate a control-system issue. Confirm the existing part number, wire harness configuration, voltage, and equipment model before purchasing.

Common Failure Symptoms:

• Ice machine fails to start or operate normally
• Intermittent electronic operation
• Unexpected operating behavior
• Multiple functions stop responding correctly
• Machine stops during the operating cycle

Equipment Compatibility:
The Manitowoc 040005242 Ice Machine Control Board is an OEM electronic control component for Manitowoc commercial ice machines requiring a 115V control board. Verify the complete machine model, existing board part number, voltage requirement, and electrical harness configuration against the manufacturer’s parts documentation before ordering.

Technical Specifications:
Brand: Manitowoc
Part Number: 040005242
Product Type: Control Board
Voltage: 115V
Application: Commercial Ice Machine

Step1: Disconnect power and unplug ice machine and ensure water supply is off.

Step2: Remove access panel to reach control board.

Step3: Label and disconnect wire harness connections.

Step4: Remove faulty board mounting screws and extract unit.

Step5: Install new control board and secure screws.

Step6: Reconnect wire harness per labels.

Step7: Restore power and test operation and check error codes.

• What maintenance is required for the Manitowoc 040005242 Control Board with Wire Harness?

  Regularly inspect the control board and wire harness for loose connections or corrosion. Clean dust buildup carefully using a dry cloth. Ensure stable power supply and proper grounding to prevent electrical damage and maintain reliable ice machine operation.

• What are common issues with the Manitowoc 040005242 Control Board with Wire Harness?

  • Intermittent power failure due to faulty connections.
  • Ice machine not responding because of control board malfunction.
  • Wire harness damage causing signal disruption.
  • Overheating or short circuit from electrical stress.
  • No communication with ice machine components.
