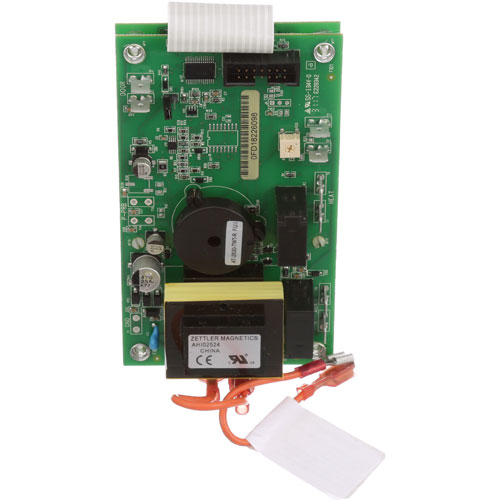

Southbend 1180407 Convection Oven Control Board CCH

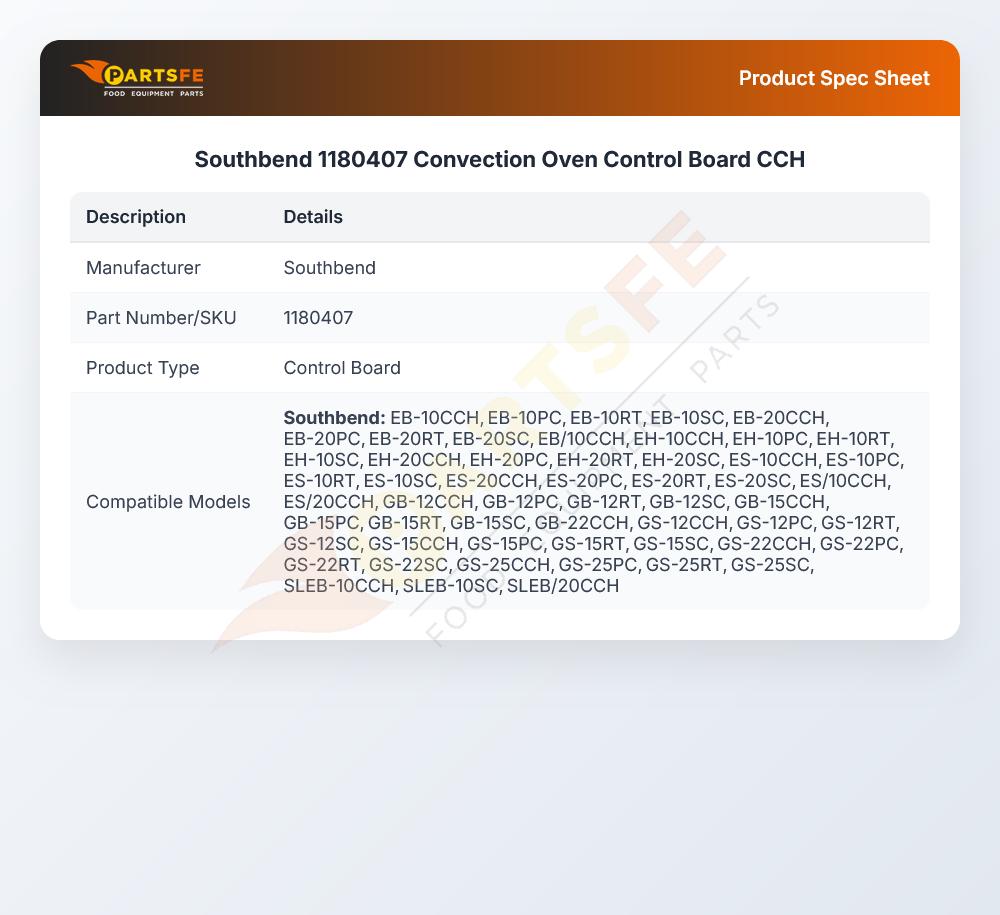

Specifications:
- Control Board/Cch
- Cycle/Cook And Hold Control Board.
- Fits Southbend Models~
- Eb-10Cch, Eb-10Pc, Eb-10Rt, Eb-10Sc, Eb-20Cch, Eb-20Pc,
- Eb-20Rt, Eb-20Sc, Eb/10Cch, Eh-10Cch, Eh-10Pc, Eh-10Rt,
- Eh-10Sc, Eh-20Cch, Eh-20Pc, Eh-20Rt, Eh-20Sc, Es-10Cch,
- Es-10Pc, Es-10Rt, Es-10Sc, Es-20Cch, Es-20Pc, Es-20Rt,
- Es-20Sc, Es/10Cch, Es/20Cch, Gb-12Cch, Gb-12Pc, Gb-12Rt,
- Gb-12Sc, Gb-15Cch, Gb-15Pc, Gb-15Rt, Gb-15Sc, Gb-22Cch,
- Gb-22Pc, Gb-22Rt, Gb-22Sc, Gb-25Cch, Gb-25Pc, Gb-25Rt,
- Gb-25Sc, Gs-12Cch, Gs-12Pc, Gs-12Rt, Gs-12Sc, Gs-15Cch,
- Gs-15Pc, Gs-15Rt, Gs-15Sc, Gs-22Cch, Gs-22Pc, Gs-22Rt,
- Gs-22Sc, Gs-25Cch, Gs-25Pc, Gs-25Rt, Gs-25Sc, Sleb-10Cch,
- Sleb-10Sc, Sleb-20Cch, Sleb-20Sc, Sleb/10Cch, Sleb/20Cch,
Description
Dimensions:
- Weight: 0.56 lbs
- Length: 6 in
- Height: 6 in
- Width: 3.25 in
Step1: Disconnect the oven power before accessing internal components.
Step2: Open the control panel to locate the board assembly.
Step3: Disconnect all wiring harnesses carefully.
Step4: Remove mounting screws and take out the old board.
Step5: Install the new control board in place.
Step6: Reconnect wiring correctly.
-
What maintenance is required for the Southbend 1180407 Control Board?
Regularly inspect the oven control board area for loose wiring, moisture, or grease buildup that could affect electrical connections. Ensure connectors are firmly seated, and the board remains properly mounted. Keep the surrounding compartment clean and dry, and always disconnect power before servicing to prevent electrical hazards.
-
What are common issues with the Southbend 1180407 Control Board?
- Oven not heating consistently.
- Display or controls are unresponsive.
- Temperature settings are not registering.
- Intermittent operation during baking cycles.
-
What are the common issues with the Southbend 1180407 Control Board?
- Oven failing to start or respond to control inputs.
- Inaccurate temperature or cooking cycle control.
- Intermittent operation due to faulty relays or circuitry.
- The display or control panel is not communicating with the board.
- Electrical shorts or burned components are causing the system shutdown.
