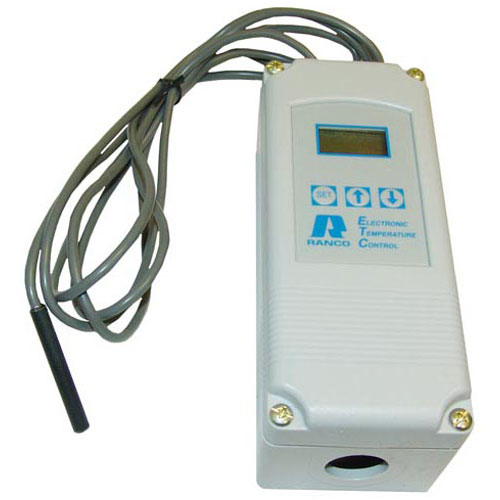

Atlas 22-1397 Electric Temperature Control Single Stage 120/240V

SKU: 22-1397 1-22-1397 Brand:
Atlas
Availability:
In Stock
(0)
$109.52 Price reduced from $168.75
Save $59.23
Have a Question? +1 (866) 863-0907

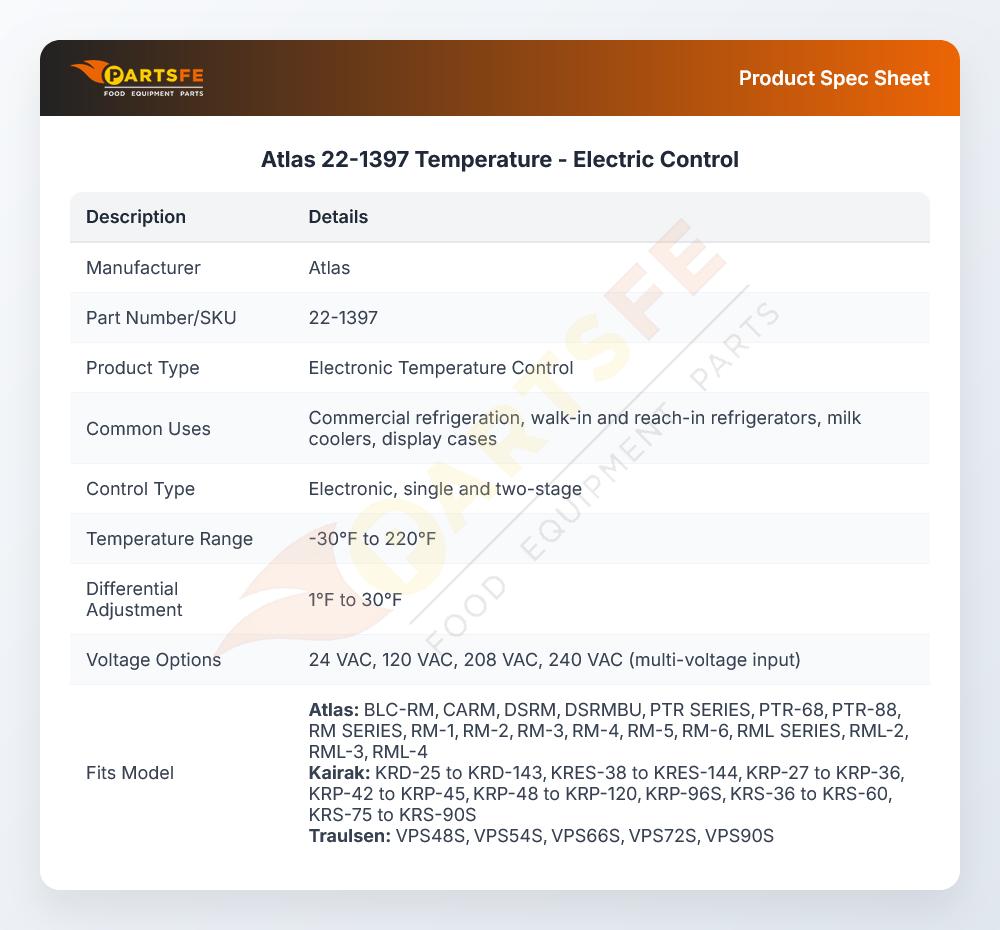

Specifications:

  • Etc Electronic Temperature Control
  • Etc Used In Many Commercial Refrigeration Applications
  • Wide Temperature Range, One And Two Stage Capability
  • Selectable Heating/Cooling Modes And Multi-Voltage Input
  • Etc Is Designed To Provide Application Flexibility
  • Models Available Include 120/208/240 Vac,
  • As Well As Single Stage And Two Stage.
  • Wide Temperature Range (-30°F To 220°F)
  • Wide Different Adjustment (1°F To 30°F)
  • Etc-111000-000 120/208/240 Vac Stage One # 46-1427
  • Etc-112000-000 24 Vac Stage One # 46-1428
  • Etc-141000-000 120/208/240 Vac Stage One #46-1430*(Nema 4)
  • Etc-211000-000 120/208/240 Vac Stage Two # 46-1579
  • Etc-212000-000 24 Vac Stage Two 46-1422
  • Walk-In And Reach-In Refrigerators, Milk Coolers, Displays.

Description

The Atlas 22-1397 Electric Temperature Control regulates appliance cycling by opening or closing contacts as heat reaches the selected setting. Its 120/240V rating identifies the compatible electrical supply, while an internal sensing mechanism responds to surrounding thermal changes. It is installed inside the control compartment, the single-stage design provides one switching point for the connected circuit. Terminals accept corresponding wiring from the equipment harness, and the adjustable control establishes the desired activation threshold. The compact housing mounts at the assigned panel position, integrating temperature-based switching into compatible commercial foodservice equipment.

Dimensions:

  • Weight: 1 lbs
  • Length: 3.5 in
  • Height: 9 in
  • Width: 2.7 in

KAIRAK:

2302100

NORLAKE:

123239

RANCO:

ETC-111000 ETC111000

TRAULSEN:

2302100

U-LINE:

ETC111000-000
