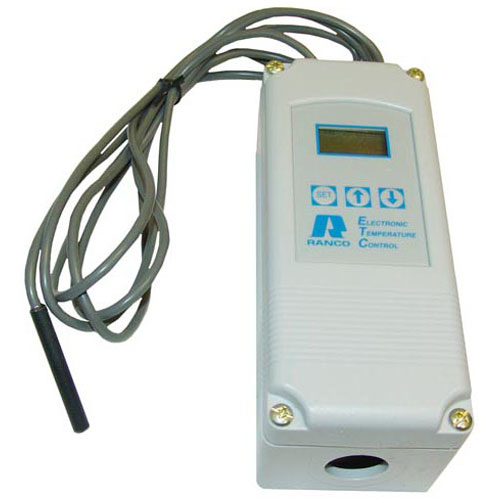

Kairak 2302100 Electric Temperature Control

SKU: 2302100 1-2302100 Brand:
Kairak
Availability:
In Stock
(1)
$109.52 Price reduced from $168.75
Save $59.23
Have a Question? +1 (866) 863-0907

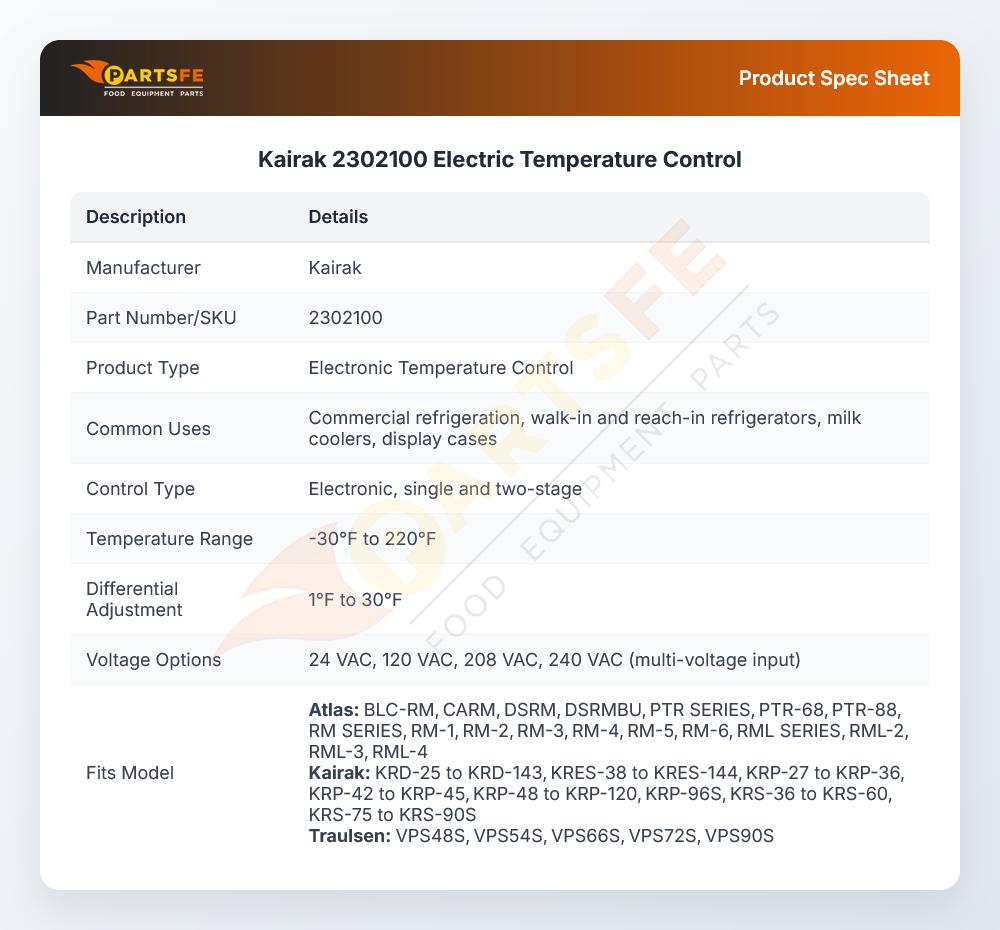

Specifications:

  • Etc Electronic Temperature Control
  • Etc Used In Many Commercial Refrigeration Applications
  • Wide Temperature Range, One And Two Stage Capability
  • Selectable Heating/Cooling Modes And Multi-Voltage Input
  • Etc Is Designed To Provide Application Flexibility
  • Models Available Include 120/208/240 Vac,
  • As Well As Single Stage And Two Stage.
  • Wide Temperature Range (-30°F To 220°F)
  • Wide Different Adjustment (1°F To 30°F)
  • Etc-111000-000 120/208/240 Vac Stage One # 46-1427
  • Etc-112000-000 24 Vac Stage One # 46-1428
  • Etc-141000-000 120/208/240 Vac Stage One #46-1430*(Nema 4)
  • Etc-211000-000 120/208/240 Vac Stage Two # 46-1579
  • Etc-212000-000 24 Vac Stage Two 46-1422
  • Walk-In And Reach-In Refrigerators, Milk Coolers, Displays.

Description

The Kairak 2302100 Electric Temperature Control operates as a refrigeration component that controls temperatures precisely in refrigerators, milk coolers and display units. The Electric Temperature Control works across a broad temperature spectrum from -30°F to 220°F while providing users with one or two-stage control through selectable heating/cooling settings. This provides multiple voltage input options between 120/208/240 VAC and 24 VAC for diverse installation requirements. The ETC enables precise temperature control between 1°F to 30°F which enhances operational reliability and efficiency making it suitable for managing sensitive temperature zones.

Dimensions:

  • Weight: 1 lbs
  • Length: 3.5 in
  • Height: 9 in
  • Width: 2.7 in

ATLAS METAL:

22-1397

NORLAKE:

123239

RANCO:

ETC-111000 ETC111000

U-LINE:

ETC111000-000

Step1: Disconnect power and lock out the unit before accessing controls.

Step2: Remove the control panel cover to reach the existing temperature control.

Step3: Label and disconnect all sensor and power wiring from the old control.

Step4: Mount the new electric temperature control in the same panel opening securely.

Step5: Reconnect wiring to matching terminals according to the wiring diagram.

Step6: Restore power and set required temperature parameters.

  • What maintenance is required for the Kairak 2302100 Electric Temperature Control?

    Inspect electrical connections and ensure terminals remain tight and free from corrosion. Clean dust buildup to prevent overheating and ensure accurate temperature regulation. Regular checks improve performance and reduce failure risk. Always disconnect power before servicing for safety.

  • What are common issues with the Kairak 2302100 Electric Temperature Control?

    • Inaccurate temperature readings due to sensor drift.
    • Unresponsive controls or intermittent signal loss.
    • Overheating caused by faulty relays.
    • Power fluctuations leading to inconsistent operation.
    • Display or indicator malfunction.
