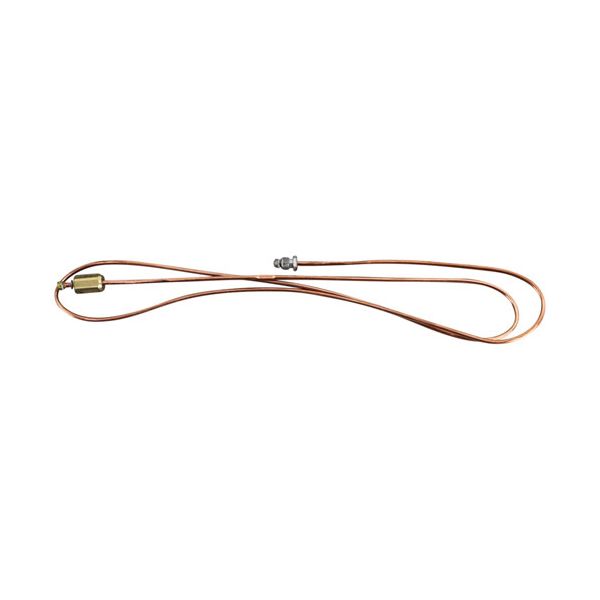

Imperial 36016 Thermocouple Extension End 48"

Rating:
5 5 3
3  Reviews Add Your Review
Special Price $33.98 Regular Price $69.35
In stock
SKU
36016
Add to Wish List
Fryer Parts, Fryer Thermocouples, Shop by manufacturers
Manufacturer:
The Imperial 36016 Thermocouple Extension End 48" is operated by passing the voltage generated by temperature through the sensing tip to the gas control. The long distance enables the signal to pass continuously over the connection. The appliance has this extension that runs between the thermocouple and the control valve. It allows it to be installed flexibly in commercial cooking equipment. The fitting ends can be fitted onto ensure continuity in the temperature sensing circuit during the operation of the burner.

Dimensions

  • Length: 3.5 In
  • Width: 3.5 In
  • Height: 1 In
  • Weight: 0.15 lbs
https://partsfe.com/media/catalog/product/i/m/imperial-36016-extension-thermocouple-48-26844-2.jpg

Product Notes

  • Extension,Thermocouple,
  • 48" Extension, For Thermocouple Ap# 51-1545 And Griddle
  • Control Gas Valve Ap# 46-1746.
  • For Imperial General Use.
IMPERIAL:
Reviews 3
Write Your Own Review
You're reviewing:Imperial 36016 Thermocouple Extension End 48"
Your Rating
Related Posts
  1. How to Troubleshoot and Replace Commercial Fryer Thermocouples Like a Pro
FAQS
Customer Questions
What maintenance is required for the Imperial 36016 Thermocouple Extension?

Regularly inspect the thermocouple extension tip and wiring for corrosion, soot, or looseness. Ensure proper positioning of the pilot flame. Shut off gas and power before servicing.

What are common issues with the Imperial 36016 Thermocouple Extension?

  • Weak or inconsistent pilot flame signal causing burner shutdown.
  • The thermocouple is failing to generate adequate millivoltage for gas valve operation.
  • Loose or corroded connections leading to intermittent heating or ignition failure.
  • Probe misalignment outside the pilot flame causes inaccurate temperature sensing.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the gas supply to the appliance before starting installation.

Step2: Locate the thermocouple near the pilot assembly.

Step3: Disconnect it from the control valve carefully.

Step4: Remove the old thermocouple from its position.

Step5: Install the new one in the same location.

Step6: Reconnect to the control valve securely.

Step7: Restore the gas supply slowly.

Step8: Test pilot flame operation.
