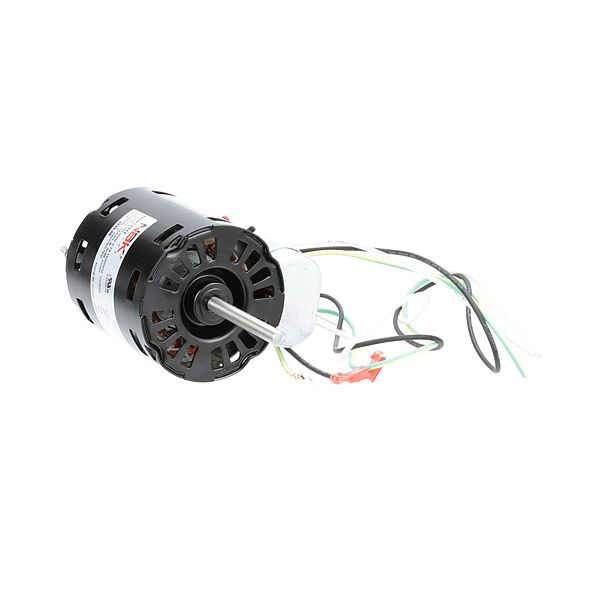

Maintains condenser airflow by powering the fan blade that moves air across the condenser assembly during refrigeration operation. The Manitowoc 2412929 Ice Machine Fan Motor 1/15HP 1550 RPM 0.7A converts electrical energy into rotational motion, driving the connected fan blade to circulate air through the condenser area. This airflow helps transfer heat away from the refrigeration system and supports stable operating temperatures. Rated at 115V and 60Hz, the motor provides the rotational output required for consistent condenser airflow during normal operating cycles.
Airflow Generation:
Drives the condenser fan blade to produce airflow across the condenser coil. Electrical energy supplied to the motor creates rotational movement at the motor shaft, which is transferred to the fan blade. The resulting airflow moves heat away from the condenser and helps maintain the air circulation required during refrigeration operation.
Cooling Air Distribution:
Maintains airflow through the condenser assembly to support heat dissipation from refrigeration components. Consistent air movement helps reduce heat accumulation around the condenser and supports stable operating conditions during extended cycles. Proper airflow also helps the refrigeration system maintain conditions required for consistent ice production.
Replacement Guidelines:
Replace the Ice Machine Fan Motor if it no longer provides proper fan rotation, develops abnormal noise, shows physical damage, or has inconsistent operation. The part number 2412929, 115V voltage rating, and 60Hz frequency should be verified before replacement to ensure the correct fan motor is selected. Replace the fan motor if deterioration affects rotation, airflow, electrical connection, or normal ice machine operation.
Common Failure Symptoms:
- Fan blade does not rotate during the required operating cycle.
- Fan rotation becomes inconsistent or stops intermittently.
- Abnormal noise develops during motor operation.
- Condenser airflow is reduced or absent.
- Visible physical damage is present on the motor.
Equipment Compatibility:
The Manitowoc 2412929 Fan Motor is specified as a 115V, 60Hz motor for applicable equipment configurations. Verify the equipment model, part number, voltage, frequency, motor configuration, and mounting requirements before purchase.
Technical Specifications:
Brand: Manitowoc
Part Number: 2412929
Product Name: Fan Motor
Equipment Type: Ice Machine
Horsepower: 1/15 HP
Speed: 1550 RPM
Current: 0.7A
Voltage: 115V
Frequency: 60Hz
