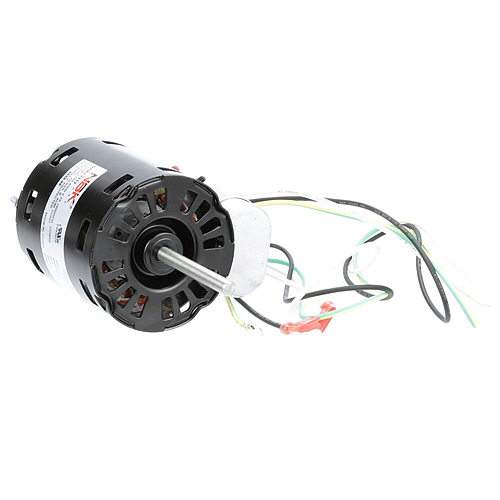

Manitowoc 2412929 Ice Machine Fan Motor 1/15HP 1550 RPM 60HZ 115V 0.9A

Airflow Generation:
Drives the condenser fan blade to produce airflow across the condenser coil. Electrical energy supplied to the motor creates rotational movement at the motor shaft, which is transferred to the fan blade. The resulting airflow moves heat away from the condenser and helps maintain the air circulation required during refrigeration operation.

Cooling Air Distribution:
Maintains airflow through the condenser assembly to support heat dissipation from refrigeration components. Consistent air movement helps reduce heat accumulation around the condenser and supports stable operating conditions during extended cycles. Proper airflow also helps the refrigeration system maintain conditions required for consistent ice production.

Replacement Guidelines:
Replace the Ice Machine Fan Motor if it no longer provides proper fan rotation, develops abnormal noise, shows physical damage, or has inconsistent operation. The part number 2412929, 115V voltage rating, and 60Hz frequency should be verified before replacement to ensure the correct fan motor is selected. Replace the fan motor if deterioration affects rotation, airflow, electrical connection, or normal ice machine operation.

Common Failure Symptoms:

• Fan blade does not rotate during the required operating cycle.
• Fan rotation becomes inconsistent or stops intermittently.
• Abnormal noise develops during motor operation.
• Condenser airflow is reduced or absent.
• Visible physical damage is present on the motor.

Equipment Compatibility:
The Manitowoc 2412929 Fan Motor is specified as a 115V, 60Hz motor for applicable equipment configurations. Verify the equipment model, part number, voltage, frequency, motor configuration, and mounting requirements before purchase.

Technical Specifications:
Brand: Manitowoc
Part Number: 2412929
Product Name: Fan Motor
Equipment Type: Ice Machine
Horsepower: 1/15 HP
Speed: 1550 RPM
Current: 0.7A
Voltage: 115V
Frequency: 60Hz

Step1: Disconnect power to the ice machine to prevent shock.

Step2: Remove the fan guard or access panel to reach the motor.

Step3: Install the new motor and attach the fan blade securely.

Step4: Reconnect wiring and ensure all connections are tight.

Step5: Replace the panel, restore power, and test fan operation.

• Is a noisy fan motor normal in a Manitowoc ice machine?

  Some noise from the fan motor is normal during operation, but loud or unusual noises could indicate a problem. If the noise is disruptive or different from usual, consider having it inspected.

• Can I clean the fan motor of my Manitowoc ice machine?

  Cleaning the exterior of the fan motor and its surrounding area is important to prevent dust and debris buildup, which can affect performance. Use compressed air or a soft brush to gently remove dirt.

• Can I replace a faulty fan motor in my Manitowoc ice machine?

  Yes, a faulty fan motor can be replaced. It's recommended to consult the manufacturer's guidelines or seek professional assistance for proper installation.

• What maintenance is required for the Manitowoc 2412929 Fan Motor?

  Regularly check the fan blades for debris or buildup and ensure they rotate smoothly. Inspect motor mounts and electrical connections for secure attachment. Monitor the motor for unusual noises or vibration during operation to maintain proper airflow.

• What are common issues with the Manitowoc 2412929 Fan Motor?

  • Fan blades wobbling.
  • Motor making unusual buzzing sounds.
  • Reduced airflow across the evaporator.
  • Motor intermittently stops during operation.

• What is the Manitowoc 2412929 used for?

  The 2412929 drives the fan used to provide airflow within the ice machine's refrigeration system.

• How does the fan motor generate condenser airflow?

  The motor converts electrical energy into rotational movement, which turns the connected fan blade and creates airflow across the condenser.

• What can affect fan motor performance?

  Electrical supply issues, motor wear, mechanical resistance, fan obstruction, or deterioration of related components can affect motor operation.

• Why is condenser airflow important?

  Airflow helps remove heat from the condenser and supports stable refrigeration-system operating conditions.

• What should be checked before selecting a replacement motor?

  Verify the equipment model, part number, 115V voltage, 60Hz frequency, mounting configuration, and other applicable motor specifications.
