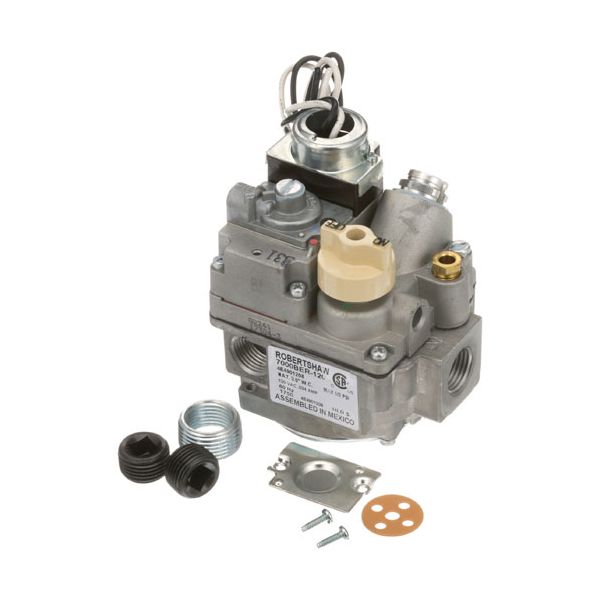

Frymaster FM810-2156 Fryer Safety Control Valve NG 1/2" FPT IN X 3/4" FPT Out 120V
Special Price $216.60 Regular Price $333.75
In stock
SKU
FM810-2156
Manufacturer:
The Frymaster FM810-2156 Fryer Safety Control Valve NG 1/2" FPT IN X 3/4" FPT Out regulates natural gas flow through an electrically operated mechanism integrated into the control system. When a 120V signal is supplied, the valve opens to direct gas toward the burner assembly during active heating periods. Removal of the signal causes the valve to return to a closed state, interrupting fuel movement through the connected circuit. This sequence assists in coordinating gas delivery with the equipment's operating cycle. It is installed in compatible commercial cooking equipment as part of the gas management assembly designated for burner engagement and controlled shutdown procedures.
Dimensions
- Length: 5.75 In
- Width: 4.75 In
- Height: 3.5 In
- Weight: 2.282 lbs
Product Notes
- Nat Gas Safety, 1/2" Fpt In, 3/4" & 1/2" Out. W/ (2) 1/2"
- Side Outs W/ Plugs, 3/4" X 1/2" Reducer Bushings,
- 1/4" Cct Pilot Out, Uses Thermocouple.
- For Nat To Lp Gas Conversion Kit Use # 51-1470
- Model 7000 Ber-120, 120 Vac Actuator, Mfg# 700-452
- Dean Fryer 1824/2424G, 1824G, 2424G, D20, D50,
- D50G, D50Gdd, D60, D60Gs, D80, Fpd65, Fphd65, Tb14
- Henny Penny Fryer 600, Og- 301,302,303
- Market Forge Oven 2500, 2700
- Gas Tilt Skillet 1500 1700,
- Southbend Kettle Kslg W/Standing Pilot. Oven X,Xs
- Vulcan Tilt Skillets Model E-30-C, E-30-O, E-40-C, E-40-O,
- G-30-C,G-30-O, G-40-C, G-40-O
