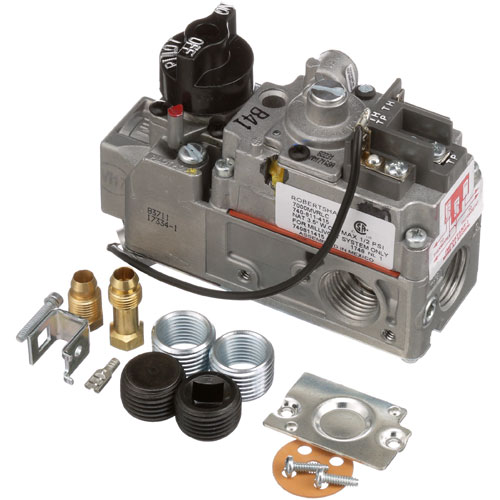

Lang 80505-01 Natural Gas Control Valve 1/2"

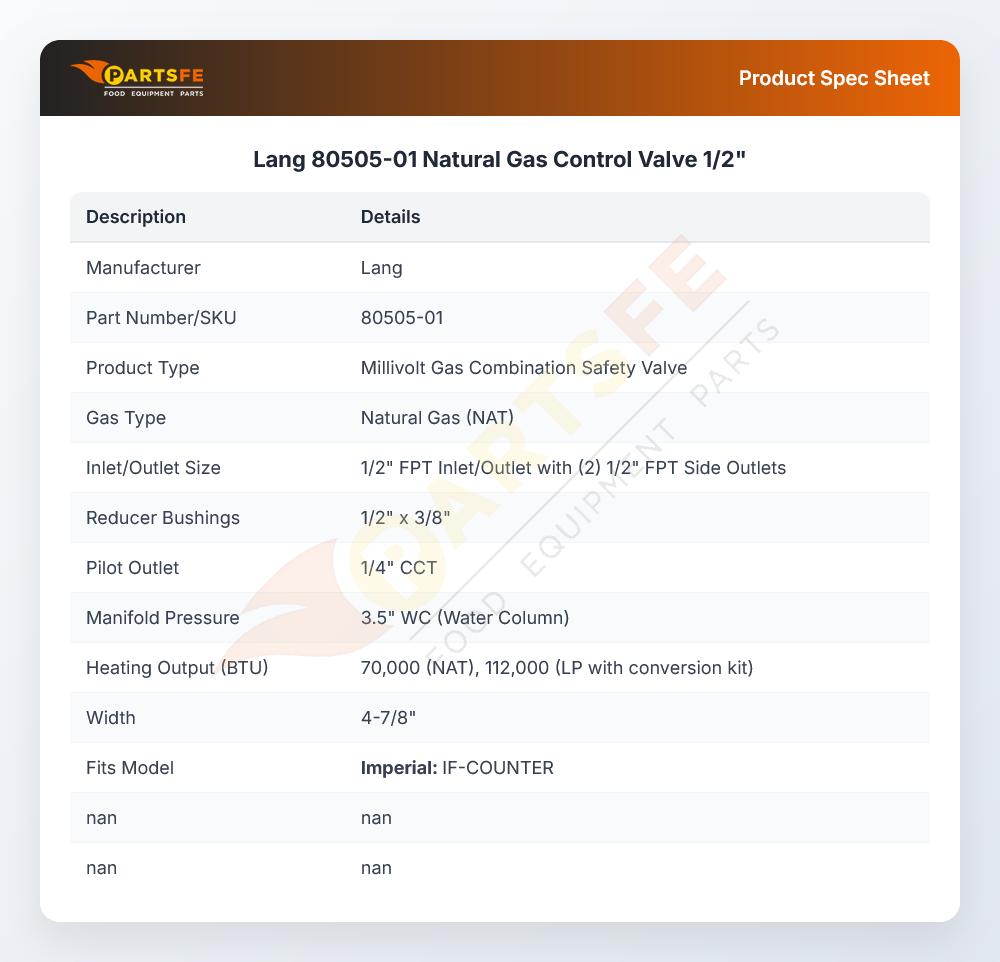

Specifications:
- Nat Gas Safety, 3.5" Wc
- [ 1/2" Fpt In/Out W/ (2) 1/2" Fpt Side Outs][ 1/2" X 3/8"
- Reducer Bushings ] [ 1/4" Cct Pilot Out ] [ Low Profile ]
- [ Width 4-7/8" ] [ 70,000 Btu ] [ Brand Rs ] 7000-Mvrlc
- [ Mfg# 710-502 ], 750 Millivolt, Requires Wire Lead
- Thermopile # 51-1121.
- Lp = 112,000 Btu, This Valve Is Nat.
- It Comes With A Cover Plate For Most Lp Applications.
- However, Some Applications May Need An Adjustable
- Lp Regulator, In Which Case They Will Need To
- Purchase A # 51-1184 Conversion Kit.
- Imperial Model?
- Star Fryer 404A, 615F(A), 630F(A).
- Wells Griddle Wg2424G, Wg2436G, Wg3036G, Wg3048G
Description
Dimensions:
- Weight: 2 lbs
- Length: 5.75 in
- Height: 3.5 in
- Width: 4.5 in
Step1: Shut off gas and electrical power, then check zero gas flow using proper test equipment.
Step2: Remove front panel and label all gas line and electrical connections for reference.
Step3: Disconnect old valve from inlet/outlet fittings and pilot tubing, then remove mounting hardware.
Step4: Install the new control valve, ensuring correct flow direction and secure threaded connections.
Step5: Reconnect pilot and main gas lines, tighten all fittings, restore supply, and test for leaks and proper burner ignition.
-
What maintenance is required for the Lang 80505-01 Natural Gas Control Valve?
Inspect the gas control valve regularly for leaks, corrosion, or worn seals to ensure better operation. Keep the valve and surrounding area clean and free from grease buildup. Verify smooth knob or actuator movement and ensure proper gas flow response. Always perform leak checks after servicing using approved methods.
-
What are common issues with the Lang 80505-01 Natural Gas Control Valve?
- Gas leakage due to worn internal seals.
- Valve sticking or difficulty turning.
- Inconsistent or restricted gas flow.
- Failure to fully open or close.
- Internal contamination causing burner performance issues.
