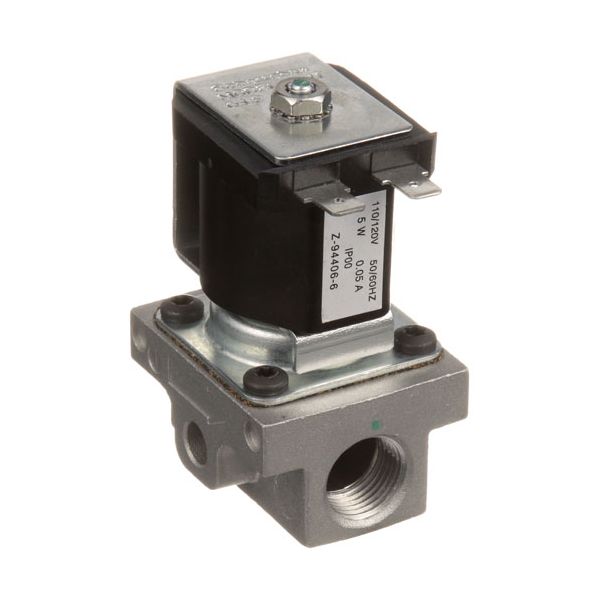

Provides electrically controlled gas flow management for the burner circuit. The Imperial 1134 Range Gas Safety Solenoid Valve operates at 120V, 50/60Hz and uses an electrically actuated mechanism to control the gas supply path. When the appropriate electrical signal is applied, the valve changes position to permit gas flow, when the signal is removed, the valve returns to its closed state.
Gas Flow Control:
Controls the movement of gas through the supply pathway using an electrically operated solenoid mechanism. The internal valve position changes in response to the electrical signal from the equipment control circuit, allowing gas delivery to be coordinated with the required operating sequence.
Solenoid Actuation:
Uses an electromagnetic coil to generate the force required to move the internal valve mechanism. The 120V electrical input energizes the coil when activation is required, producing the mechanical movement necessary to open the gas pathway. Removal of the electrical signal allows the valve mechanism to return to its normal closed position.
Replacement Guidelines:
Replace the Range Gas Safety Solenoid Valve if it is damaged, corroded, leaking, or no longer provides proper gas-flow control. The part number 1134, 120V voltage specification, and 50/60Hz frequency should be verified before replacement to ensure the correct gas safety solenoid valve is selected. Replace the valve if deterioration affects gas flow control, valve operation, connection integrity, or normal range operation.
Common Failure Symptoms:
- Gas flow remaining closed when activation is required.
- Valve failing to respond to the electrical signal.
- Visible damage to the valve or coil assembly.
- Irregular gas delivery associated with improper valve operation.
Equipment Compatibility:
The Imperial 1134 Gas Safety Solenoid Valve is specified for equipment requiring a 120V, 50/60Hz, 5W solenoid valve configuration. Verify the equipment model, part number, electrical specifications, and valve configuration before purchase.
Technical Specifications:
Brand: Imperial
Part Number: 1134
Product Name: Gas Safety Solenoid Valve
Voltage Rating: 120V
Frequency: 50/60Hz
Equipment Type: Commercial Range
