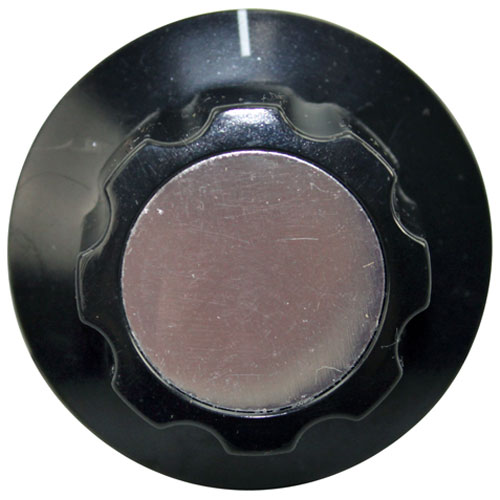

Garland GL1765802 Pointer Knob 2'' DIA

SKU: GL1765802 1-GL1765802 Brand:
Garland
Availability:
In Stock
(0)
$10.70 Price reduced from $40.95
Save $30.25
Have a Question? +1 (866) 863-0907

Specifications:

  • 2" Dia, Pointer, Mount 1/4" Round, Set Screw Bottom, For
  • Potentiometer, Timer, And Temp Controller.
  • Bakers Pride Oven Px 14, 16, Bk18, P18S~
  • Blodgett Oven
  • Series: Ctb,Ctbr,Dfg,Mark V,Zephaire E&G W/ Solid State
  • Controls~
  • Cres-Cor Warmer Cxc-4935, H-137-Cdd-Ua12Hh,
  • H-302-(126,128),Ht-20A,Ht-2040,Hu-12-1939-(2,3),
  • Hu-18-671-34D. Series: 130, 131, H-(135,138,175,186),
  • H-339-(128,188, 1813C, 188-3,188-Pt)~
  • Proofer Series: 120Ph
  • (Air Or Water), Phu Power Units~
  • Duke Convection Oven 613
  • (All Knobs) 613 Oven E Series, Ahpo-6/18 Gold, Ahpo-6/18
  • Gold Ce, Epo-3/9~
  • Garland Model Cbo-Ed-11, And More.

Description

The Garland GL1765802 Pointer Knob 2" DIA is used by turning on the shaft to change the adjustment of the control being attached, the pointer indicating the choice. Mechanical connection transfers the movement to the internal control mechanism to set adjustment when the knob is turned. This is a knob on the front control panel of compatible equipment where operating levels are chosen. The built-in pointer is able to align with panel markings. Its shape and shaft design are in line with typical control designs of commercial foodservice equipment.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2 in
  • Height: 1 in
  • Width: 2 in

APW WYOTT:

8704600

BAKERS PRIDE:

2R-8704600 51311X 8704600 BKP51311X S1311X

BLODGETT:

15934 16686 16886 17212 90054 BL15934 BL16686 BL16886 BL17212 BL90054

CRES COR:

0595 061 0595-061 0595061 595-061 CRE0595-061 CRE595-061

DUKE:

153142 DUK153142

FRANKLIN CHEF:

7912063

GARLAND:

1765802

HOBART:

01-30U004 1-30U004 HOB01-30U004 HOB1-30U004

MONTAGUE:

24663-8 25378-2 MON24663-8

PITCO:

25378-2 P6071270 PT25378-2 PTP6071270

STAR MFG:

2R-40588 2R-Y7690 2RY7690 60588 WS-60588 Y7690

STERO:

STA2R-Y7690 STAY7690

Step1: Turn off equipment and ensure all burners or heating elements are cool before handling controls.

Step2: Pull off the old knob by gently gripping and sliding it straight off the shaft without forcing.

Step3: Align the new knob with the D-shaped shaft, matching pointer direction to control marking.

Step4: Push firmly until fully seated, then test rotation for smooth operation and correct setting response.

  • What maintenance is required for the Garland GL1765802 Knob Pointer?

    Clean the knob and pointer regularly to remove grease and debris buildup. Inspect for looseness or damage on the shaft connection. Tighten fittings when needed and ensure smooth rotation. Proper care maintains accurate control and safe operation.

  • What are common issues with the Garland GL1765802 Knob Pointer?

    • Knob becomes loose on shaft causing inconsistent control.
    • Pointer misalignment leads to inaccurate setting readings.
    • Stiff or jammed rotation due to internal damage or debris.
    • Cracking or breakage of knob under heavy use.
