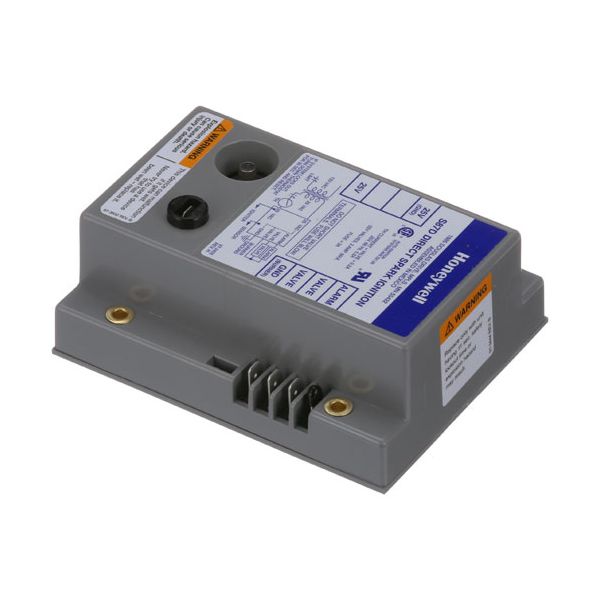

Frymaster 8070918 Spark Ignition Module 11-Seconds 3 AMP 25V

Be the first to review this product
Special Price $210.18 Regular Price $340.89
Out of stock
SKU
8070918
Add to Wish List
Electrical & Hardware, Ignition Modules, Shop by manufacturers
Manufacturer:
The Frymaster 8070918 Direct Spark Ignition Module Lockout 5EA 1/4" Tab Terminals operates by receiving a call-for-heat signal and generating a high voltage to ignite the gas-air mixture at the burner during the startup sequence. It operates through an internal control circuit that activates the spark electrode while also coordinating gas valve opening, and it monitor flame presence to confirm ignition. If flame is not detected within the preset 11-second time frame, the module triggers a lockout to stop operation until reset.

Dimensions

  • Length: 5.125 In
  • Width: 4 In
  • Height: 2 In
  • Weight: 1.2 lbs
https://partsfe.com/media/catalog/product/f/r/frymaster-8070918-direct-spark-ignition-module-w-11-sec-lockout-5ea-1-4-tab-terminals-94912-2.jpg

Product Notes

  • 25V Direct Spark Ignition Module,
  • 11 Sec Lockout, 5Ea 1/4" Tab Terminals, 3 Amp Fuse (Ap#
  • 381050),
  • Rajah Spark Term & 1/4" Spark Term On Top.
  • 4" X 5-1/16"
  • For Use With A Flame Sensor And Ignitor.
  • Before 1998 Use Spark Cable 27", # 38-1334
  • 1998 And After Use 20" Spark Cable, # 38-1363
  • Frymaster
  • Fryer Fh250, G18Fb, G24Fb, Gl18Fb,
  • Gl24Fb, He, Mach52, Mjh50.
GILES:
LEGION:
Reviews
Write Your Own Review
You're reviewing:Frymaster 8070918 Spark Ignition Module 11-Seconds 3 AMP 25V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Frymaster 8070918 Direct Spark Ignition Module?

Inspect the ignition module’s tab terminals for tight, clean connections and signs of heat damage. Keep the control area free from grease and moisture that can affect electrical performance. Verify secure mounting and proper airflow to prevent overheating. Disconnect power before servicing to avoid electrical shock.

What are common issues with the Frymaster 8070918 Direct Spark Ignition Module?

  • Failure to generate a spark during startup.
  • Intermittent ignition or delayed burner lighting.
  • Loose or damaged wiring connections.
  • Ignition lockout caused by faulty grounding.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect fryer from power and shut off the gas supply before starting.

Step2: Access the control panel and locate the existing ignition module.

Step3: Label and remove the wires from the old module’s terminals.

Step4: Remove mounting screws and take out the faulty module.

Step5: Mount the new module securely in the same position.

Step6: Reconnect wires to the matching tab terminals.

Step7: Restore power and gas, then test ignition for proper operation.
