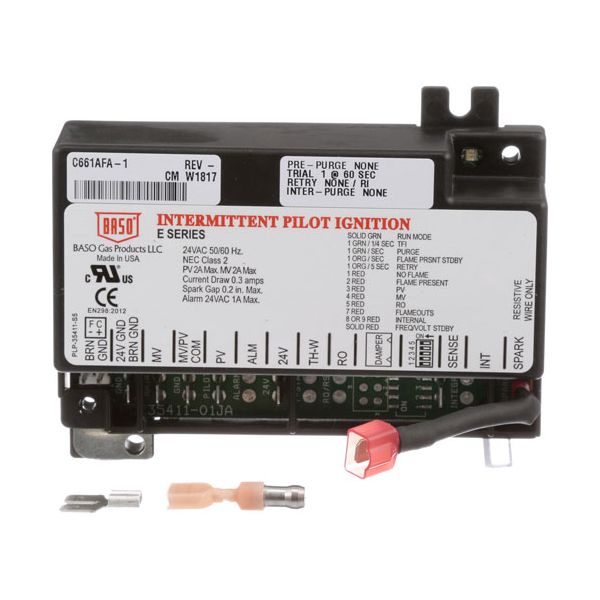

main product photo

Jade Range 4625100000 Oven NAT/LP Gas Ignition Control Box 24V

Rating:
5 5 1
1  Review Add Your Review
Special Price $130.71 Regular Price $166.57
In stock
SKU
4625100000
Add to Wish List
Electrical & Hardware, Power Supply/Power Cords,
Manufacturer:
The Jade Range 4625100000 NAT/LP Gas Ignition Control Box is an component that is suitable for 24V natural or propane gas ovens. It replaced the previous model G770MGA-2, with 0 second prepurge, 50 second trial time, no retry, and 15 second inter-purge. Designed for US Range ovens and Garland, it aids the following models: Master Series, ECO-E-10, and MCO-G-5. The unit also comes with an adaptor to make it fit perfectly to the existing system. This ignition control box improves safety, performance and convenience making it a must for accurate and consistent oven ignition.

Dimensions

  • Length: 3.125 In
  • Width: 5.125 In
  • Height: 7 In
  • Weight: 0.62 lbs
https://partsfe.com/media/catalog/product/j/a/jade-range-4625100000-oven-nat-lp-gas-ignition-control-box-24v-27944-2.jpg

Product Notes

  • Black Baso Ignition Control Box.
  • Ign Module 24V, Nat/Lp Gas, ( Replaces Old # G770Mga-2 ),
  • 0 Sec Prepurge, 50 Sec Trial, No Retry, Inter-Purge 15 Sec.
  • Old Spark Post Ignition Cable Use # 38-1339
  • Includes Adaptor, Round Post To 1/4" Female Tab Term,
  • # 85-1071.
  • Garland Oven All Convection Ovens With Lp Gas & Electronic
  • Ignition. R280, Master Series, Cg-24R, Cg-36R, Cg-48R,
  • Cg-60R, Cg-72R, Eco-E-10, Eco-E-25, Gaw-24, Gaw-36, Gaw-48,
  • Gaw-60, Gaw-72, Ico-E-10, Ico-E-25, Mco-G-5 (Except
  • Foreign Units).
  • Us Range Oven Sdg-1, Sdg-2 Lp Units
Reviews 1
Write Your Own Review
You're reviewing:Jade Range 4625100000 Oven NAT/LP Gas Ignition Control Box 24V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jade Range 4625100000 Gas Ignition Control Box?

Inspect oven wiring connections and ignition terminals regularly for corrosion or looseness. Keep the control box clean and dry to prevent moisture damage. Ensure proper voltage supply and test ignition response.

What are common issues with the Jade Range 4625100000 Gas Ignition Control Box?

  • No ignition spark or intermittent ignition failure due to faulty relay or board damage.
  • Moisture intrusion causing short circuits.
  • Voltage irregularities leading to inconsistent startup.
  • Overheating or complete control lockout from component failure.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the oven and disconnect electrical and gas supplies before servicing.

Step2: Allow the unit to cool completely, then remove the access panel to reach the ignition control box.

Step3: Label and disconnect all wiring connections from the old ignition module.

Step4: Remove the mounting hardware and install the new control box securely in the same position.

Step5: Reconnect all wires and ignition leads according to the original configuration.

Step6: Restore gas and power, then test the ignition cycle for proper burner startup and flame control.
