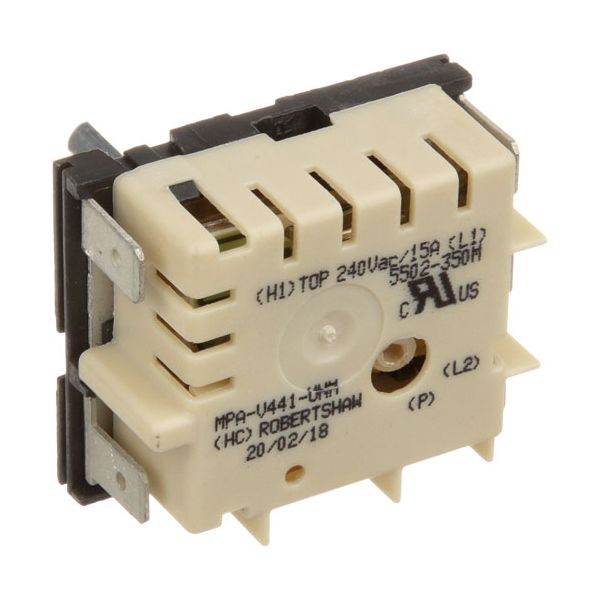

Star Mfg 2E-Z21563 Range Infinite Switch

Be the first to review this product
Special Price $75.59 Regular Price $106.77
In stock
SKU
2E-Z21563
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Star Mfg 2E-Z21563 Range Infinite Switch is a control that is applied in electric ranges to control heating element. It regulates the amount of heat sent to the cooktop by changing the amount of electrical current sent to the burner to enable the acuurate control of temperature during cooking. It is mounted behind the control panel of the range and used as an interface between the user and the heating element and allows easy transition between settings. Being a vital part of the range, it is stable, which promotes the work of the appliance and enables other systems, including timers and safety measures, to operate properly.

Dimensions

  • Length: 1.7 In
  • Width: 1.7 In
  • Height: 2.5 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/s/t/star-mfg-2e-z21563-range-infinite-switch-34796-2.jpg

Product Notes

  • Infinite Switch, 240V, 15 Amp, Palnut Mount, Flat Up
  • Merco Dial # 22-1242
  • Star Broiler, Hot Dog Steamer Dial # 22-1260
  • Star Bun & Food Warmer Dial # 22-1349
  • Star Knob [ Off-Hi-6-2-Lo] # 22-1300
  • Eagle Metal Masters Warmer 7Qdi, 7Qt, 11Qdi, 11Qt,
  • Bm1220Fw,Lcw-120, Lcw-2-120, Tm1220Fw.
  • Series: 1200(Cwd,Fwd,Fwe), 1200Swd Fw (Prior To 1/90).
  • Hobart Model?
  • Merco Warmer All Overhead Type Warmers.
  • Star Broiler Hot Dog Broiler: 174, 175. (Not Cba, Sba).
  • Warmer 130Dir, 138Dir, 139Dir.
  • 11C-B, 174, 175, 502D, 502Ds, 502Fa, 502Fd, 502Fz, 502Z,
  • 5124Cb, 5124Cd, 5124Cz, 5136Cb, 5136Cd, 5136Cz, 7C-B
BEVLES:
CECILWARE:
DELFIELD:
DELSEP90024, SEP90024
GRINDMASTER:
STERO:
STA2E-Z21563, STA2E-Z22954, STA2J-6403, STA2J6403, STA6403
U-LINE:
5501-350, INF240-76
Reviews
Write Your Own Review
You're reviewing:Star Mfg 2E-Z21563 Range Infinite Switch
Your Rating
FAQS
Customer Questions
What maintenance is required for the Star Mfg 2E-Z21563 Infinite Switch?

Regularly inspect the switch terminals and wiring connections for signs of overheating, corrosion, or loose fittings. Keep the control area free from grease and moisture buildup to ensure accurate heat regulation. Verify smooth operation and disconnect power before performing any servicing.

What are common issues with the Star Mfg 2E-Z21563 Infinite Switch?

  • Electrical failure or intermittent heating due to worn contacts.
  • Overheating causing inconsistent temperature control.
  • Switch not responding or stuck positions.
  • Loose wiring connections leading to power loss.
  • Arcing or burnt contacts causing erratic operation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect range power at breaker, and verify no voltage.

Step2: Remove control panel knob and securing screws to access switch housing.

Step3: Note and label wire connections carefully before removal to ensure correct reassembly.

Step4: Detach old switch and mount new unit in same orientation.

Step5: Reconnect wires per labeling securely and check tight terminals.

Step6: Reassemble panel, restore power, and test heat settings carefully for proper operation.
