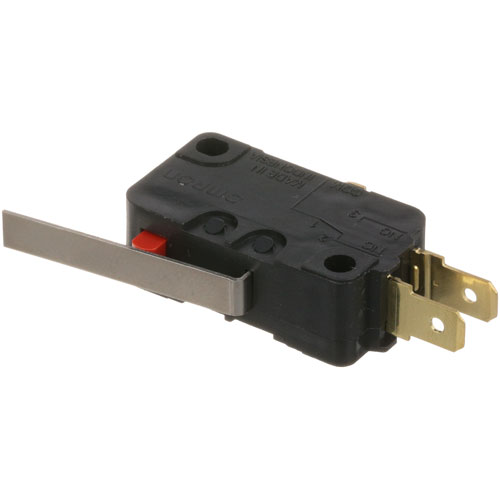

TurboChef 102012 Interlock Switch W/ 3/16" Tab, 16A/250VAC

SKU: 102012 1-102012 Brand:
TurboChef
Availability:
In Stock
(0)
$11.00
Have a Question? +1 (866) 863-0907

Specifications:

  • Intrlock Switch,
  • 16A/250Vac, (3) 3/16" Tab Term
  • Turbo Chef Convection Oven: Hhb2,
  • Convection & Microwave Oven: Ngc, Ngc2, I3, I5

Description

The TurboChef 102012 Interlock Switch is an electrical contact that is opened or closed by a door or panel motion with an internal actuator and contacts rated at 16 A/250 VAC with 3/16" tab connections. The contacts of the switch are switched to permit or interrupt power flow when the associated access point is closed and the reverse when it is opened to control a safety or operational circuit. It is mounted in the access system of compatible ovens and cooking appliances, where it is mounted such that the door or panel will contact the actuator.

Dimensions:

  • Weight: 0.02 lbs
  • Length: 2.5 in
  • Height: 1 in
  • Width: 1.5 in

SOUTHBEND:

1142000 1168300 SOU1142000 SOU1168300

TURBOCHEF:

TBC102012

Step1: Disconnect power and unplug appliance for safety.

Step2: Remove access panel carefully using proper tools.

Step3: Locate existing interlock switch assembly near door latch mechanism.

Step4: Label and disconnect wiring terminals one by one.

Step5: Remove mounting screws securing old switch in place.

Step6: Install new switch, align tab with latch actuator correctly.

Step7: Reconnect wires, secure panel, restore power and test operation carefully.

  • What maintenance is required for the TurboChef 102012 Interlock Switch?

    Inspect the interlock switch regularly for wear, loose wiring, or misalignment. Clean contacts gently to prevent debris buildup and ensure accurate operation. Proper maintenance can avoid safety faults and ensures consistent equipment performance.

  • What are common issues with the TurboChef 102012 Interlock Switch?

    • Switch fails to close circuit leading to no power signal.
    • Intermittent operation due to worn contacts or vibration.
    • Misalignment causing door interlock error and shutdown.
    • Burnt or pitted contacts reducing accuracy.
