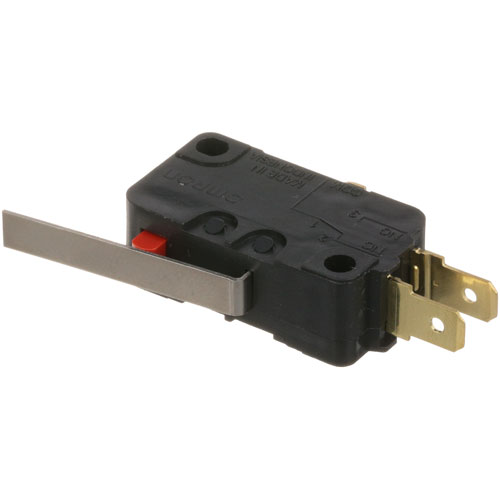

TurboChef TBC102012 Interlock Switch W/ 3/16" Tab, 16A/250VAC

SKU: TBC102012 1-TBC102012 Brand:
TurboChef
Availability:
In Stock
(0)
$11.00
Have a Question? +1 (866) 863-0907

Specifications:

  • Intrlock Switch,
  • 16A/250Vac, (3) 3/16" Tab Term
  • Turbo Chef Convection Oven: Hhb2,
  • Convection & Microwave Oven: Ngc, Ngc2, I3, I5

Description

The TurboChef TBC102012 Interlock Switch is an electrical button that has internal contacts that change when a door or panel is moved and uses a 3/16" tab to connect electrical contacts and supports up to 16 A at 250 VAC. The contacts of the switch are closed or opened by switching the associated access point, which is used to switch the power flow. It is attached to the inside of the access mechanism of compatible ovens and cooking systems in such a way that the actuator is activated.

Dimensions:

  • Weight: 0.02 lbs
  • Length: 2.5 in
  • Height: 1 in
  • Width: 1.5 in

SOUTHBEND:

1142000 1168300 SOU1142000 SOU1168300

TURBOCHEF:

102012

Step1: Turn off electrical power and secure unit with lockout/tagout procedures.

Step2: Open access panel to reach the existing door interlock switch assembly.

Step3: Disconnect wiring terminals and note original connections.

Step4: Remove mounting screws and extract the defective switch.

Step5: Position and secure the new interlock switch in place.

Step6: Reconnect wiring, reinstall panel, restore power, and check door safety shutoff operation.

  • What maintenance is required for the TurboChef TBC102012 Interlock Switch?

    Inspect the interlock switch regularly for damage, misalignment, or loose mounting. Clean surrounding debris to ensure proper actuation and accurate safety connection. Check electrical terminals for tight connections and signs of arcing. Replace immediately if intermittent switching or damage is detected.

  • What are common issues with the TurboChef TBC102012 Interlock Switch?

    • Failure to activate due to misalignment.
    • Electrical contact wear causing intermittent operation.
    • Loose or damaged terminal connections.
    • Mechanical sticking from debris buildup.
    • Broken actuator tab affecting safety interlock.
    • Arcing or overheating under load.
