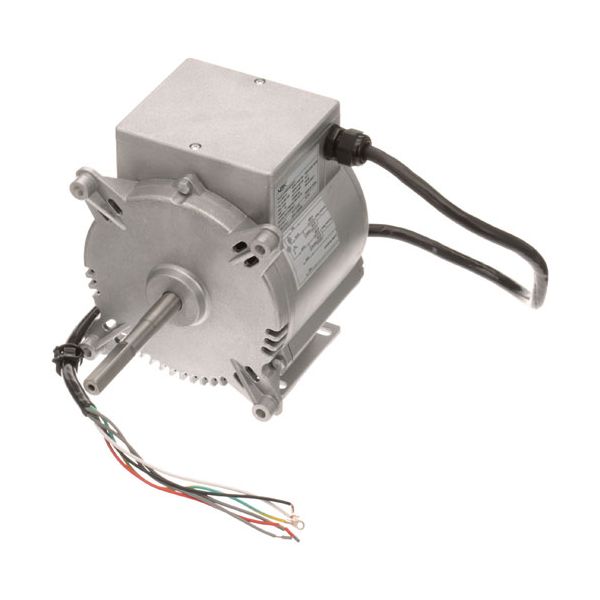

Blodgett 32244 Motor, 2-Speed, 208-240V , 1/3Hp, 1725/1140

Rating:

10 Reviews Add Your Review

Special Price $399.56 Regular Price $943.26

In stock

SKU

32244

Categories: Electrical & Hardware, Motors & Pumps, Shop by manufacturers

Manufacturer:

Blodgett

The Blodgett 32244 1/3 horsepower 2-speed motor which is suitable for models like the EZ/EFE, FA/GZL, Mark V and Zephaire E comes with a power input of 208-240V, 50/60 Hz, and has a reliable performance at 1725/1140 RPM. It also boasts of a shaft size of 5/8” x 3-1/4”, CW rotation which means the motor faces the shaft and J56Z frame. This is the older model of the motor and while it looks slightly different from the current motor it performs the same duty, Installation instructions are included.

Dimensions

Length: 14 In
Width: 9 In
Height: 8 In
Weight: 4.928 lbs

Product Notes

**Old Style** [ 200-230V, ][ 50/60 Hz ] [ 1/3Hp ] [1P]
[2 Speed 1725/1140 RPM] [2.8-2.9/1.3-1.4A] [J56Z Frame]
[ Rotation Cw (Facing Shaft Of Motor )]
[ 5/8 X 3-1/4 Shaft ] [ 8-3/4 X 6-3/8 Mtg,Plate ]
////Blodgett Changed Motor Style - Different Than Original
But Functions The Same. Includes Install Instructions////
**New Style** [ 208-240 ] [ 60 Hz ] [ 1/2 Hp ] [ 1P ]
[2 Speed 1710/1120 RPM] [2.7/1.8 A] [Rotation Cw (Looking
From Back Of Motor)] [ 5/8 X 3-1/4 Shaft With Two Flats ]
Blodgett Blower Wheel 9-3/4 Dia. # 26-1328 Or
Blodgett Blower Wheel 10" # 26-4052
Blodgett: Oven Ez/Efe, Fa/Gzl, Mark V, Zephaire E

Details

Controls and drives airflow circulation within Blodgett convection ovens by converting electrical energy into mechanical rotation for the blower assembly. The Blodgett 32244 Blower Motor Kit provides the rotational force required to operate the blower wheel and circulate heated air throughout the cooking chamber. With a 1/3HP motor, 2-speed configuration, and 208-240V electrical rating, it supports the airflow requirements of ovens designed for this motor arrangement. Consistent motor operation helps maintain continuous air movement and supports the convection heating process during cooking cycles. Verify the equipment model number, part number, motor rating, voltage, and speed configuration before selecting a replacement.

Air Circulation:
Drives the blower wheel to circulate heated air throughout the oven cavity. The motor's rotational output maintains continuous airflow around the cooking chamber, helping distribute heat across the cooking area. The 2-speed configuration allows the blower system to operate at different airflow levels according to the oven's control requirements.

Two-Speed Operation:
Provides two selectable motor speeds to support different airflow requirements during oven operation. The dual-speed configuration allows the blower assembly to adjust its rotational output according to the selected operating cycle.

Replacement Guidelines:
Replace the Convection Oven Blower Motor Kit if the motor fails to start, develops abnormal noise, operates inconsistently, or shows physical or electrical damage. The part number 32244, 1/3 HP rating, 2-speed configuration, and 208-240V voltage rating should be verified before replacement to ensure the correct blower motor kit is selected. Replace the motor kit if deterioration affects motor rotation, speed operation, electrical connection, airflow, or normal oven operation

Common Failure Symptoms:

Reduced airflow inside the cooking chamber.
Blower wheel operating slowly or intermittently.
Unusual motor noise or vibration.
Inconsistent air circulation.
Motor failing to start.
Loss of one or more operating speeds.

Equipment Compatibility:
The Blodgett 32244 Blower Motor Kit is designed for Blodgett convection ovens requiring this specific motor configuration. Verify the equipment model number, manufacturer part number, motor specifications, and electrical requirements before purchasing.

Technical Specifications:
Brand: Blodgett
Part Number: 32244
Component Name: Blower Motor Kit
Appliance Type: Convection Oven
Motor Power: 1/3HP
Speed Configuration: 2-Speed
Voltage Rating: 208-240V

Replaces Parts

BLODGETT:

-15400, -32244, 15400, 32244, BL32244

Reviews 10

Write Your Own Review

FAQS

Customer Questions

What does a blower assembly include?

A blower assembly typically includes a motor, a fan or impeller,, and the housing or casing that surrounds them.

Why would I need to replace a blower assembly?

You might need to replace a blower assembly due to wear and tear over time, motor or component failures, decreased performance, or if it becomes inefficient or noisy beyond repair.

How can I contact your customer support?

To contact our customer support team Call us at 866 963-0907 or you can also mail us at contact@partsfe.com.

What maintenance is required for the Blodgett 32244 Motor?

Ensure the motor shaft spins freely and lubricate bearings with the recommended oil if needed. Confirm electrical connections are tight and insulation is intact. Monitor for unusual vibration or noise. Always disconnect power before servicing to prevent electrical hazards.

What are common issues with the Blodgett 32244 Motor?

Motor not starting on either speed.
Overheating during use.
Unusual vibration noise.
Reduced airflow from the fan attachment.

What is the Blodgett 32244 convection oven blower motor kit used for?

The Blodgett 32244 drives the blower assembly in a compatible convection oven, providing the mechanical movement needed for the oven's air-circulation system.
